Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

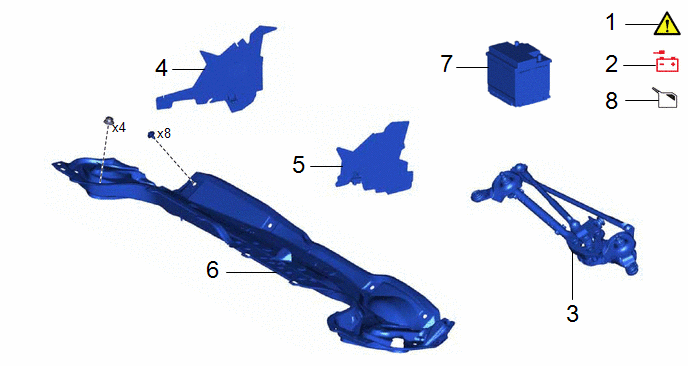

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

PRECAUTION

-

-

-

2

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

3

WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

-

-

-

-

4

NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL

55737B

-

-

-

5

WATER GUARD PLATE

55734D

-

-

-

6

OUTER COWL TOP PANEL SUB-ASSEMBLY

55701J

-

-

-

7

AUXILIARY BATTERY

-

-

-

-

8

DRAIN BRAKE FLUID

-

-

-

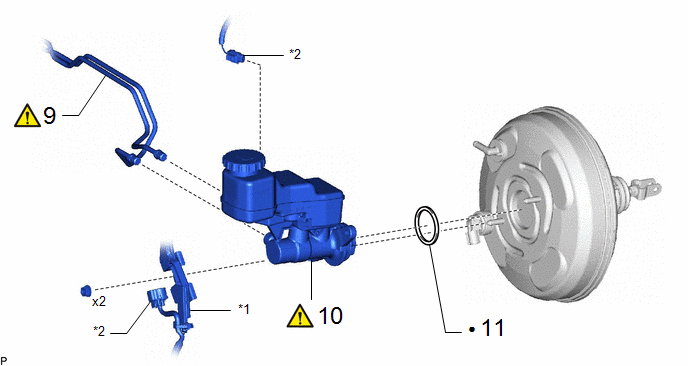

Procedure

Part Name Code

9

BRAKE LINE

-

-

-

10

BRAKE MASTER CYLINDER SUB-ASSEMBLY

47201

-

-

11

BRAKE MASTER CYLINDER O-RING

-

-

-

-

*1

WIRE HARNESS

*2

CONNECTOR

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during brake master cylinder sub-assembly removal/installation are shown below.

NOTICE:

Make sure to release vacuum from the brake booster assembly before removing the brake master cylinder sub-assembly from the brake booster assembly.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Front camera system

    Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.

    Stop and start system

    Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click here

2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

3. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Click here

4. REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL

Click here

5. REMOVE WATER GUARD PLATE

Click here

6. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

Click here

7. REMOVE AUXILIARY BATTERY

Click here

8. DRAIN BRAKE FLUID

NOTICE:

If brake fluid leaks onto any painted surface, immediately wash it off.

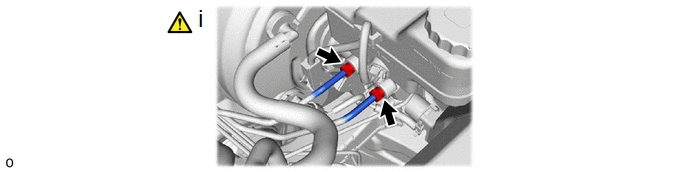

9. DISCONNECT BRAKE LINE

(1) Using a union nut wrench, disconnect the 2 brake lines from the brake master cylinder sub-assembly.

NOTICE:

  • Do not damage or deform the brake lines.
  • Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.

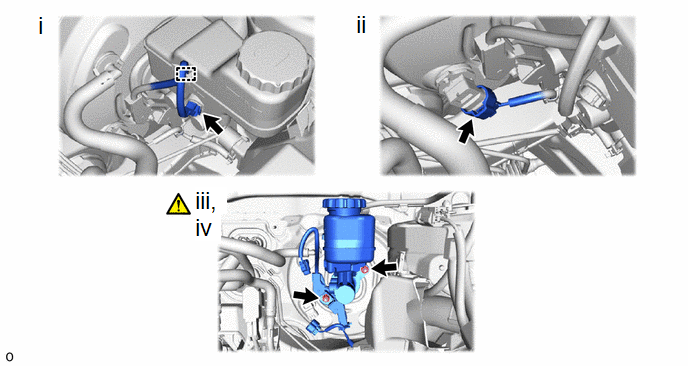

10. REMOVE BRAKE MASTER CYLINDER SUB-ASSEMBLY

(1) Disengage the clamp and disconnect the connector from the brake master cylinder reservoir assembly.

(2) Disconnect the connector from the vacuum sensor assembly.

(3) Remove the 2 nuts and separate the wire harness.

(4) Remove the brake master cylinder sub-assembly from the brake booster assembly.

NOTICE:

  • The brake master cylinder sub-assembly requires careful handling. Do not drop or subject the brake master cylinder sub-assembly to any impact. Do not reuse a brake master cylinder sub-assembly that has been dropped.
  • Do not hold the brake master cylinder sub-assembly by the master cylinder piston. Hold the brake master cylinder sub-assembly by its body or its reservoir when carrying it.
  • Do not pull out the master cylinder piston.
  • Do not strike or pinch the master cylinder piston, or cause any damage to the master cylinder piston by any other means.
  • When installing the brake master cylinder sub-assembly to the brake booster assembly, or when removing the brake master cylinder sub-assembly from the brake booster assembly, make sure that the brake master cylinder sub-assembly is kept horizontal or with its tip facing downward (the master cylinder piston is facing upward) to prevent the master cylinder piston from falling out.
  • Do not allow any foreign matter to contaminate the master cylinder piston. If any foreign matter gets on the master cylinder piston, remove it by using a piece of new and dry cloth. Do not use water or detergent. Then apply an even layer of lithium soap base glycol grease around the circumference (sliding part) of the master cylinder piston.
  • Do not use any other types of grease.
  • Make sure to release vacuum from the brake booster assembly before removing the brake master cylinder sub-assembly from the brake booster assembly.

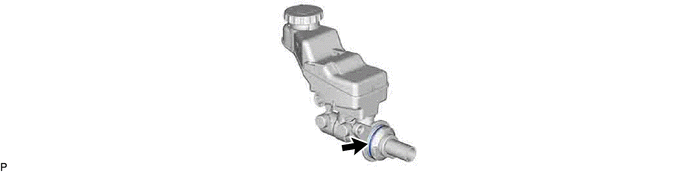

11. REMOVE BRAKE MASTER CYLINDER O-RING
