Toyota Corolla Cross: Disassembly
DISASSEMBLY
CAUTION / NOTICE / HINT

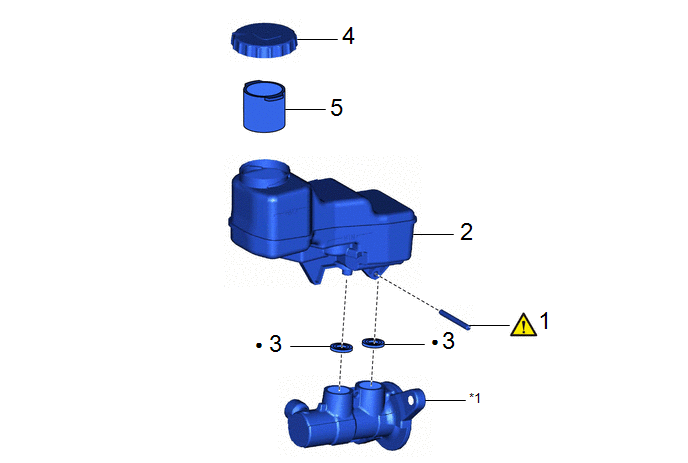

COMPONENTS (DISASSEMBLY)
|
Procedure |
Part Name Code |
.png) |
.png) |
.png) |
|
|---|---|---|---|---|---|
|
1 |
BRAKE MASTER CYLINDER STRAIGHT PIN |
- |
|
- |
- |
|
2 |
BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY |
47220D |
- |
- |
- |
|
3 |
MASTER CYLINDER RESERVOIR GROMMET |
- |
- |
- |
- |
|
4 |
BRAKE MASTER CYLINDER RESERVOIR FILLER CAP |
- |
- |
- |
- |
|
5 |
BRAKE MASTER CYLINDER RESERVOIR STRAINER |
- |
- |
- |
- |
.gif)
|
*1 |
BRAKE MASTER CYLINDER SUB-ASSEMBLY |
- |
- |
|
● |
Non-reusable part |
- |
- |
PROCEDURE
1. REMOVE BRAKE MASTER CYLINDER STRAIGHT PIN
(1) Secure the brake master cylinder sub-assembly in a vise.
NOTICE:
Place aluminum plates on the vise to prevent damage to the brake master cylinder sub-assembly.

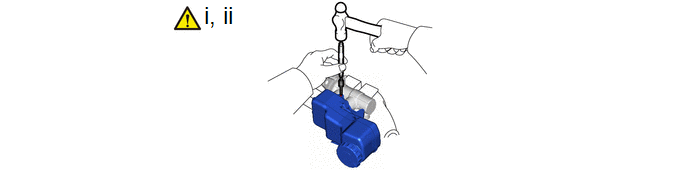

(2) Using a 5 mm pin punch and a hammer, tap out the brake master cylinder straight pin from the brake master cylinder sub-assembly.
NOTICE:
Do not drop the brake master cylinder reservoir assembly.

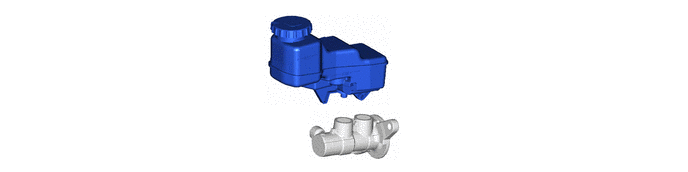

2. REMOVE BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

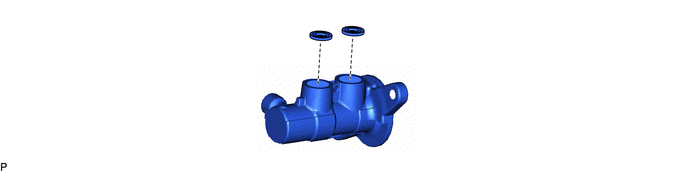

3. REMOVE MASTER CYLINDER RESERVOIR GROMMET

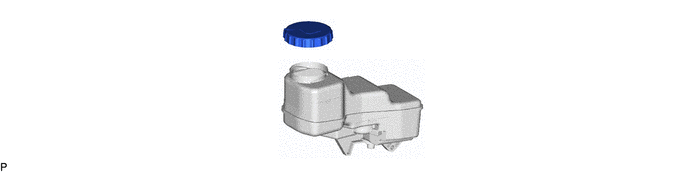

4. REMOVE BRAKE MASTER CYLINDER RESERVOIR FILLER CAP
5. REMOVE BRAKE MASTER CYLINDER RESERVOIR STRAINER
