Toyota Corolla Cross: Reassembly

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Seat / Rear Seat Assembly / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

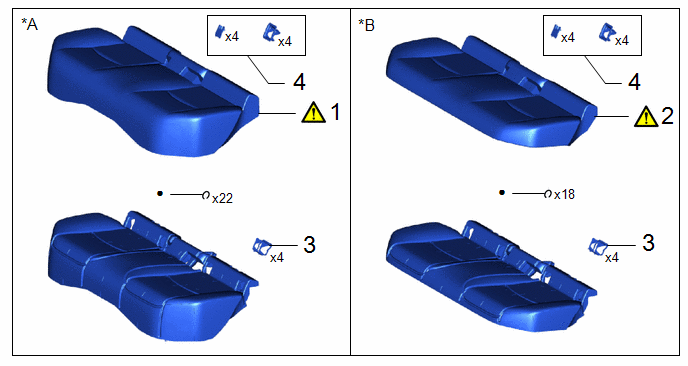

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

BENCH TYPE REAR SEAT CUSHION COVER

71075B

-

-

2

BENCH TYPE REAR SEAT CUSHION COVER

71075B

-

-

3

CHILD RESTRAINT SEAT GUIDE CUP

73735A

-

-

-

4

CHILD RESTRAINT SEAT TETHER ANCHOR COVER

73731

-

-

-

*A

for Gasoline Model

*B

for HEV Model

●

Non-reusable part

-

-

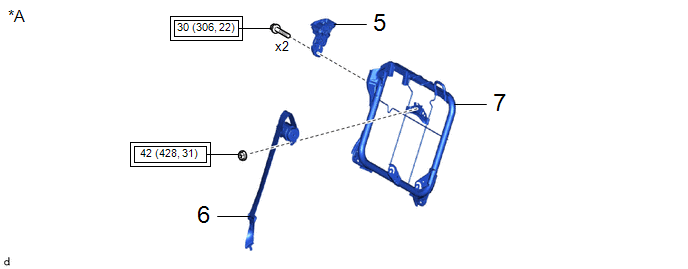

Procedure

Part Name Code

5

REAR SEATBACK LOCK ASSEMBLY RH

72630C

-

-

-

6

REAR CENTER SEAT OUTER BELT ASSEMBLY

73350C

-

-

-

7

REAR SEATBACK FRAME SUB-ASSEMBLY RH

71017

-

-

-

*A

for RH Side

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

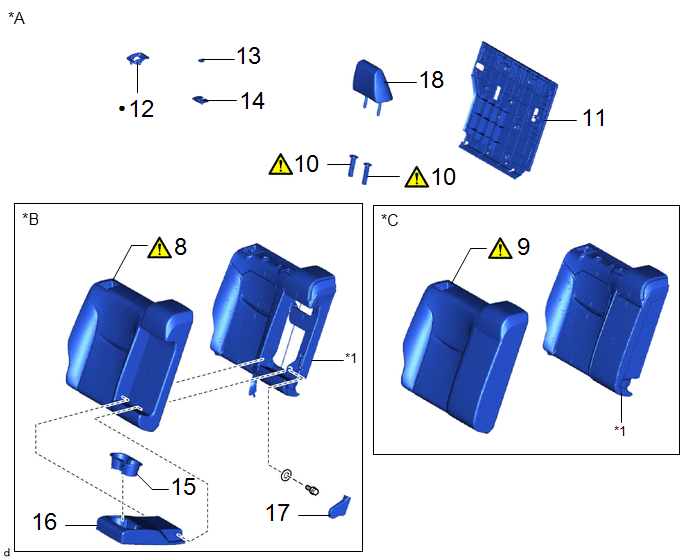

Procedure

Part Name Code

8

SEPARATE TYPE REAR SEATBACK COVER

71077S

-

-

9

SEPARATE TYPE REAR SEATBACK COVER

71077S

-

-

10

REAR SEAT HEADREST SUPPORT

71931A

-

-

11

REAR SEATBACK BOARD SUB-ASSEMBLY RH

71701C

-

-

-

12

REAR SEATBACK LOCK UPPER BEZEL

72667A

-

-

-

13

REAR SEAT SHOULDER BELT COVER

73373

-

-

-

14

SEAT BELT ANCHOR COVER CAP

73178A

-

-

-

15

REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY

72806D

-

-

-

16

REAR SEAT CENTER ARMREST ASSEMBLY

72830

-

-

-

17

CENTER ARMREST HINGE COVER

72868B

-

-

-

18

REAR SEAT HEADREST ASSEMBLY

71940A

-

-

-

*A

for RH Side

*B

w/ Armrest

*C

w/o Armrest

-

-

*1

SEPARATE TYPE REAR SEATBACK PAD

-

-

●

Non-reusable part

-

-

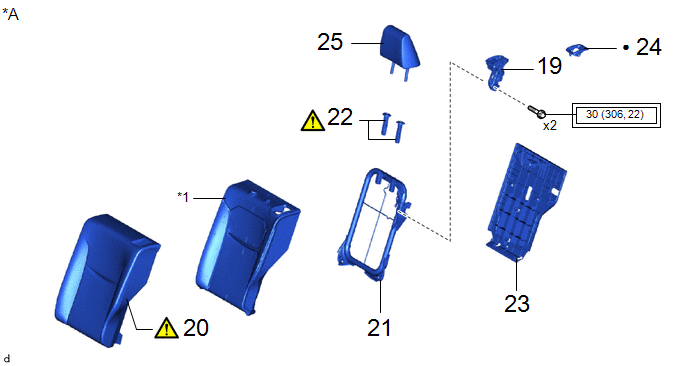

Procedure

Part Name Code

19

REAR SEATBACK LOCK ASSEMBLY LH

72640A

-

-

-

20

SEPARATE TYPE REAR SEATBACK COVER

71078S

-

-

21

REAR SEATBACK FRAME SUB-ASSEMBLY LH

71018

-

-

-

22

REAR SEAT HEADREST SUPPORT

71931A

-

-

23

REAR SEATBACK BOARD SUB-ASSEMBLY LH

71702C

-

-

-

24

REAR SEATBACK LOCK UPPER BEZEL

72667B

-

-

-

25

REAR SEAT HEADREST ASSEMBLY

71940A

-

-

-

*A

for LH Side

-

-

*1

SEPARATE TYPE REAR SEATBACK PAD

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

CAUTION / NOTICE / HINT

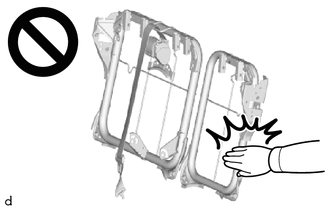

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

PROCEDURE

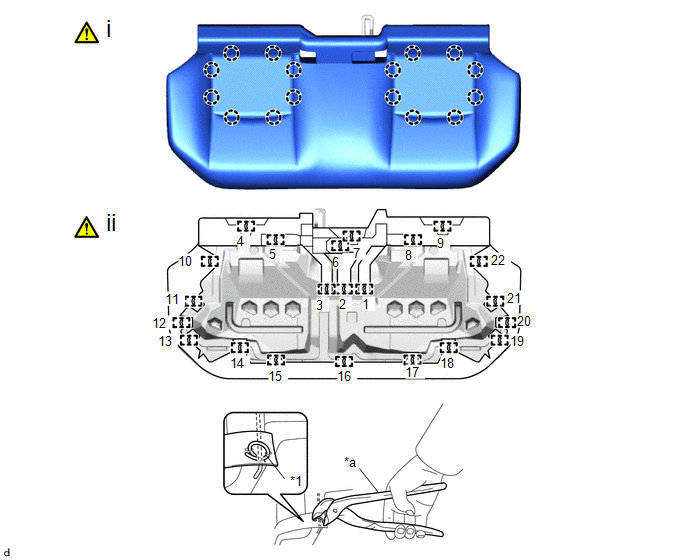

1. INSTALL BENCH TYPE REAR SEAT CUSHION COVER (for Gasoline Model)

NOTICE:

When installing a bench type rear seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.

Click here

*1

Hog Ring

-

-

*a

Hog Ring Pliers

-

-

(1) Engage the claws to install the bench type rear seat cushion cover to the rear seat cushion pad sub-assembly.

NOTICE:

Be careful not to damage the bench type rear seat cushion cover.

(2) Using hog ring pliers, install the bench type rear seat cushion cover to the bench type rear seat cushion pad with 22 new hog rings in the order shown in the illustration.

NOTICE:

  • Be careful not to damage the bench type rear seat cushion cover.
  • When installing the hog rings, take care to minimize wrinkles as much as possible.
  • Align the center of the hog ring installation area of the bench type rear seat cushion cover with the center of the bench type rear seat cushion pad so that no wrinkles appear, and securely tighten the hog rings as shown in the illustration.

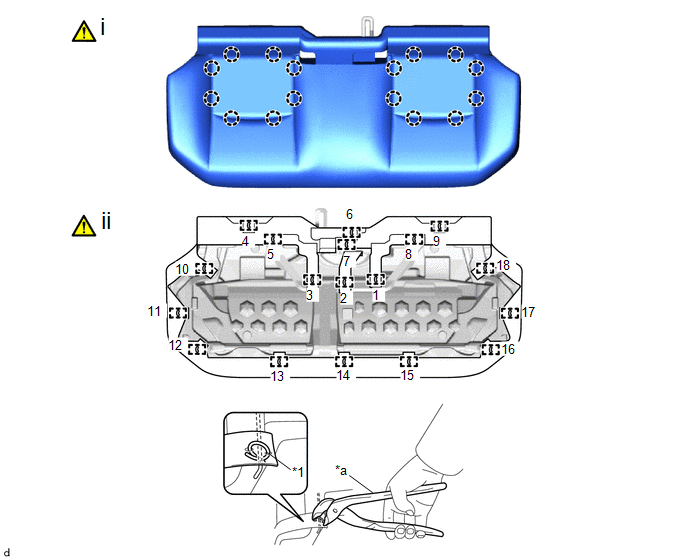

2. INSTALL BENCH TYPE REAR SEAT CUSHION COVER (for HEV Model)

NOTICE:

When installing a bench type rear seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.

Click here

*1

Hog Ring

-

-

*a

Hog Ring Pliers

-

-

(1) Engage the claws to install the bench type rear seat cushion cover to the rear seat cushion pad sub-assembly.

NOTICE:

Be careful not to damage the bench type rear seat cushion cover.

(2) Using hog ring pliers, install the bench type rear seat cushion cover to the bench type rear seat cushion pad with 18 new hog rings in the order shown in the illustration.

NOTICE:

  • Be careful not to damage the bench type rear seat cushion cover.
  • When installing the hog rings, take care to minimize wrinkles as much as possible.
  • Align the center of the hog ring installation area of the bench type rear seat cushion cover with the center of the bench type rear seat cushion pad so that no wrinkles appear, and securely tighten the hog rings as shown in the illustration.

3. INSTALL CHILD RESTRAINT SEAT GUIDE CUP

4. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR COVER

5. INSTALL REAR SEATBACK LOCK ASSEMBLY RH (for RH Side)

Torque:

30 N·m {306 kgf·cm, 22 ft·lbf}

6. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY (for RH Side)

Click here

7. INSTALL REAR SEATBACK FRAME SUB-ASSEMBLY RH (for RH Side)

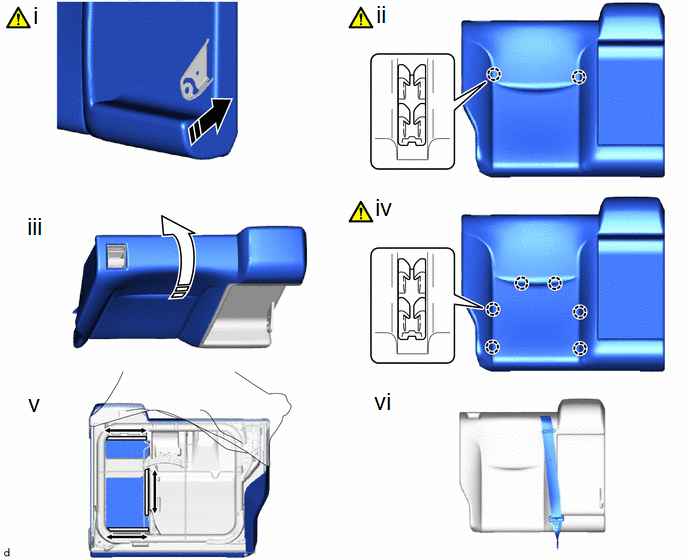

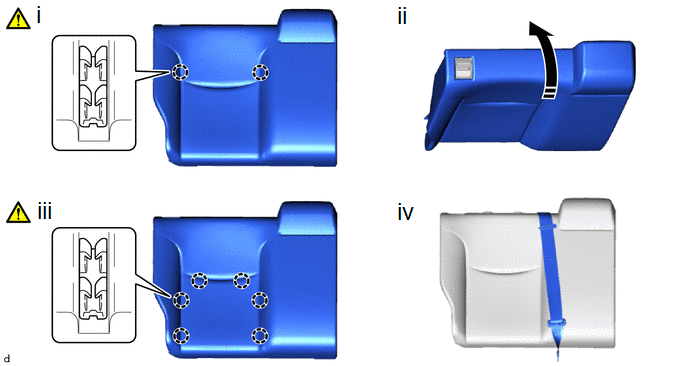

8. INSTALL SEPARATE TYPE REAR SEATBACK COVER (for RH Side w/ Armrest)

NOTICE:

When installing a separate type rear seatback cover, refer to Precaution in order to prevent wrinkles from forming.

Click here

Install in this Direction (1)

Install in this Direction (2)

(1) Temporarily install the separate type rear seatback cover on the armrest hinge side as shown in the illustration.

NOTICE:

Be careful not to damage the separate type rear seatback cover.

(2) Engage the claws.

NOTICE:

Be careful not to damage the separate type rear seatback cover.

(3) Temporarily install the separate type rear seatback cover on the seatback lock side as shown in the illustration.

(4) Engage the claws to install the separate type rear seatback cover to the separate type rear seatback pad.

NOTICE:

Be careful not to damage the separate type rear seatback cover.

(5) Engage the hooks.

(6) Pass the rear center seat outer belt assembly through the hole of separate type rear seatback cover with pad.

9. INSTALL SEPARATE TYPE REAR SEATBACK COVER (for RH Side w/o Armrest)

NOTICE:

When installing a separate type rear seatback cover, refer to Precaution in order to prevent wrinkles from forming.

Click here

Install in this Direction (1)

Install in this Direction (2)

(1) Engage the claws.

NOTICE:

Be careful not to damage the separate type rear seatback cover.

(2) Temporarily install the separate type rear seatback cover on the seatback lock side as shown in the illustration.

(3) Engage the claws to install the separate type rear seatback cover to the separate type rear seatback pad.

NOTICE:

Be careful not to damage the separate type rear seatback cover.

(4) Pass the rear center seat outer belt assembly through the hole of separate type rear seatback cover with pad.

10. INSTALL REAR SEAT HEADREST SUPPORT (for RH Side)

11. INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY RH (for RH Side)

12. INSTALL REAR SEATBACK LOCK UPPER BEZEL (for RH Side)

13. INSTALL REAR SEAT SHOULDER BELT COVER (for RH Side)

14. INSTALL SEAT BELT ANCHOR COVER CAP (for RH Side)

15. INSTALL REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY (for RH Side w/ Armrest)

16. INSTALL REAR SEAT CENTER ARMREST ASSEMBLY (for RH Side w/ Armrest)

Torque:

21 N·m {214 kgf·cm, 15 ft·lbf}

17. INSTALL CENTER ARMREST HINGE COVER (for RH Side w/ Armrest)

18. INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side)

19. INSTALL REAR SEATBACK LOCK ASSEMBLY LH (for LH Side)

Torque:

30 N·m {306 kgf·cm, 22 ft·lbf}

20. INSTALL SEPARATE TYPE REAR SEATBACK COVER (for LH Side)

NOTICE:

  • When installing a separate type rear seatback cover, refer to Precaution in order to prevent wrinkles from forming.

    Click here

  • Be careful not to damage the separate type rear seatback cover.

21. INSTALL REAR SEATBACK FRAME SUB-ASSEMBLY LH (for LH Side)

22. INSTALL REAR SEAT HEADREST SUPPORT (for LH Side)

23. INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY LH (for LH Side)

24. INSTALL REAR SEATBACK LOCK UPPER BEZEL (for LH Side)

25. INSTALL REAR SEAT HEADREST ASSEMBLY (for LH Side)
