Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

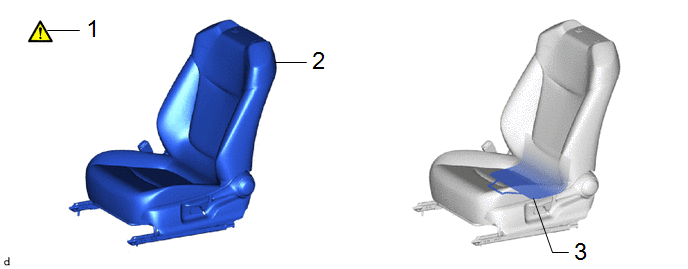

Procedure

Part Name Code

1

PRECAUTION

-

-

-

2

FRONT SEAT ASSEMBLY

-

-

-

-

3

SEPARATE TYPE FRONT SEATBACK COVER

71073S

-

-

-

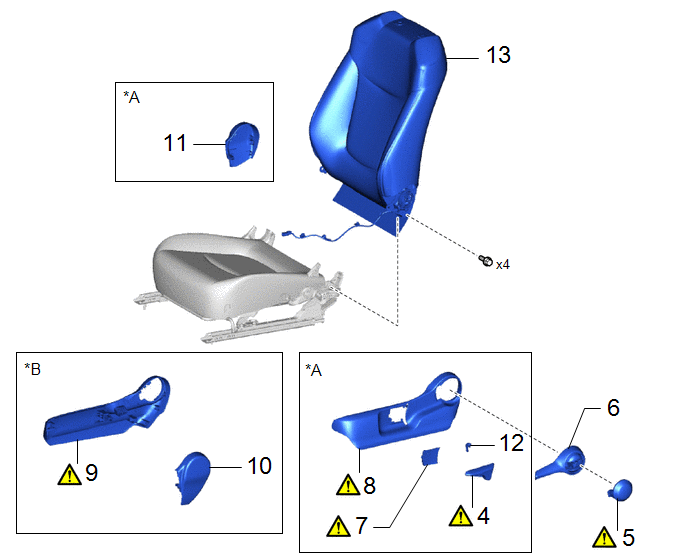

Procedure

Part Name Code

4

VERTICAL ADJUSTING HANDLE

72495

-

-

5

RECLINING HINGE COVER

72552B

-

-

6

RECLINING ADJUSTER RELEASE HANDLE

72526

-

-

-

7

SEAT ADJUSTER COVER CAP

71849

-

-

8

FRONT SEAT CUSHION SHIELD LH

71812D

-

-

9

FRONT SEAT CUSHION SHIELD RH

71811D

-

-

10

FRONT SEAT INNER CUSHION SHIELD LH

71862

-

-

-

11

FRONT SEAT INNER CUSHION SHIELD RH

71861

-

-

-

12

VERTICAL ADJUSTER BRACKET COVER

72498B

-

-

-

13

SEPARATE TYPE FRONT SEATBACK ASSEMBLY

-

-

-

-

*A

for Driver Side

*B

for Front Passenger Side

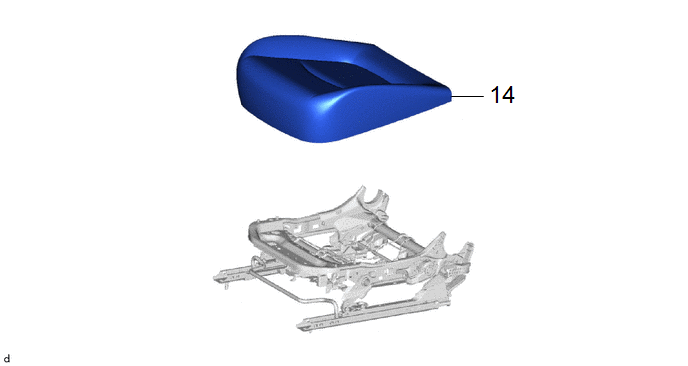

Procedure

Part Name Code

14

SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

-

-

-

-

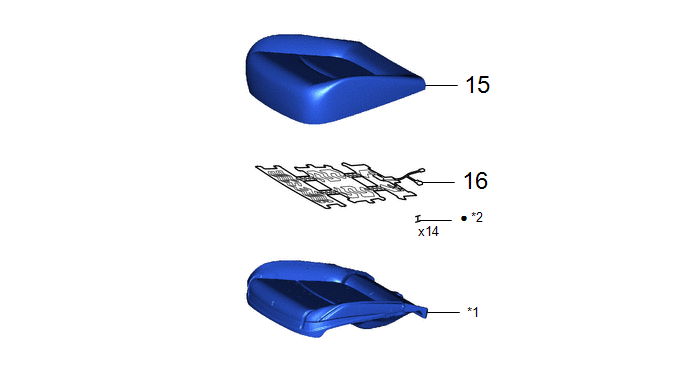

Procedure

Part Name Code

15

SEPARATE TYPE FRONT SEAT CUSHION COVER

71071S

-

-

-

16

FRONT SEAT CUSHION HEATER ASSEMBLY

87510N

-

-

-

*1

SEPARATE TYPE FRONT SEAT CUSHION PAD

*2

TAG PIN

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front seat cushion heater assembly removal/installation are shown below.

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:

  • When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
    • Learning completes when vehicle is driven

      Effect / Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      *A: for Gasoline Model

      Front Camera System

      Drivre the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more.

      Stop and start system *A

      Drive the vehicle until stop and start control is permitted (appoximately 5 to 60 minutes)

    • Learning completes when vehicle is operated normally

      Effect / Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      Power door lock control system

      • Back door opener

      Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

      Power back door system

      Fully close the back door by hand.

      HINT:

      Initialization is not necessary if the above procedures are performed while the back door is closed.

      Air conditioning system

      After the ignition switch is turned to ON, the servo motor standard position is recognized.

      -

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. PRECAUTION

CAUTION:

Be sure to read Precaution thoroughly before servicing.

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click here

2. REMOVE FRONT SEAT ASSEMBLY

Click here

3. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

Click here

4. REMOVE VERTICAL ADJUSTING HANDLE

Click here

5. REMOVE RECLINING HINGE COVER

Click here

6. REMOVE RECLINING ADJUSTER RELEASE HANDLE

Click here

7. REMOVE SEAT ADJUSTER COVER CAP

Click here

8. REMOVE FRONT SEAT CUSHION SHIELD (for Driver Side)

Click here

9. REMOVE FRONT SEAT CUSHION SHIELD (for Front Passenger Side)

Click here

10. REMOVE FRONT SEAT INNER CUSHION SHIELD (for Driver Side)

Click here

11. REMOVE FRONT SEAT INNER CUSHION SHIELD (for Front Passenger Side)

Click here

12. REMOVE VERTICAL ADJUSTER BRACKET COVER

Click here

13. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

Click here

14. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

Click here

15. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

Click here

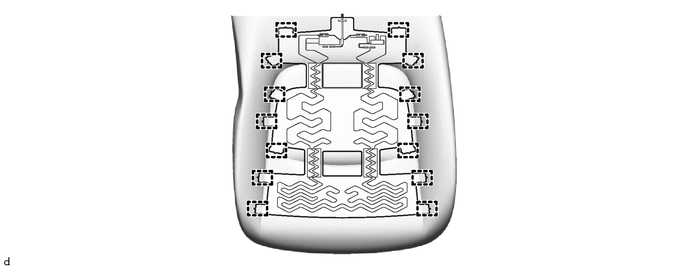

16. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY
