Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

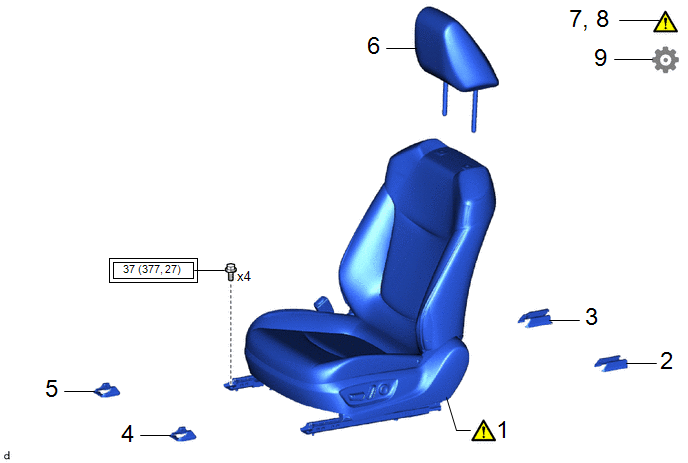

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

FRONT SEAT ASSEMBLY

-

-

-

2

SEAT TRACK OUTER COVER

72138

-

-

-

3

SEAT TRACK BRACKET INNER COVER

72158

-

-

-

4

FRONT SEAT TRACK BRACKET OUTER COVER

72124

-

-

-

5

FRONT SEAT TRACK BRACKET INNER COVER

72128A

-

-

-

6

FRONT SEAT HEADREST ASSEMBLY

71910A

-

-

-

7

INSPECT FRONT SEAT ASSEMBLY

-

-

-

8

INSPECT SRS WARNING LIGHT

-

-

-

9

INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

-

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

CAUTION / NOTICE / HINT

CAUTION:

  • Be sure to read Precaution thoroughly before servicing.

    Click here

  • Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:

Power seat is available only on the driver side.

PROCEDURE

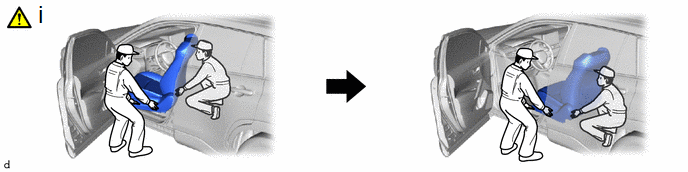

1. INSTALL FRONT SEAT ASSEMBLY

(1) Place the front seat assembly in the cabin.

NOTICE:

  • 2 or more people are required when reinstalling the front seat assembly into the vehicle.

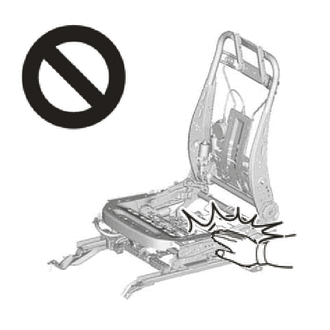

  • Protect the front seat leg.
  • Be careful not to damage the front seat assembly, body exterior or body interior.

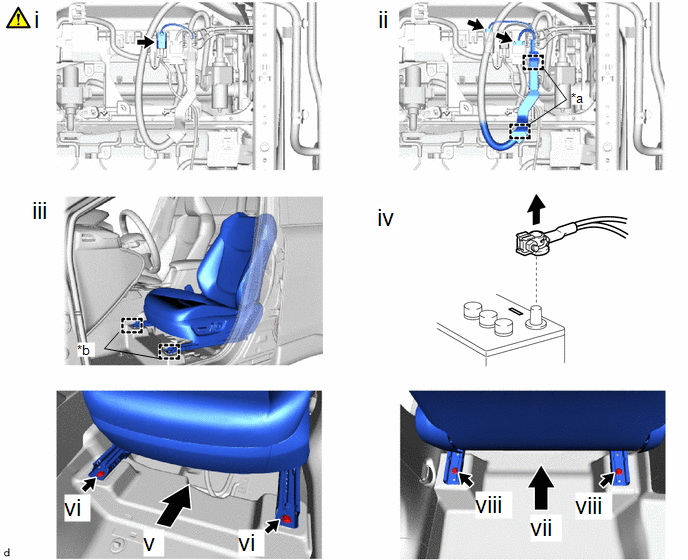

*a

Clamp

*b

Location Pin

(1) Connect the front seat airbag assembly connector under the front seat assembly.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click here

(2) Engage the clamps and connect the 2 connectors under the front seat assembly.

(3) Insert the 2 location pins of the front seat assembly through the 2 body holes, place the front seat assembly and make sure that the inner and outer seat tracks are locked securely.

(4) Connect the cable to the negative (-) auxiliary battery terminal.

  • for Gasoline Model

    Click here

  • for HEV Model

    Click here

(5) Operate the slide and vertical power seat switch knob to move the front seat assembly to the rearmost position.

(6) Temporarily install the 2 bolts on the front side of the front seat assembly.

(7) Operate the slide and vertical power seat switch knob to move the front seat assembly to the frontmost position.

(8) Temporarily install the 2 bolts on the rear side of the front seat assembly.

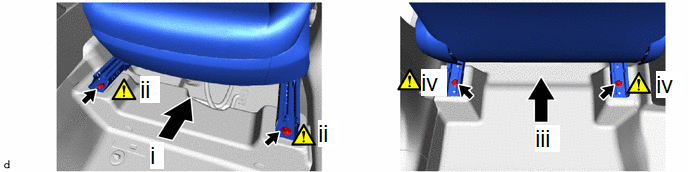

(1) Operate the slide and vertical power seat switch knob to move the front seat assembly to the rearmost position.

(2) Using a T50 "TORX" socket wrench, tighten the 2 bolts on the front side of the front seat assembly in the order shown in the illustration.

Torque:

37 N·m {377 kgf·cm, 27 ft·lbf}

(3) Operate the slide and vertical power seat switch knob to move the front seat assembly to the frontmost position.

(4) Using a T50 "TORX" socket wrench, tighten the 2 bolts on the rear side of the front seat assembly in the order shown in the illustration.

Torque:

37 N·m {377 kgf·cm, 27 ft·lbf}

2. INSTALL SEAT TRACK OUTER COVER

3. INSTALL SEAT TRACK BRACKET INNER COVER

4. INSTALL FRONT SEAT TRACK BRACKET OUTER COVER

5. INSTALL FRONT SEAT TRACK BRACKET INNER COVER

6. INSTALL FRONT SEAT HEADREST ASSEMBLY

7. INSPECT FRONT SEAT ASSEMBLY

Click here

8. INSPECT SRS WARNING LIGHT

Click here

9. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here
