Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Seat / Front Seat Assembly (for Manual Seat) / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

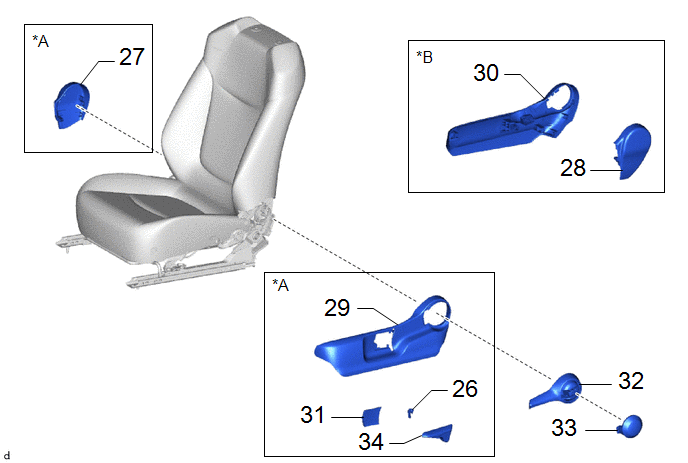

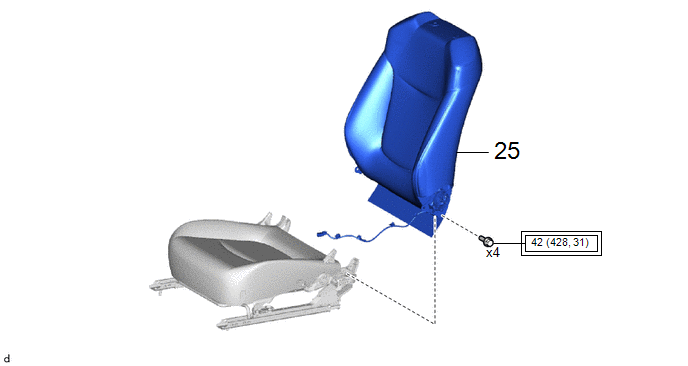

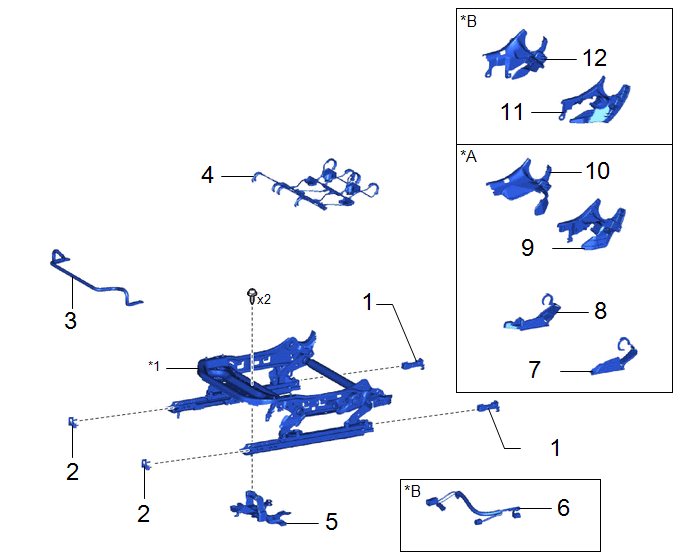

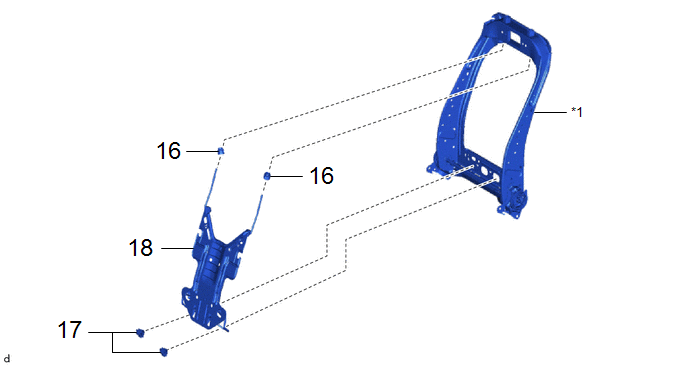

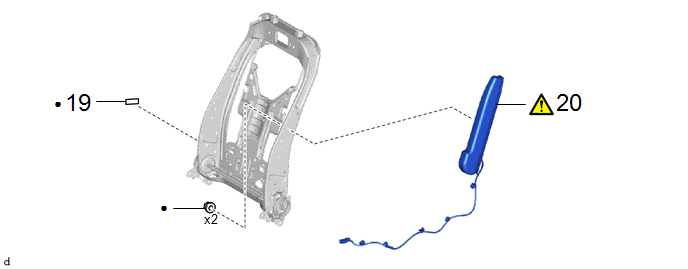

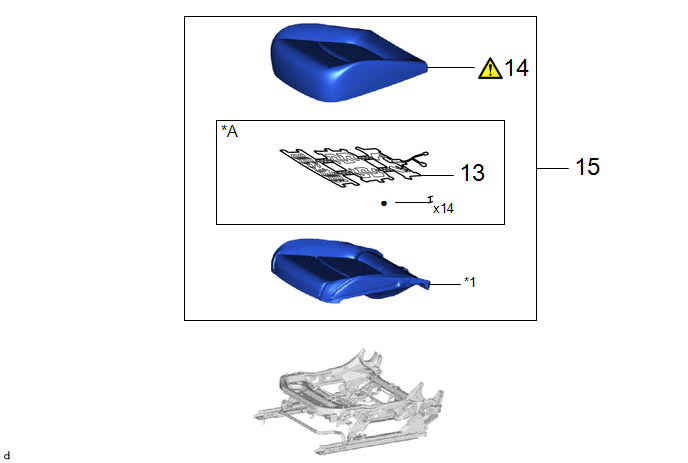

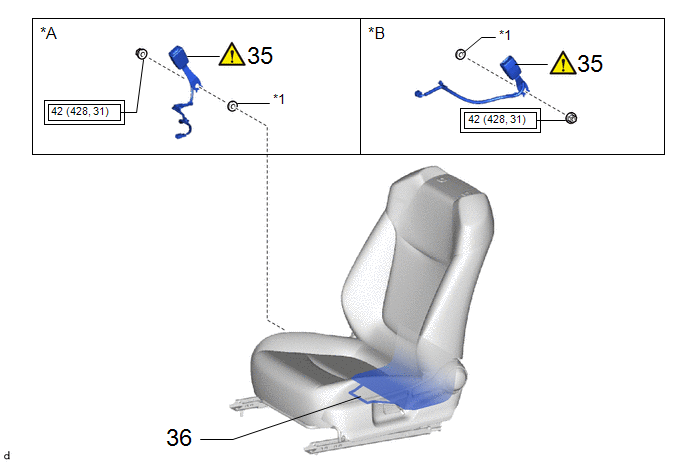

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

SEAT TRACK REAR UPPER COVER

72125V

-

-

-

2

SEAT TRACK UPPER RAIL COVER

72266

-

-

-

3

SEAT TRACK ADJUSTING HANDLE

72211

-

-

-

4

FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

71052A

-

-

-

5

FRONT SEAT CUSHION WIRE HARNESS HOLDER

7181B

-

-

-

6

FRONT SEAT WIRE

82191

-

-

-

7

FRONT SEAT LOWER CUSHION SHIELD LH

71874A

-

-

-

8

FRONT SEAT LOWER CUSHION SHIELD RH

71873U

-

-

-

9

SEAT RECLINING ADJUSTER INSIDE COVER LH

71876G

-

-

-

10

SEAT RECLINING ADJUSTER INSIDE COVER RH

71876F

-

-

-

11

RECLINING ADJUSTER INSIDE COVER LH

71876G

-

-

-

12

RECLINING ADJUSTER INSIDE COVER RH

71876F

-

-

-

*A

for Driver Side

*B

for Front Passenger Side

*1

FRONT SEAT ADJUSTER ASSEMBLY

-

-

Procedure

Part Name Code

13

FRONT SEATBACK HEATER ASSEMBLY

87510L

-

-

-

14

SEPARATE TYPE FRONT SEAT CUSHION COVER

71072S

-

-

15

SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

-

-

-

-

*A

w/ Heater

-

-

*1

SEPARATE TYPE FRONT SEAT CUSHION PAD

-

-

●

Non-reusable part

-

-

Procedure

Part Name Code

16

FRONT SEATBACK HOOK

71759B

-

-

-

17

FRONT SEATBACK EDGE PROTECTOR

71587

-

-

-

18

FRONT SEATBACK SPRING SUB-ASSEMBLY

71054S

-

-

-

*1

FRONT SEATBACK FRAME SUB-ASSEMBLY

-

-

Procedure

Part Name Code

19

SEATBACK FELT

79977N

-

-

-

20

FRONT SEAT AIRBAG ASSEMBLY

73920A

-

-

●

Non-reusable part

-

-

Procedure

Part Name Code

21

FRONT SEATBACK HEATER ASSEMBLY

-

-

-

-

22

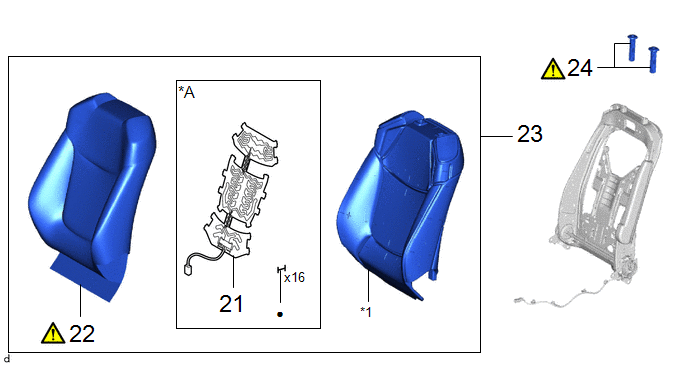

INSTALL SEPARATE TYPE FRONT SEATBACK COVER

71074S

-

-

23

SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

-

-

-

-

24

FRONT SEAT HEADREST SUPPORT

71931

-

-

*A

w/ Heater

-

-

*1

SEPARATE TYPE FRONT SEATBACK PAD

-

-

●

Non-reusable part

-

-

Procedure

Part Name Code

25

INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

-

-

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

Procedure

Part Name Code

26

VERTICAL ADJUSTER BRACKET COVER

72498

-

-

-

27

FRONT SEAT INNER CUSHION SHIELD

71862

-

-

-

28

FRONT SEAT INNER CUSHION SHIELD

71861

-

-

-

29

FRONT SEAT CUSHION SHIELD

71812D

-

-

-

30

FRONT SEAT CUSHION SHIELD

71811D

-

-

-

31

SEAT ADJUSTER COVER CAP

71849

-

-

-

32

RECLINING ADJUSTER RELEASE HANDLE

72526

-

-

-

33

RECLINING HINGE COVER

72552B

-

-

-

34

VERTICAL ADJUSTING HANDLE

72495

-

-

-

*A

for Driver Side

*B

for Front Passenger Side

Procedure

Part Name Code

35

FRONT SEAT INNER BELT ASSEMBLY

73240

-

-

36

CONNECT SEPARATE TYPE FRONT SEATBACK COVER

71074S

-

-

-

*A

for Driver Side

*B

for Front Passenger Side

*1

Front Seat Belt Anchor Plate

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:

  • Use the same procedure for the driver side and front passenger side.
  • The procedure listed below is for the driver side.

PROCEDURE

1. INSTALL SEAT TRACK REAR UPPER COVER

2. INSTALL SEAT TRACK UPPER RAIL COVER

3. INSTALL SEAT TRACK ADJUSTING HANDLE

4. INSTALL FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

5. INSTALL FRONT SEAT CUSHION WIRE HARNESS HOLDER

6. INSTALL FRONT SEAT WIRE (for Front Passenger Side)

7. INSTALL FRONT SEAT LOWER CUSHION SHIELD LH (for Driver Side)

8. INSTALL FRONT SEAT LOWER CUSHION SHIELD RH (for Driver Side)

9. INSTALL SEAT RECLINING ADJUSTER INSIDE COVER LH (for Driver Side)

10. INSTALL SEAT RECLINING ADJUSTER INSIDE COVER RH (for Driver Side)

11. INSTALL SEAT RECLINING ADJUSTER INSIDE COVER LH (for Front Passenger Side)

12. INSTALL SEAT RECLINING ADJUSTER INSIDE COVER RH (for Front Passenger Side)

13. INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY (w/ Heater)

14. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER

NOTICE:

  • When installing a separate type front seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.

    Click here

  • Be careful not to damage the separate type front seat cushion cover.

15. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

16. INSTALL FRONT SEATBACK HOOK

17. INSTALL FRONT SEATBACK EDGE PROTECTOR

18. INSTALL FRONT SEATBACK SPRING SUB-ASSEMBLY

19. INSTALL SEATBACK FELT

20. INSTALL FRONT SEAT AIRBAG ASSEMBLY

Click here

21. INSTALL FRONT SEATBACK HEATER ASSEMBLY (w/ Heater)

22. INSTALL SEPARATE TYPE FRONT SEATBACK COVER

NOTICE:

  • When installing a separate type front seatback cover, refer to Precaution in order to prevent wrinkles from forming.

    Click here

  • Be careful not to damage the separate type front seatback cover.

23. INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

24. INSTALL FRONT SEAT HEADREST SUPPORT

NOTICE:

  • When installing a separate type front seatback cover, refer to Precaution in order to prevent wrinkles from forming.

  • Be careful not to damage the separate type front seatback cover.

25. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

26. INSTALL VERTICAL ADJUSTER BRACKET COVER (for Driver Side)

27. INSTALL FRONT SEAT INNER CUSHION SHIELD (for Driver Side)

28. INSTALL FRONT SEAT INNER CUSHION SHIELD (for Front Passenger Side)

29. INSTALL FRONT SEAT CUSHION SHIELD (for Driver Side)

30. INSTALL FRONT SEAT CUSHION SHIELD (for Front Passenger Side)

31. INSTALL SEAT ADJUSTER COVER CAP (for Driver Side)

32. INSTALL RECLINING ADJUSTER RELEASE HANDLE

33. INSTALL RECLINING HINGE COVER

34. INSTALL VERTICAL ADJUSTING HANDLE (for Driver Side)

35. INSTALL FRONT SEAT INNER BELT ASSEMBLY

Click here

36. CONNECT SEPARATE TYPE FRONT SEATBACK COVER
