Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

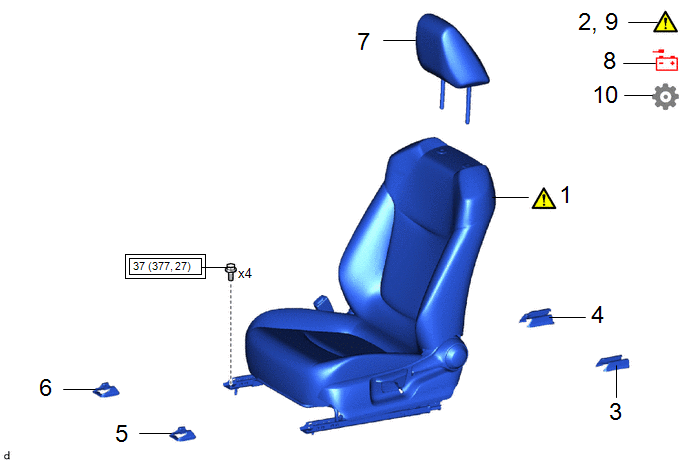

Procedure		Part Name Code
1	FRONT SEAT ASSEMBLY	-		-	-
2	INSPECT SEAT SLIDE ADJUSTER LOCK	-		-	-
3	SEAT TRACK OUTER COVER	72138	-	-	-
4	SEAT TRACK BRACKET INNER COVER	72158	-	-	-
5	FRONT SEAT TRACK BRACKET OUTER COVER	72124	-	-	-
6	FRONT SEAT TRACK BRACKET INNER COVER	72128A	-	-	-
7	FRONT SEAT HEADREST ASSEMBLY	71910A	-	-	-
8	CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
9	INSPECT SRS WARNING LIGHT	-		-	-
10	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

CAUTION / NOTICE / HINT

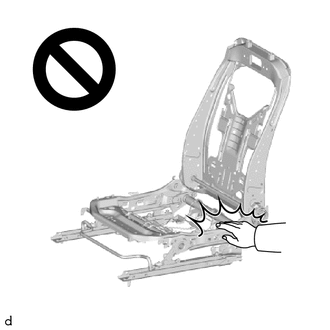

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:

• Use the same procedure for the driver side and front passenger side.
• The procedure listed below is for the driver side.

PROCEDURE

1. INSTALL FRONT SEAT ASSEMBLY

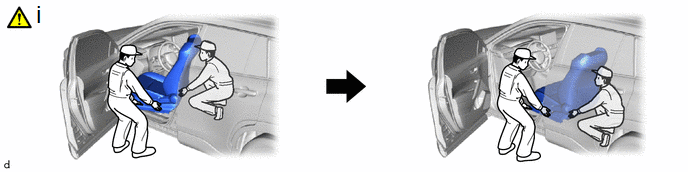

(1) Place the front seat assembly in the cabin as shown in the illustration.

NOTICE:

• 2 or more people are required when reinstalling the front seat assembly into the vehicle.
• Protect the front seat leg.
• Be careful not to damage the front seat assembly, body exterior or body interior.

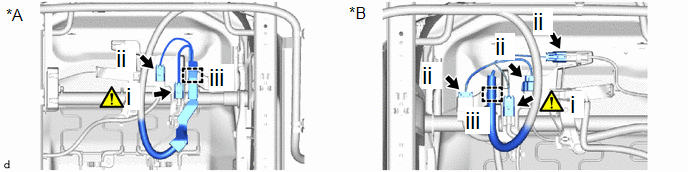

(1) Connect the front seat airbag assembly connector under the front seat assembly.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click here

(2) Connect the connector.

(3) Engage the clamp.

(1) Insert the 2 location pins of the front seat assembly through the 2 body holes, place the front seat assembly and make sure that the inner and outer seat tracks are locked securely.

(2) Operate the seat track adjusting handle to move the front seat assembly to the rearmost position.

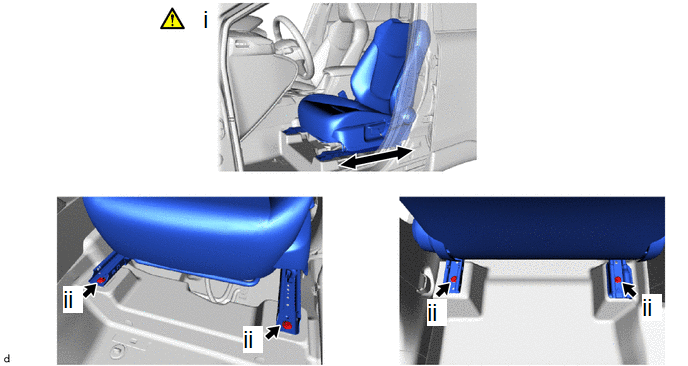

(3) Temporarily install the 2 bolts on the front side of the front seat assembly.

(4) Operate the seat track adjusting handle to move the front seat assembly to the frontmost position.

(5) Temporarily install the 2 bolts on the rear side of the front seat assembly.

(6) Operate the seat track adjusting handle to move the front seat assembly to the rearmost position.

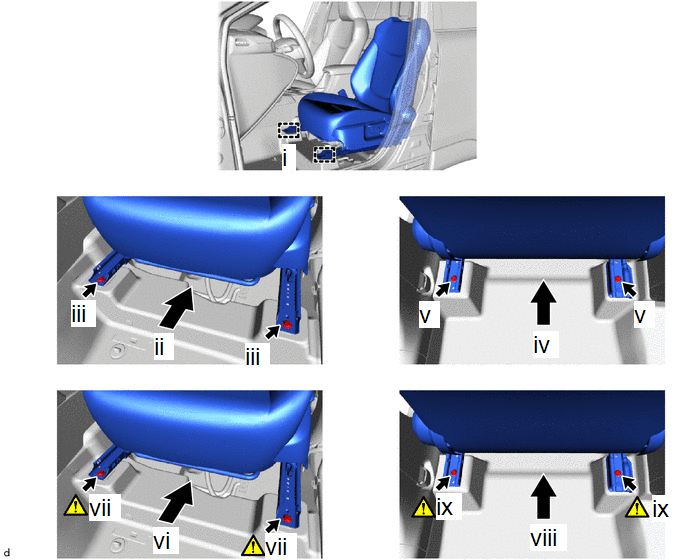

(7) Using a T50 "TORX" socket wrench, tighten the 2 bolts on the front side of the front seat assembly in the order shown in the illustration.

Torque:

37 N·m {377 kgf·cm, 27 ft·lbf}

(8) Operate the seat track adjusting handle to move the front seat assembly to the frontmost position.

(9) Using a T50 "TORX" socket wrench, tighten the 2 bolts on the rear side of the front seat assembly in the order shown in the illustration.

Torque:

37 N·m {377 kgf·cm, 27 ft·lbf}

2. INSPECT SEAT SLIDE ADJUSTER LOCK

(1) While performing a sliding operation of the front seat assembly, check that the left and right adjusters move together smoothly and lock simultaneously.

(2) If the seat adjusters do not lock simultaneously, loosen the front seat assembly installation bolts and adjust the adjuster position.

3. INSTALL SEAT TRACK OUTER COVER

4. INSTALL SEAT TRACK BRACKET INNER COVER

5. INSTALL FRONT SEAT TRACK BRACKET OUTER COVER

6. INSTALL FRONT SEAT TRACK BRACKET INNER COVER

7. INSTALL FRONT SEAT HEADREST ASSEMBLY

8. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

• for Gasoline Model

  Click here

• for HEV Model

  Click here

9. INSPECT SRS WARNING LIGHT

Click here

10. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here
