Toyota Corolla Cross: Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

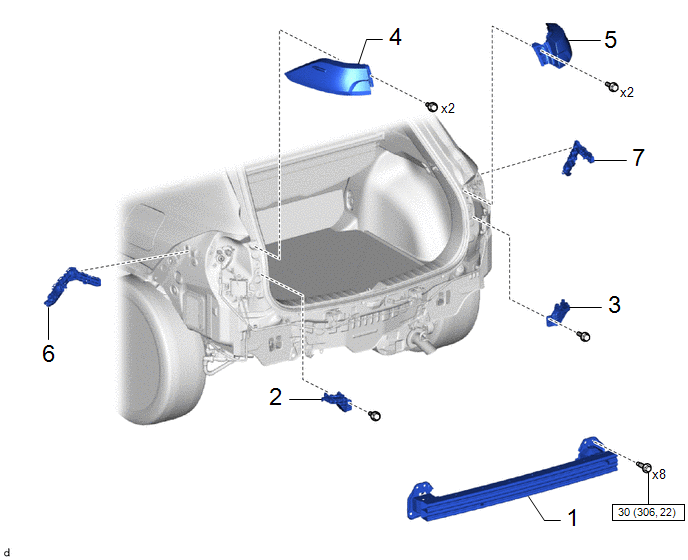

Procedure		Part Name Code
1	REAR BUMPER REINFORCEMENT SUB-ASSEMBLY	52023	-	-	-
2	REAR BUMPER UPPER RETAINER LH	52563A	-	-	-
3	REAR BUMPER UPPER RETAINER RH	52562B	-	-	-
4	REAR COMBINATION LIGHT ASSEMBLY LH	81560	-	-	-
5	REAR COMBINATION LIGHT ASSEMBLY RH	81550	-	-	-
6	REAR BUMPER SIDE RETAINER LH	52576	-	-	-
7	REAR BUMPER SIDE RETAINER RH	52575	-	-	-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

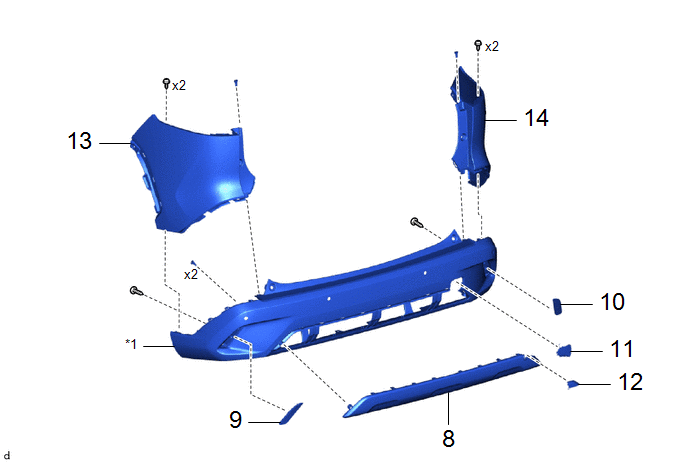

Procedure		Part Name Code
8	REAR BUMPER BAR	52151E	-	-	-
9	REFLEX REFLECTOR ASSEMBLY LH	81920	-	-	-
10	REFLEX REFLECTOR ASSEMBLY RH	81910	-	-	-
11	NO. 1 REAR BUMPER PLATE	52162B	-	-	-
12	REAR BUMPER PLATE RH	52163A	-	-	-
13	REAR BUMPER UPPER COVER LH	52166A	-	-	-
14	REAR BUMPER UPPER COVER RH	52165A	-	-	-

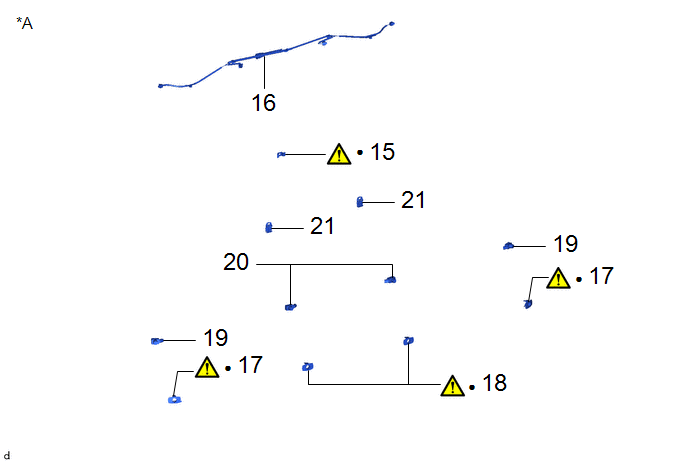

Procedure		Part Name Code
15	ULTRASONIC SENSOR CLIP	89348D		-	-
16	NO. 9 FLOOR WIRE	8216C	-	-	-
17	REAR CORNER ULTRASONIC SENSOR RETAINER	89C48A		-	-
18	REAR CENTER ULTRASONIC SENSOR RETAINER	89C48B		-	-
19	REAR CORNER ULTRASONIC SENSOR	89342	-	-	-
20	REAR CENTER ULTRASONIC SENSOR	89342A	-	-	-
21	ULTRASONIC SENSOR CLIP	89348D	-	-	-

PROCEDURE

1. INSTALL REAR BUMPER REINFORCEMENT SUB-ASSEMBLY

Torque:

30 N·m {306 kgf·cm, 22 ft·lbf}

2. INSTALL REAR BUMPER UPPER RETAINER LH

3. INSTALL REAR BUMPER UPPER RETAINER RH

4. INSTALL REAR COMBINATION LIGHT ASSEMBLY LH

5. INSTALL REAR COMBINATION LIGHT ASSEMBLY RH

6. INSTALL REAR BUMPER SIDE RETAINER LH

7. INSTALL REAR BUMPER SIDE RETAINER RH

8. INSTALL REAR BUMPER BAR

9. INSTALL REFLEX REFLECTOR ASSEMBLY LH

10. INSTALL REFLEX REFLECTOR ASSEMBLY RH

11. INSTALL NO. 1 REAR BUMPER PLATE

12. INSTALL REAR BUMPER PLATE RH

13. INSTALL REAR BUMPER UPPER COVER LH

14. INSTALL REAR BUMPER UPPER COVER RH

15. INSTALL ULTRASONIC SENSOR CLIP (w/ TOYOTA Parking Assist-sensor System)

NOTICE: When installing a new ultrasonic sensor clip, heat the rear bumper cover heat light.

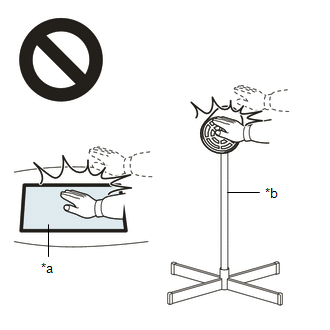

CAUTION:

• Do not touch the heat light and heated parts, touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

NOTICE:

Do not heat the rear bumper cover excessively.

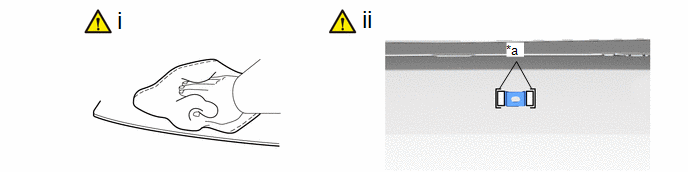

(1) Clean the rear bumper cover surface.

1. Using a heat light, heat the rear bumper cover surface.

2. Remove any remaining double-sided tape from the rear bumper cover.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:

• Installing the ultrasonic sensor clip with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
• Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

(2) Install a new ultrasonic sensor clip.

1. Using a heat light, heat the rear bumper cover surface.

2. Remove the release paper from the ultrasonic sensor clip.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.

3. Install the ultrasonic sensor clip as shown in the illustration.

HINT:

Install the ultrasonic sensor clip along the location line on the rear bumper assembly.

16. INSTALL NO. 9 FLOOR WIRE (w/ TOYOTA Parking Assist-sensor System)

17. INSTALL REAR CORNER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

Click here

18. INSTALL REAR CENTER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

Click here

19. INSTALL REAR CORNER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

20. INSTALL REAR CENTER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

21. INSTALL ULTRASONIC SENSOR CLIP
