Toyota Corolla Cross: Terminals Of Ecu

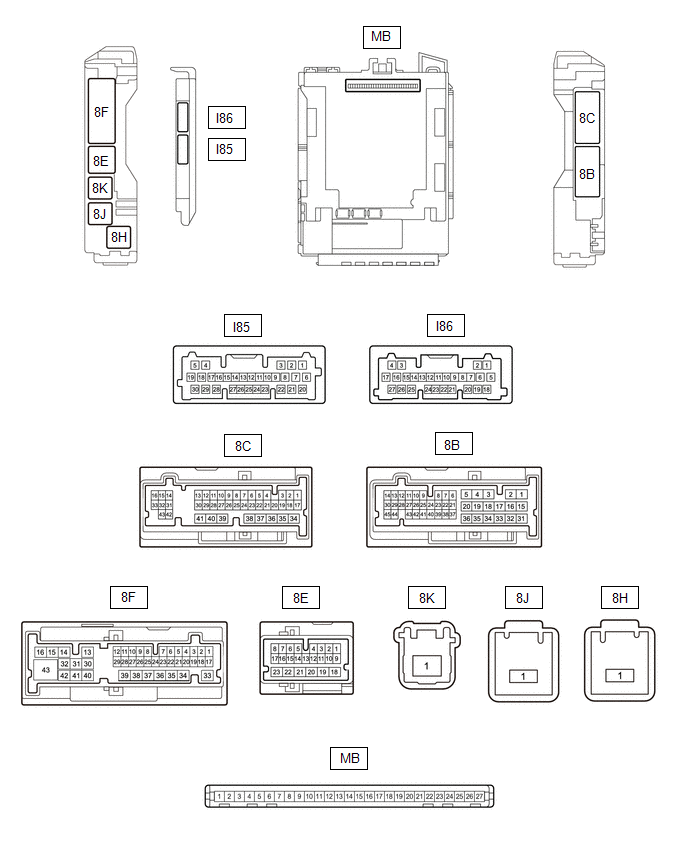

TERMINALS OF ECU
.png)
CHECK MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) AND POWER DISTRIBUTION BOX ASSEMBLY
(a) Remove the main body ECU (multiplex network body ECU) from the power distribution box assembly.
Click here .gif)
(b) Connect the power distribution box assembly connectors.
(c) Measure the voltage and resistance according to the value(s) in the table below.
|
Terminal No. (Symbol) | Terminal Description |
Condition | Specified Condition |
|---|---|---|---|
|
MB-13 (GND1) - Body ground |
Ground | Always |
Below 1 Ω |
|
MB-14 (GND2) - Body ground |
Ground | Always |
Below 1 Ω |
|
MB-26 (BECU) - Body ground |
Auxiliary battery power supply |
Ignition switch off | 11 to 14 V |
|
MB-27 (IGR) - Body ground |
Ignition power supply |
Ignition switch off | Below 1 Ω |
|
Ignition switch ON | 11 to 14 V |
(d) Install the main body ECU (multiplex network body ECU).
Click here
(e) Connect the power distribution box assembly and main body ECU (multiplex network body ECU) connectors.
(f) Measure the voltage and resistance, and check for pulses according to the value(s) in the table below.
|
Terminal No. (Symbol) | Terminal Description |
Condition | Specified Condition |
|---|---|---|---|
|
8E-5 - Body ground |
CXPI communication line |
Ignition switch off | Below 1 V |
|
Ignition switch ON | Pulse generation | ||
|
I85-26 (HEAD) - Body ground |
Light control switch in HEAD position signal input |
Light control switch not in HEAD position |
11 to 14 V |
| Light control switch in HEAD position |
Below 1 V | ||
|
8K-1 - Body ground |
IG power supply | Ignition switch off |
Below 1 V |
| Ignition switch ON |
11 to 14 V | ||
|
8E-6 - Body ground |
Headlight assembly LH power supply |
Ignition switch off | 11 to 14 V |
|
Ignition switch ON | Below 1 V | ||
|
8E-10 - Body ground |
Headlight assembly RH power supply |
Ignition switch off | 11 to 14 V |
|
Ignition switch ON | Below 1 V | ||
|
I85-8 (CLTB) - I85-21 (CLTE) |
Automatic light control sensor power supply output |
Ignition switch off | Below 1 V |
|
Ignition switch ON | 11 to 14 V | ||
|
I85-14 (AHBI) - Body ground |
Auto high beam switch signal input |
Auto high beam switch on |
Below 1 V |
| Auto high beam switch off |
11 to 14 V | ||
|
I85-15 (AHID) - Body ground |
Auto high beam switch indicator drive output |
Ignition switch ON, auto high beam switch off |
11 to 14 V |
| Ignition switch ON, auto high beam switch on |
Below 1 V | ||
|
I85-20 (CLTS) - Body ground |
Automatic light control sensor signal input |
Ignition switch ON | Pulse generation (See waveform 1) |
|
8C-9 - Body ground |
Front door courtesy light switch assembly RH input |
Front door RH open | 4.7 to 5.3 V |
|
Front door RH closed |
Below 1 V |

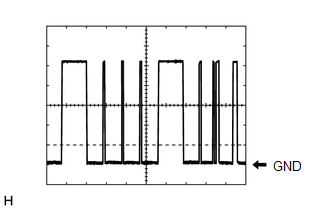

(1) Waveform 1
.png)
|
Item | Content |
|---|---|
|
Tester Connection | I85-20 (CLTS) - Body ground |
|
Tool setting | 2 V/DIV., 10 ms./DIV. |
|
Condition | Ignition switch ON |
HINT:
The communication waveform changes according to the surrounding brightness.
CHECK COMBINATION METER ASSEMBLY
Click here
CHECK STEERING SENSOR
for HEV Model: Click here
for Gasoline Model: Click here
CHECK FORWARD RECOGNITION CAMERA
Click here
SEMICONDUCTOR POWER INTEGRATION ECU
Click here
