Toyota Corolla Cross: Reassembly
REASSEMBLY
CAUTION / NOTICE / HINT

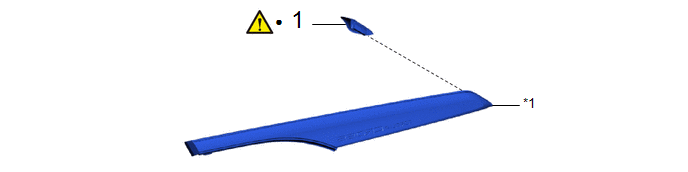

COMPONENTS (REASSEMBLY)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | QUARTER PILLAR PAD |
62232A | - |
- | - |
|
*1 | QUARTER PILLAR COVER |
- | - |
|
● | Non-reusable part |
- | - |
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL QUARTER PILLAR PAD
|
|
NOTICE: When installing a new quarter pillar pad, heat the quarter pillar cover using a heat light. |
Standard:
|
Item | Temperature |
|---|---|
|
Quarter Pillar Cover |
20 to 30°C (68 to 86°F) |

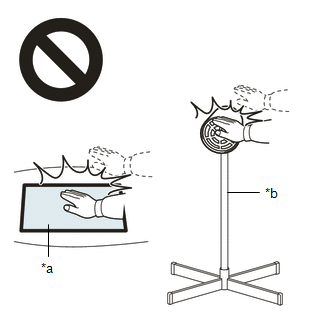

CAUTION:
- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
.png)
|
*a | Heated Part |
|
*b | Heat Light |
NOTICE:
Do not heat the quarter pillar cover excessively.
|

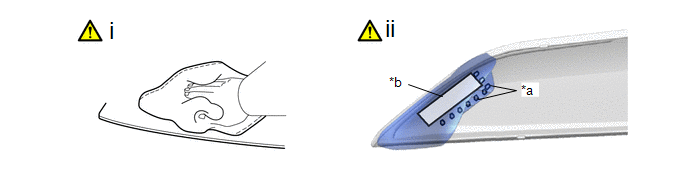

*a | Lib |
*b | Double-sided Tape |
(1) Clean the quarter pillar cover.
1. Using a heat light, heat the quarter pillar cover surface.
2. Remove any remaining double-sided tape from the quarter pillar cover.
3. Wipe off any tape adhesive residue with cleaner.
NOTICE:
- Installing the quarter pillar pad with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
- Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
(2) Install a new quarter pillar pad.
1. Using a heat light, heat the quarter pillar cover.
2. Remove the release paper from the quarter pillar pad.
HINT:
After removing the release paper, keep the exposed adhesive free from foreign matter.
3. Install the quarter pillar pad as shown in the illustration.
HINT:
- Install the quarter pillar pad along the lib on the quarter pillar cover.
- Press the quarter pillar pad firmly to install it.
