Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

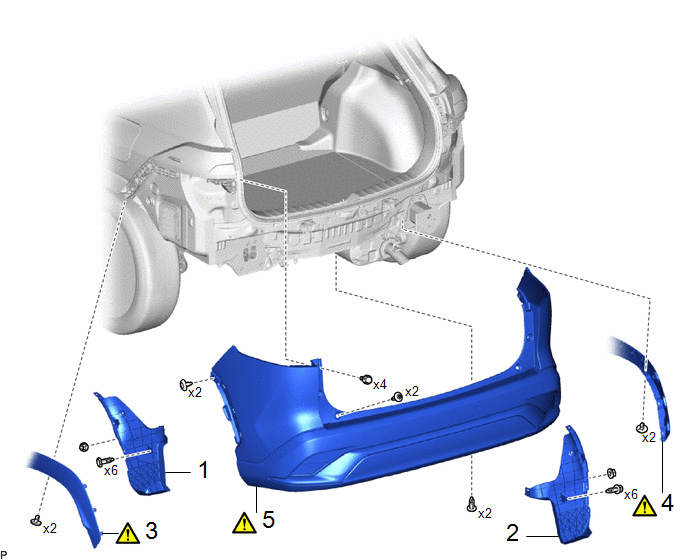

Procedure		Part Name Code
1	REAR BUMPER SIDE SEAL LH	52592	-	-	-
2	REAR BUMPER SIDE SEAL RH	52591	-	-	-
3	QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH	75606B		-	-
4	QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH	75605B		-	-
5	REAR BUMPER ASSEMBLY	-		-	-

PROCEDURE

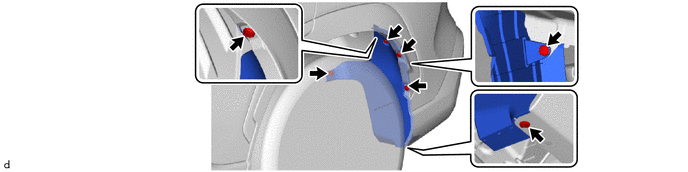

1. REMOVE REAR BUMPER SIDE SEAL LH

2. REMOVE REAR BUMPER SIDE SEAL RH

(a) Use the same procedure as for the LH side.

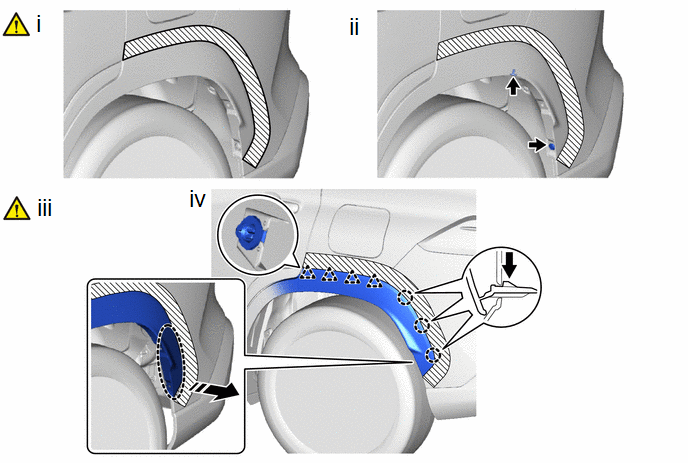

3. SEPARATE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY LH

	Push		Place Hand Here
	Remove in this Direction	-	-

(1) Apply protective tape around the quarter outside moulding sub-assembly LH as shown in the illustration.

(2) Remove the 2 clips.

(3) Disengage the claws by pushing the area indicated by the arrow in the illustration with a finger.

NOTICE:

To avoid damaging the claws, do not forcibly pull the quarter outside moulding sub-assembly LH.

(4) Disengage the clips to separate the quarter outside moulding sub-assembly LH from the rear bumper assembly as shown in the illustration.

4. SEPARATE QUARTER OUTSIDE MOULDING SUB-ASSEMBLY RH

(a) Use the same procedure as for the LH side.

5. REMOVE REAR BUMPER ASSEMBLY

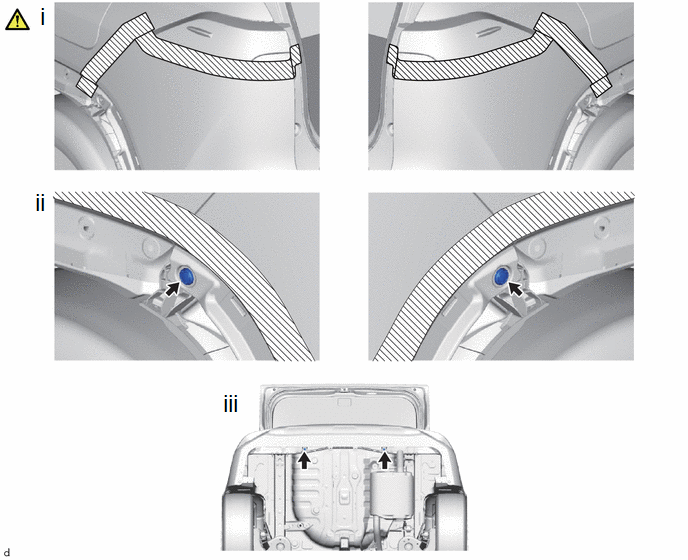

(1) Apply protective tape around the rear bumper assembly as shown in the illustration.

(2) Remove the 2 clips.

(3) Remove the 2 clips.

Remove in this Direction

-

-

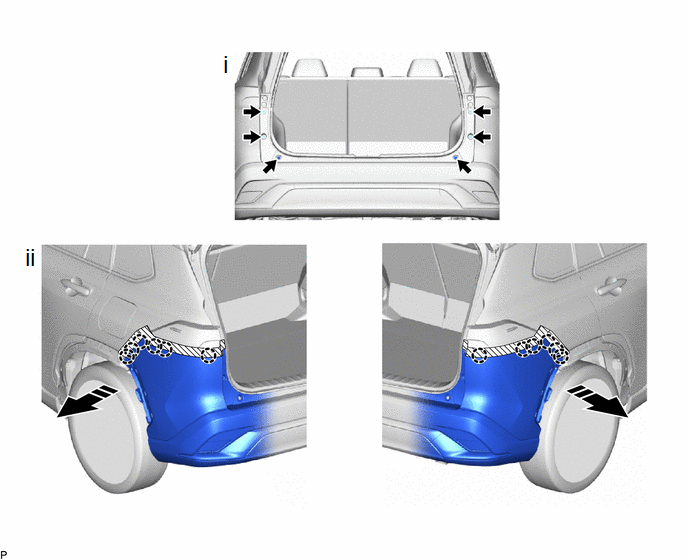

(1) Remove the 2 rear bumper upper stoppers and 4 screws.

(2) Disengage the claws as shown in the illustration.

*A	w/ TOYOTA Parking Assistsensor System	-	-
	Remove in this Direction	-	-

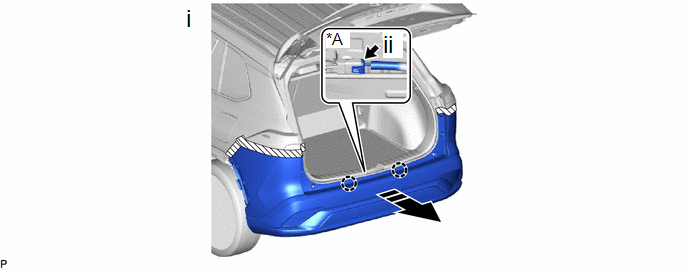

(1) Disengage the claws to remove the rear bumper assembly as shown in the illustration.

(2) w/ TOYOTA Parking Assistsensor System:

1. Disconnect the connector.
