Toyota Corolla Cross: Positioning a floor jack
When using a floor jack, follow
the instructions in the
manual provided with the
jack and perform the operation
safely.
When raising your vehicle
with a floor jack, position
the jack correctly. Improper
placement may damage
your vehicle or cause injury.
Location of the jack point
■ Front

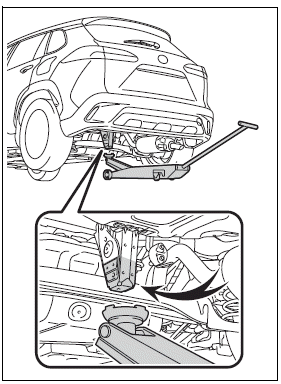

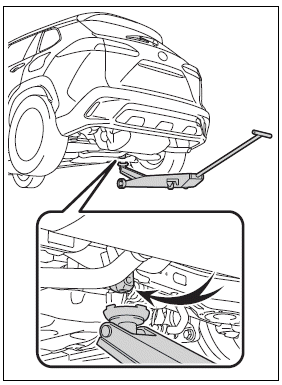

■ Rear
2WD models
AWD models
