Toyota Corolla Cross: Parts Location
PARTS LOCATION

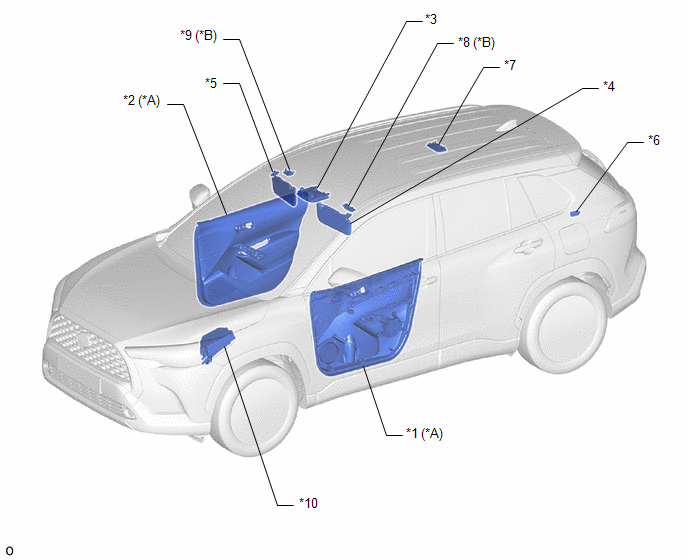

ILLUSTRATION
|
*A | w/ Ambient Illumination Light |
*B | w/ Vanity Light |
|
*1 | FRONT DOOR AMBIENT ILLUMINATION LIGHT LH (FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH) |
*2 | FRONT DOOR AMBIENT ILLUMINATION LIGHT RH (FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH) |
|
*3 | MAP LIGHT ASSEMBLY |
*4 | VISOR ASSEMBLY LH |
|
*5 | VISOR ASSEMBLY RH |
*6 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
|
*7 | NO. 1 ROOM LIGHT ASSEMBLY |
*8 | VANITY LIGHT ASSEMBLY (LH) |
|
*9 | VANITY LIGHT ASSEMBLY (RH) |
*10 | NO. 1 ENGINE ROOM RELAY BLOCK - D/C CUT FUSE - INP STD NO. 2 FUSE - INP STD NO. 3 FUSE |

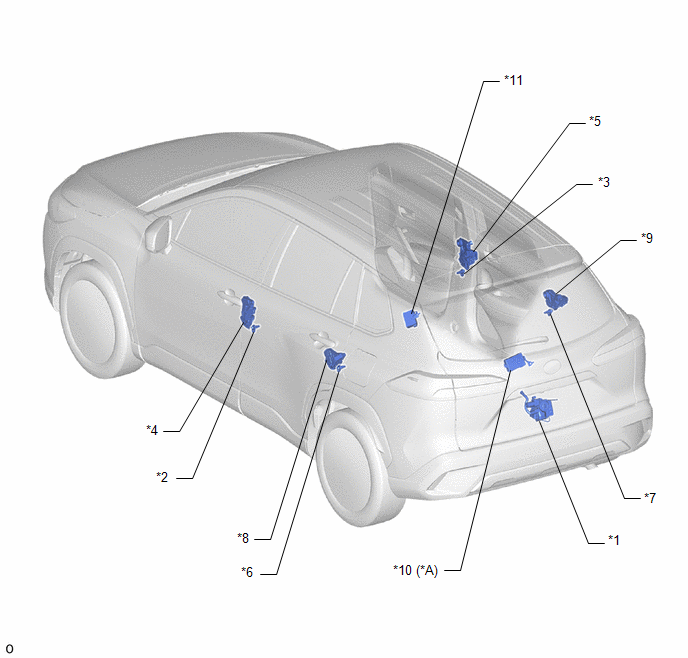

ILLUSTRATION
|
*A | w/ Power Back Door System |
- | - |
|
*1 | BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH |
*2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) |
|
*3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) |
*4 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH - DOOR LOCK POSITION SWITCH |
|
*5 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH - DOOR LOCK POSITION SWITCH |
*6 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) |
|
*7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) |
*8 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH - DOOR LOCK POSITION SWITCH |
|
*9 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH - DOOR LOCK POSITION SWITCH |
*10 | MULTIPLEX NETWORK DOOR ECU |
|
*11 | ELECTRICAL KEY & TPMS RECEIVER ASSEMBLY |
- | - |

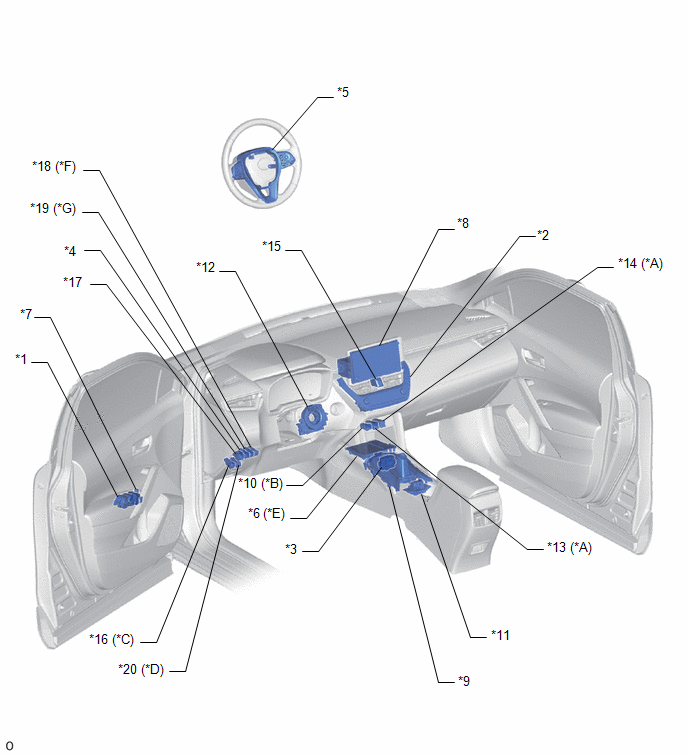

ILLUSTRATION
|
*A | w/ Seat Heater System |
*B | w/ Steering Heater |
|
*C | w/ Power Back Door System |
*D | for HEV Model |
|
*E | w/ Wireless Charger |
*F | w/ Windshield Deicer System |
|
*G | for Instrument Panel Side |
- | - |
|
*1 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY |
*2 | AIR CONDITIONING CONTROL ASSEMBLY |
|
*3 | COMBINATION SWITCH ASSEMBLY |
*4 | AUTO HIGH BEAM SWITCH |
|
*5 | STEERING PAD SWITCH ASSEMBLY |
*6 | MOBILE WIRELESS CHARGER CRADLE ASSEMBLY |
|
*7 | OUTER MIRROR SWITCH ASSEMBLY |
*8 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
|
*9 | SHIFT POSITION INDICATOR (POSITION INDICATOR HOUSING ASSEMBLY) |
*10 | STEERING HEATER SWITCH |
|
*11 | ELECTRIC PARKING BRAKE SWITCH ASSEMBLY |
*12 | SPIRAL CABLE SUB-ASSEMBLY |
|
*13 | SEAT HEATER SWITCH LH |
*14 | SEAT HEATER SWITCH RH |
|
*15 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
*16 | NO. 1 POWER BACK DOOR CONTROL SWITCH |
|
*17 | LIGHT CONTROL RHEOSTAT |
*18 | FRONT WIPER DEICER SWITCH |
|
*19 | VSC OFF SWITCH |
*20 | FUEL LID OPENER SWITCH |

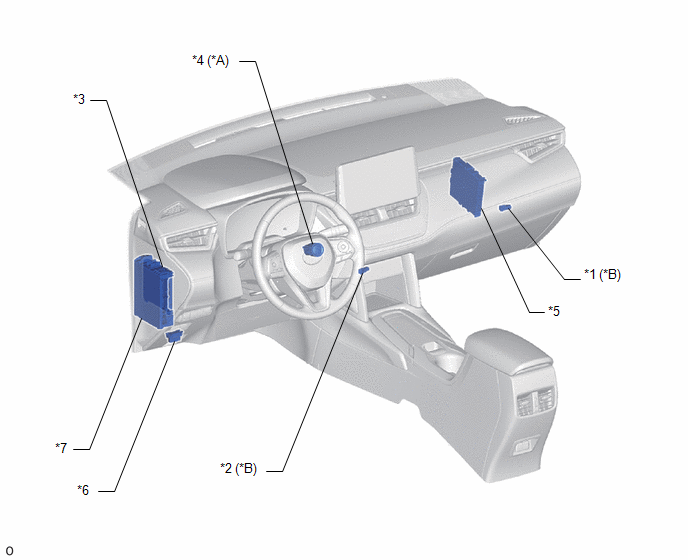

ILLUSTRATION
|
*A | w/ Smart Key System |
*B | w/ Ambient Illumination Light |
|
*1 | GLOVE BOX LIGHT ASSEMBLY |
*2 | CENTER TRAY ILLUMINATION LIGHT (NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY) |
|
*3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
*4 | PUSH START SWITCH |
|
*5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
*6 | DLC3 |
|
*7 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-IGR NO. 2 FUSE - DOME FUSE - IGR-NO. 2 RELAY - DOME CUT RELAY | - |
- |
