Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

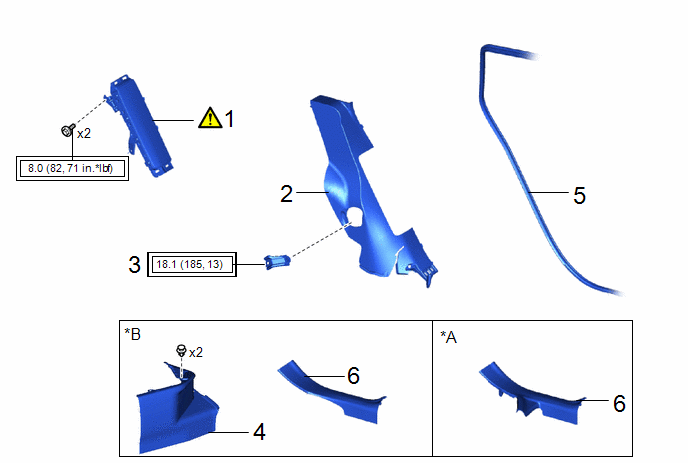

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

REAR SEAT SIDE AIRBAG ASSEMBLY

-

-

-

2

REAR SEAT SIDE GARNISH LH

62552F

-

-

-

3

REAR SEAT BACK HINGE SUB-ASSEMBLY LH

71304C

-

-

-

4

REAR UNDER SIDE COVER LH

76974E

-

-

-

5

REAR DOOR OPENING TRIM WEATHERSTRIP

62332A

-

-

-

6

REAR DOOR SCUFF PLATE LH

67918A

-

-

-

*A

for Gasoline Model

*B

for HEV Model

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

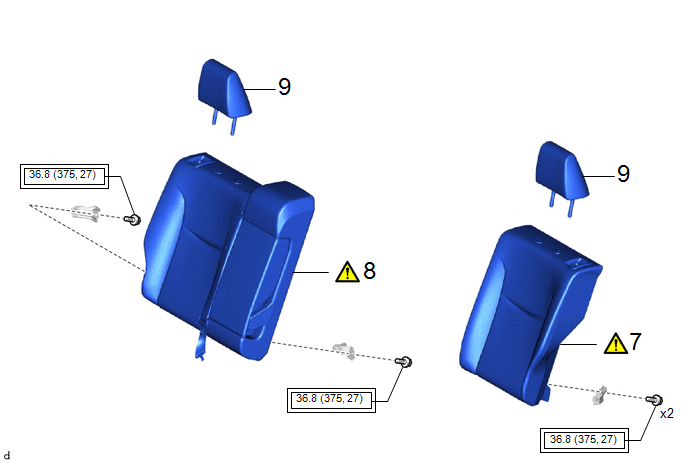

Procedure

Part Name Code

7

REAR SEATBACK ASSEMBLY LH

-

-

-

8

REAR SEATBACK ASSEMBLY RH

-

-

-

9

REAR SEAT HEADREST ASSEMBLY

71940A

-

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

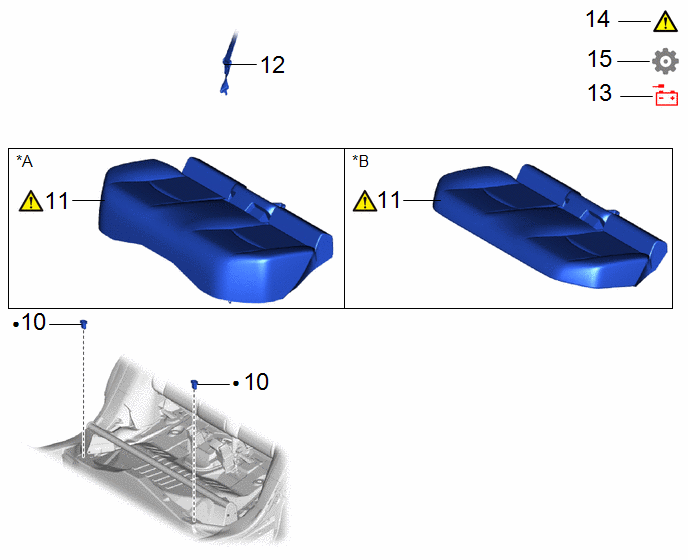

Procedure

Part Name Code

10

REAR SEAT CUSHION LOCK HOOK

72693

-

-

-

11

BENCH TYPE REAR SEAT CUSHION ASSEMBLY

-

-

-

12

REAR CENTER SEAT OUTER BELT ASSEMBLY

-

-

-

-

13

CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

14

INSPECT SRS WARNING LIGHT

-

-

-

15

INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

-

-

-

*A

for Gasoline Model

*B

for HEV Model

Non-reusable part

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

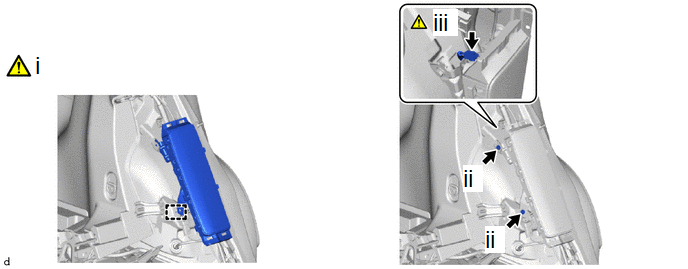

1. INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY

*A

w/ Smart Key System

*B

w/o Smart Key System

*a

illumination off

-

-

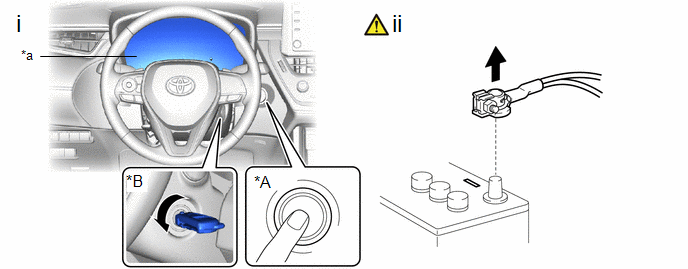

(1) Check that the ignition switch is off.

(2) Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:

  • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
  • If the airbag deploys for any reason, it may cause a serious accident.

(1) Engage the claw to install the rear seat side airbag assembly.

(2) Install the 2 bolts.

Torque:

9.0 N·m {92 kgf·cm, 80 in·lbf}

(3) Disconnect the airbag connector.

CAUTION:

When connecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click here

2. INSTALL REAR SEAT SIDE GARNISH LH

3. INSTALL REAR SEAT BACK HINGE SUB-ASSEMBLY LH

4. INSTALL REAR UNDER SIDE COVER LH (for HEV Model)

5. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

6. INSTALL REAR DOOR SCUFF PLATE LH

7. INSTALL REAR SEATBACK ASSEMBLY LH

Click here

8. INSTALL REAR SEATBACK ASSEMBLY RH

Click here

9. INSTALL REAR SEAT HEADREST ASSEMBLY

10. INSTALL REAR SEAT CUSHION LOCK HOOK

Click here

11. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

  • for Gasoline Model

    Click here

  • for HEV Model

    Click here

12. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY

Click here

13. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

  • for Gasoline Model

    Click here

  • for HEV Model

    Click here

14. INSPECT SRS WARNING LIGHT

Click here

15. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here
