DESCRIPTION
If the entry lock function does not operate for the back door only, but the entry unlock function operates, the request code is being transmitted properly from the back door. In this case, there may be a problem related to the lock switch (connection between the back door opener switch assembly and certification ECU (smart key ECU assembly)).

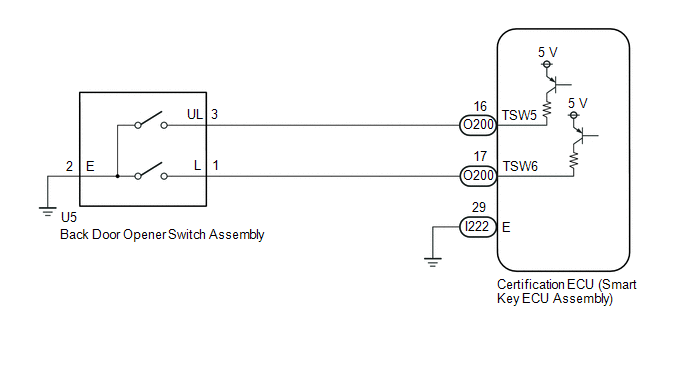

WIRING DIAGRAM
CAUTION / NOTICE / HINT
NOTICE:
Click here
Click here
PROCEDURE
1. | CHECK POWER DOOR LOCK CONTROL SYSTEM |
(a) When the door control switch on the multiplex network master switch assembly is operated, check that the back door lock and unlock according to the switch operation.
Click here
OK:
Back door lock/unlock operate normally.
NG | GO TO POWER DOOR LOCK CONTROL SYSTEM |
|
2. |
INSPECT GTS (TRUNK LID/BACK DOOR LOCK SWITCH) |
(a) Read the Data List according to the display on the GTS.
Body Electrical > Smart Key > Data List
Tester Display | Measurement Item |
Range | Normal Condition |
Diagnostic Note |
---|---|---|---|---|
Trunk Lid/Back Door Lock Switch |
Back door opener switch assembly (lock switch) |
OFF or ON | OFF: Back door opener switch assembly (lock switch) not pressed ON: Back door opener switch assembly (lock switch) pressed |
|
Tester Display |
---|
Trunk Lid/Back Door Lock Switch |
HINT:
When checking the operation of the entry lock function several times, it can be operated up to 2 times consecutively. To operate the function 3 times or more consecutively, the doors need to be unlocked once. However, this is only for the entry lock function, other door lock operations, such as a wireless door lock operation can be performed consecutively.
OK:
The GTS display changes correctly in response to the operation of the back door opener switch assembly.
OK | REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
|
3. |
CHECK HARNESS AND CONNECTOR (BACK DOOR OPENER SWITCH ASSEMBLY - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)) |
(a) Disconnect the O200 certification ECU (smart key ECU assembly) connector.
(b) Disconnect the U5 back door opener switch assembly connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Tester Connection | Condition |
Specified Condition |
---|---|---|
O200-17 (TSW6) - U5-1 (L) |
Always | Below 1 Ω |
O200-17 (TSW6) or U5-1 (L) - Other terminals and body ground |
Always | 10 kΩ or higher |
NG | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
4. |
INSPECT BACK DOOR OPENER SWITCH ASSEMBLY (LOCK SWITCH) |
Click here
OK | REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
NG | REPLACE BACK DOOR OPENER SWITCH ASSEMBLY |
