Toyota Corolla Cross: Removal

REMOVAL

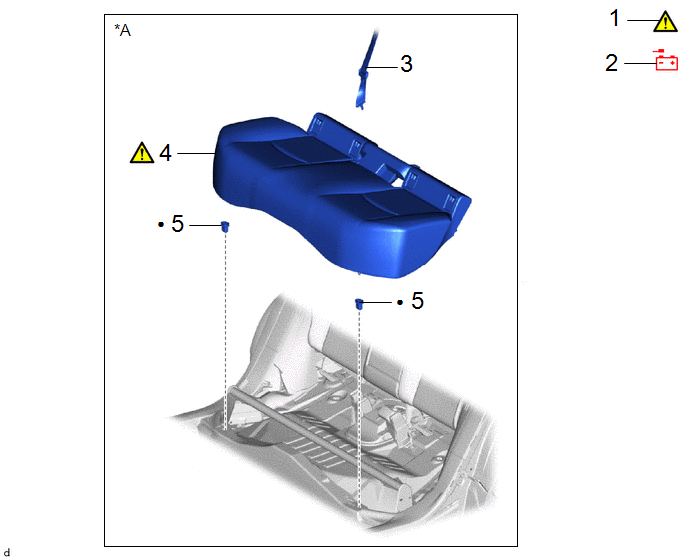

CAUTION / NOTICE / HINT

Procedure		Part Name Code
1	PRECAUTION	-		-	-
2	CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	REAR CENTER SEAT OUTER BELT ASSEMBLY	73350C	-	-	-
4	BENCH TYPE REAR SEAT CUSHION ASSEMBLY	-		-	-
5	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-

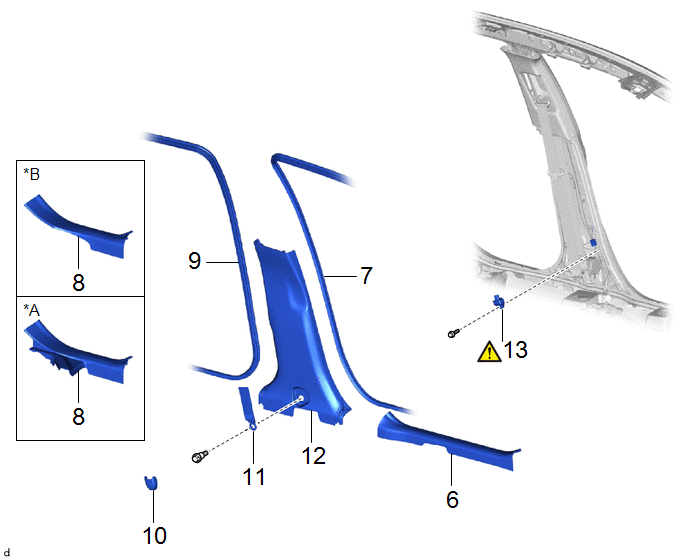

Procedure		Part Name Code
6	FRONT DOOR SCUFF PLATE	67913	-	-	-
7	FRONT DOOR OPENING TRIM WEATHERSTRIP	62311B	-	-	-
8	REAR DOOR SCUFF PLATE	67917A	-	-	-
9	REAR DOOR OPENING TRIM WEATHERSTRIP	62331A	-	-	-
10	LAP BELT OUTER ANCHOR COVER	73233	-	-	-
11	FRONT SEAT OUTER BELT ASSEMBLY	73210	-	-	-
12	CENTER PILLAR LOWER GARNISH	62413A	-	-	-
13	SIDE NO. 1 AIRBAG SENSOR	89831		-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during side No. 1 airbag sensor removal/installation are shown below.

NOTICE:

After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

• Learning completes when vehicle is driven

  Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
  *A: for Gasoline Model
  Front Camera System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.
  Stop and start system*A	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

• Learning completes when vehicle is operated normally

  Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
  Power door lock control system Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
  Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.
  Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

1. PRECAUTION

CAUTION: Be sure to read Precaution thoroughly before servicing. Click here NOTICE: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Click here

2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system. If the airbag deploys for any reason, it may cause a serious accident.

• for Gasoline Model

  Click here

• for HEV Model

  Click here

3. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Gasoline Model)

Click here

4. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

Click here

5. REMOVE REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)

Click here

6. REMOVE FRONT DOOR SCUFF PLATE

Click here

7. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

Click here

8. REMOVE REAR DOOR SCUFF PLATE

Click here

9. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

Click here

10. REMOVE LAP BELT OUTER ANCHOR COVER

Click here

11. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY

Click here

12. REMOVE CENTER PILLAR LOWER GARNISH

Click here

13. REMOVE SIDE NO. 1 AIRBAG SENSOR

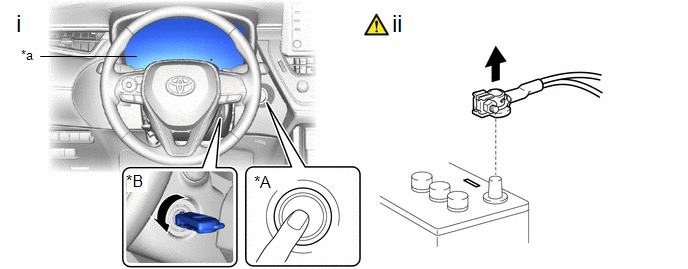

(1) Check that the ignition switch is off.

(2) Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:

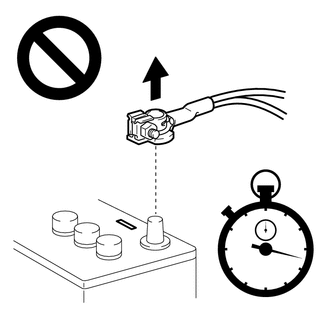

• Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

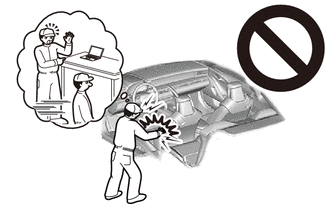

• If the airbag deploys for any reason, it may cause a serious accident.

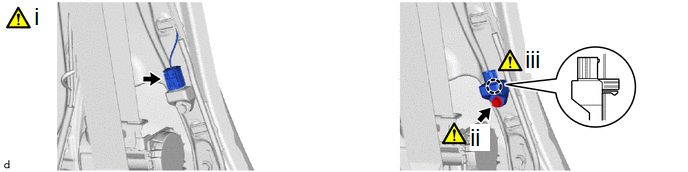

(1) Disconnect the airbag connector.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click here

(2) Remove the bolt.

NOTICE:

Loosen the bolt while holding the side No. 1 airbag sensor because the side No. 1 airbag sensor guide is easily damaged.

(3) Disengage the claw to remove the side No. 1 airbag sensor.

NOTICE:

If the side No. 1 airbag sensor has been dropped, replace it with a new one.
