Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

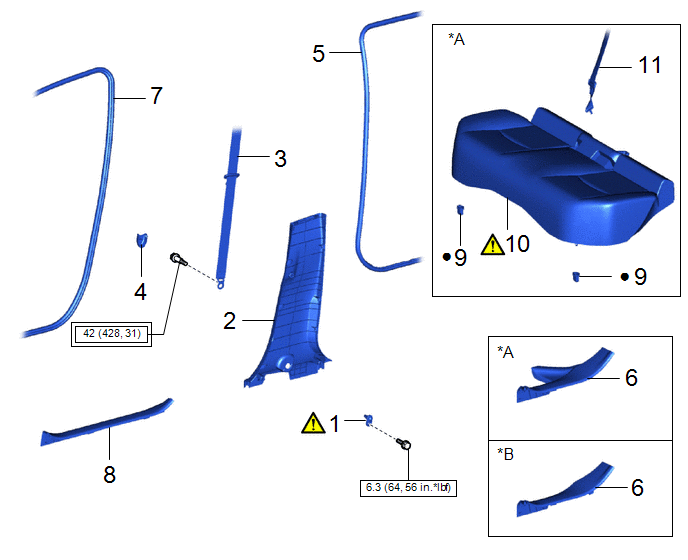

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

84233

-

-

2

CENTER PILLAR LOWER GARNISH

62414A

-

-

-

3

FRONT SEAT OUTER BELT ASSEMBLY

73220

-

-

-

4

LAP BELT OUTER ANCHOR COVER

73233

-

-

-

5

REAR DOOR OPENING TRIM WEATHERSTRIP

62332A

-

-

-

6

REAR DOOR SCUFF PLATE

67918A

-

-

-

7

FRONT DOOR OPENING TRIM WEATHERSTRIP

62312B

-

-

-

8

FRONT DOOR SCUFF PLATE

67914B

-

-

-

9

REAR SEAT CUSHION LOCK HOOK

72693

-

-

-

10

BENCH TYPE REAR SEAT CUSHION ASSEMBLY

-

-

-

11

REAR CENTER SEAT OUTER BELT ASSEMBLY

73350C

-

-

-

*A

for Gasoline Model

*B

for HEV Model

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

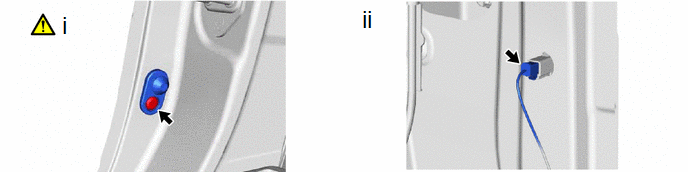

1. INSTALL FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

(1) Using a T30 "TORX" socket wrench, install the front door courtesy light switch assembly with the bolt.

Torque:

6.3 N·m {64 kgf·cm, 56 in·lbf}

(2) Connect the connector.

2. INSTALL CENTER PILLAR LOWER GARNISH

3. CONNECT FRONT SEAT OUTER BELT ASSEMBLY

Click here

4. INSTALL LAP BELT OUTER ANCHOR COVER

5. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP

6. INSTALL REAR DOOR SCUFF PLATE

7. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP

8. INSTALL FRONT DOOR SCUFF PLATE

9. INSTALL REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)

10. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

Click here

11. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Gasoline Model)
