Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Lighting (ext) / Hazard Warning Switch / Installation

INSTALLATION

CAUTION / NOTICE / HINT

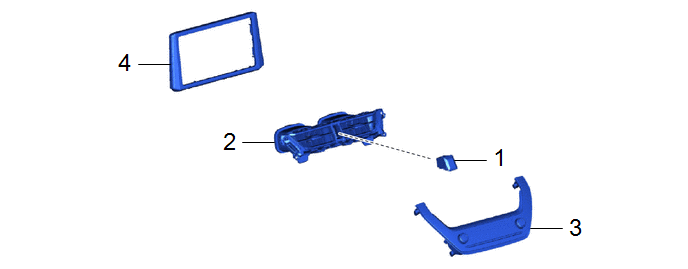

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

HAZARD WARNING SIGNAL SWITCH ASSEMBLY

84380

-

-

-

2

CENTER INSTRUMENT PANEL REGISTER ASSEMBLY

55670A

-

-

-

3

AIR CONDITIONING CONTROL ASSEMBLY

55900

-

-

-

4

CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

55405B

-

-

-

PROCEDURE

1. INSTALL HAZARD WARNING SIGNAL SWITCH ASSEMBLY

2. INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY

3. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

4. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
