Toyota Corolla Cross: Disassembly

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Lighting (ext) / Headlight Assembly (for Bulb Type Clearance Light) / Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

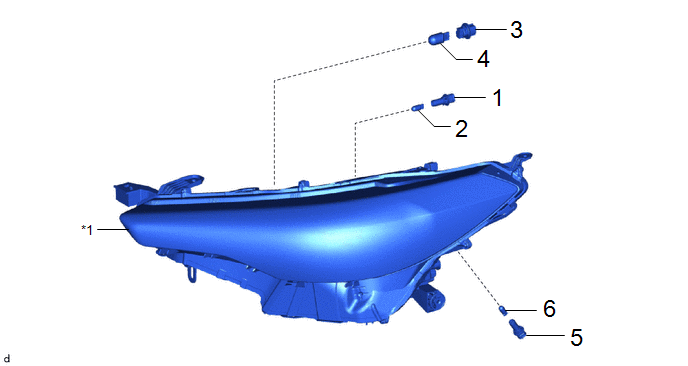

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

CLEARANCE LIGHT SOCKET

-

-

-

-

2

CLEARANCE LIGHT BULB

81610F

-

-

-

3

FRONT TURN SIGNAL LIGHT SOCKET

-

-

-

-

4

FRONT TURN SIGNAL LIGHT BULB

81510D

-

-

-

5

FRONT SIDE MARKER LIGHT SOCKET

-

-

-

-

6

FRONT SIDE MARKER LIGHT BULB

81710F

-

-

-

*1

HEADLIGHT UNIT ASSEMBLY

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

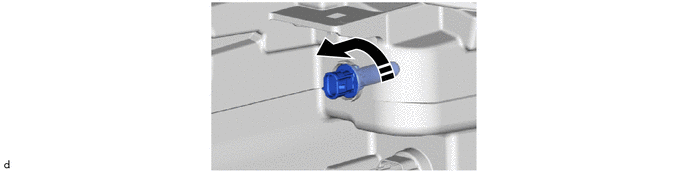

1. REMOVE CLEARANCE LIGHT SOCKET

Remove in this Direction

-

-

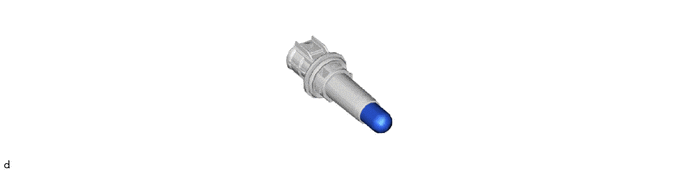

2. REMOVE CLEARANCE LIGHT BULB

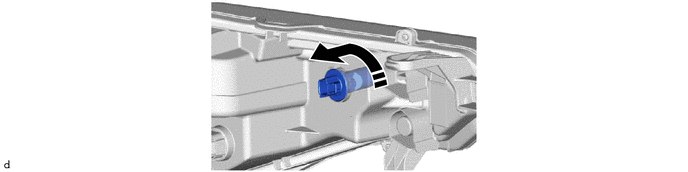

3. REMOVE FRONT TURN SIGNAL LIGHT SOCKET

Remove in this Direction

-

-

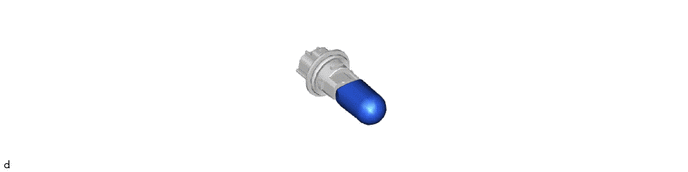

4. REMOVE FRONT TURN SIGNAL LIGHT BULB

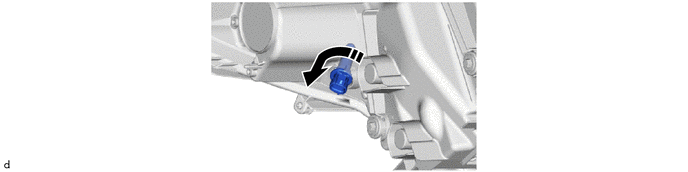

5. REMOVE FRONT SIDE MARKER LIGHT SOCKET

Remove in this Direction

-

-

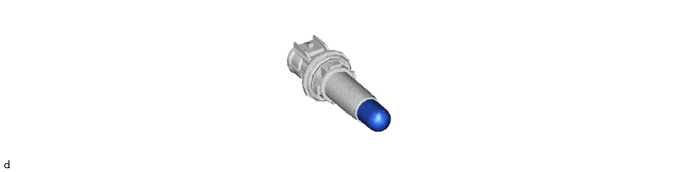

6. REMOVE FRONT SIDE MARKER LIGHT BULB
