Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

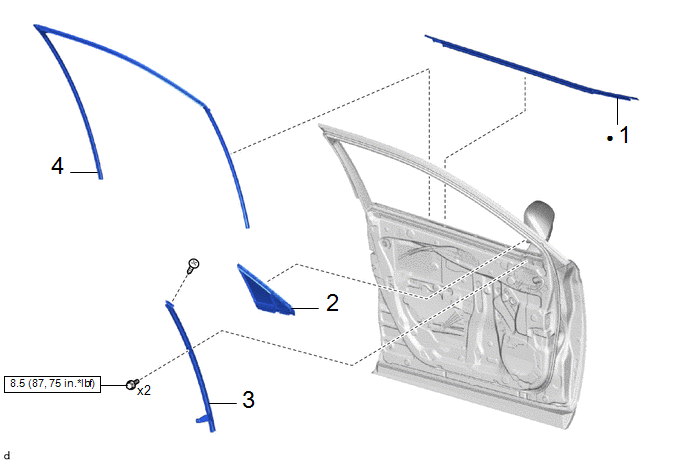

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

FRONT DOOR BELT MOULDING ASSEMBLY

75720

-

-

-

2

FRONT DOOR FIX WINDOW GLASS

68126

-

-

-

3

FRONT LOWER FRONT DOOR FRAME SUB-ASSEMBLY

67402F

-

-

-

4

FRONT DOOR GLASS RUN

68151D

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

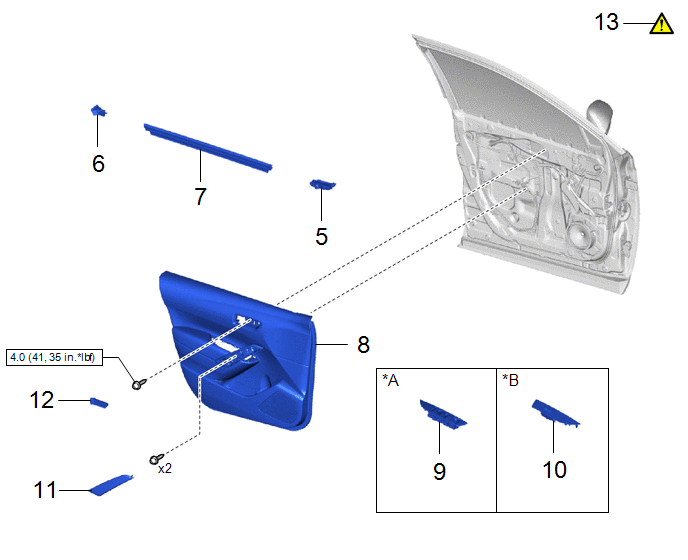

Procedure

Part Name Code

5

FRONT DOOR FRONT BELT SEAL

68193C

-

-

-

6

FRONT DOOR REAR BELT SEAL

68195B

-

-

-

7

FRONT DOOR GLASS INNER WEATHERSTRIP

68172A

-

-

-

8

FRONT DOOR TRIM BOARD SUB-ASSEMBLY

67602

-

-

-

9

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

-

-

-

-

10

POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

-

-

-

-

11

DOOR ASSIST GRIP COVER

74646

-

-

-

12

FRONT DOOR INSIDE HANDLE BEZEL PLUG

69284F

-

-

-

13

INSPECT POWER WINDOW OPERATION

-

-

-

*A

for Driver Side

*B

for Front Passenger Side

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL FRONT DOOR BELT MOULDING ASSEMBLY

2. INSTALL FRONT DOOR FIX WINDOW GLASS

3. INSTALL FRONT LOWER FRONT DOOR FRAME SUB-ASSEMBLY

Torque:

8.5 N·m {87 kgf·cm, 75 in·lbf}

4. INSTALL FRONT DOOR GLASS RUN

5. INSTALL FRONT DOOR FRONT BELT SEAL

6. INSTALL FRONT DOOR REAR BELT SEAL

7. INSTALL FRONT DOOR GLASS INNER WEATHERSTRIP

8. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

Click here

9. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

10. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

11. INSTALL DOOR ASSIST GRIP COVER

12. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG

13. INSPECT POWER WINDOW OPERATION

Click here
