Toyota Corolla Cross: ACC Circuit Short to Ground (B227411)
DESCRIPTION
This DTC is stored when a malfunction in the ACC output circuit is detected. The ACC output circuit is the circuit between terminal ACCD of the certification ECU (smart key ECU assembly) and the ACC relay.
DTC No. | Detection Item |
DTC Detection Condition | Trouble Area |
Note |
B227411 |
ACC Circuit Short to Ground |
The ACC relay circuit of the certification ECU (smart key ECU assembly) is malfunctioning. (1-trip detection logic*)
HINT: When the voltage at terminal ACCD is not at the standard, the system is determined to be malfunctioning. |
- Power distribution box assembly
- Certification ECU (smart key ECU assembly)
- Wire harness or connector
| DTC Output Confirmation Operation:
- Wait 10 seconds after turning the ignition switch to ACC or ON, and then wait another 10 seconds after turning the ignition switch off.
|
- *: Only detected while a malfunction is present.
Vehicle Condition and Fail-safe Function when Malfunction Detected
Vehicle Condition when Malfunction Detected |
Fail-safe Function when Malfunction Detected |
If there is a malfunction due to the ACC relay being stuck off, the ACC relay does not turn on even though the ignition switch is ACC.
HINT: The ignition switch can be turned to ON and the engine can be started. |
- |
Related Data List and Active Test Items
DTC No. | Data List and Active Test |
B227411 | Power Source Control
|

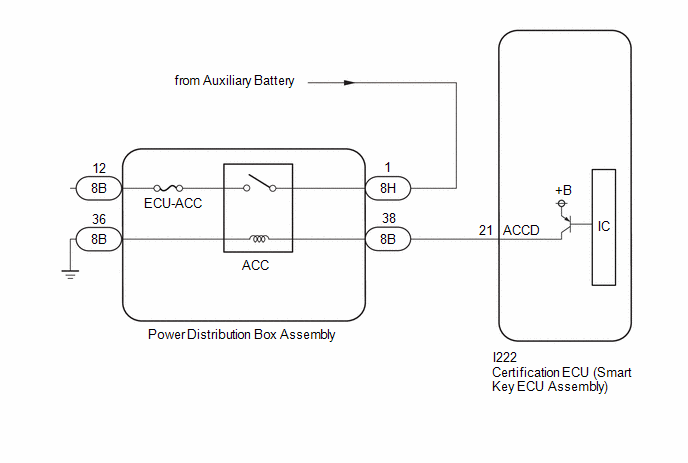

WIRING DIAGRAM
CAUTION / NOTICE / HINT
NOTICE:
- When using the GTS with the ignition switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select the vehicle type under manual mode and enter the following menus: Body Electrical / Smart Key. While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.
- The smart key system (for Start Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart key system (for Start Function) after confirming that the communication systems are functioning properly.
Click here
- Inspect the fuses for circuits related to this system before performing the following procedure.
- Before replacing the certification ECU (smart key ECU assembly), refer to Registration.
Click here
- After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".
PROCEDURE
1. | CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - POWER DISTRIBUTION BOX ASSEMBLY - BODY GROUND) |
(a) Disconnect the I222 certification ECU (smart key ECU assembly) connector.
(b) Disconnect the 8B power distribution box assembly connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Tester Connection | Condition |
Specified Condition |
I222-21 (ACCD) - 8B-38 |
Always | Below 1 Ω |
8B-36 - Body ground | Always |
Below 1 Ω |
I222-21 (ACCD) or 8B-38 - Other terminals and body ground |
Always | 10 kΩ or higher |
NG |
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
OK |
| |
2. |
CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
(a) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
Tester Connection | Condition |
Specified Condition |
I222-21 (ACCD) - Body ground |
Ignition switch off |
1 V or less |
I222-21 (ACCD) - Body ground |
Ignition switch ACC |
8.5 V or higher | |
|

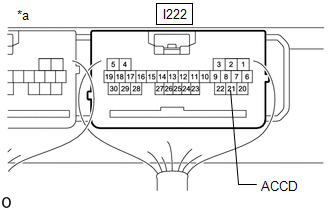

*a | Component with harness connected (Certification ECU (Smart Key ECU Assembly)) | | |
OK |
| REPLACE POWER DISTRIBUTION BOX ASSEMBLY |
NG |
| REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
