Toyota Corolla Cross: Installation

Toyota Corolla Cross (2022-2025) Service Manual / Power Source & Network / M20a-fks (battery / Charging) / Battery Current Sensor / Installation

INSTALLATION

CAUTION / NOTICE / HINT

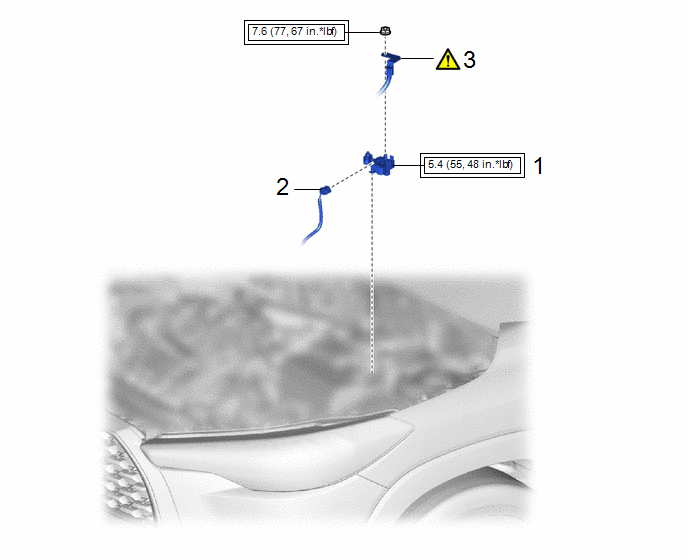

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

BATTERY STATE SENSOR ASSEMBLY

28850C

-

-

-

2

BATTERY CURRENT SENSOR HOLDER

28859A

-

-

-

3

ENGINE WIRE

-

-



Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

PROCEDURE

1. INSTALL BATTERY STATE SENSOR ASSEMBLY

2. INSTALL BATTERY CURRENT SENSOR HOLDER

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

3. INSTALL ENGINE WIRE

NOTICE:

When disconnecting the engine wire, some systems need to be initialized after the engine wire is reconnected.

Torque:

7.6 N·m {77 kgf·cm, 67 in·lbf}
