Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

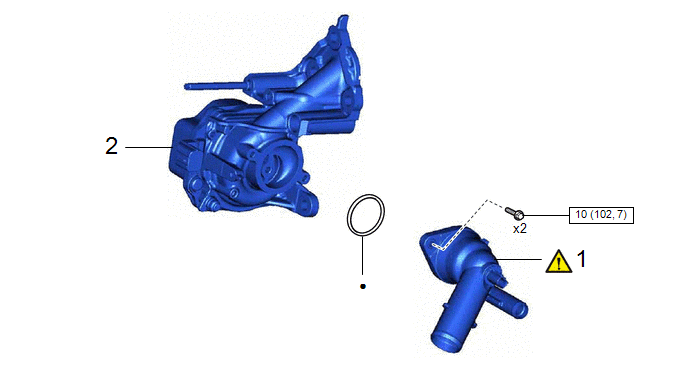

COMPONENTS (INSTALLATION).png)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
16031 |
|
- | - |
|
2 | ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING) |
16032 | - |
- | - |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
● | Non-reusable part |
CAUTION / NOTICE / HINT
NOTICE:
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Click here .gif)
PROCEDURE
1. INSTALL WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

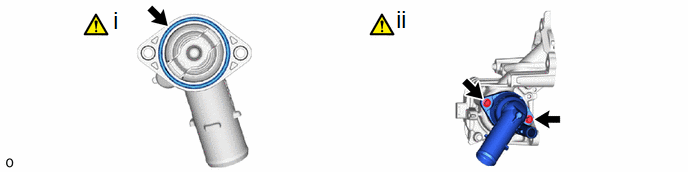

(1) Install a new gasket to the water inlet with thermostat sub-assembly.
HINT:
Be sure to clean the contact surfaces.
(2) Using an 8 mm socket wrench, install the water inlet with thermostat sub-assembly with the 2 bolts.
Torque:
10 N·m {102 kgf·cm, 7 ft·lbf}
2. INSTALL ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)
Click here
