Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

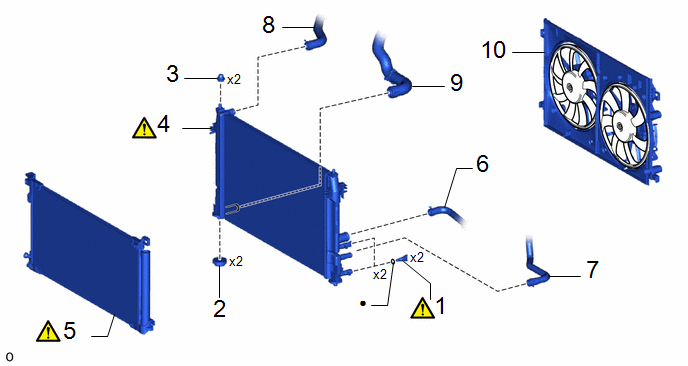

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | RADIATOR DRAIN COCK PLUG |
16400B |
|
- | - |
|
2 | LOWER RADIATOR SUPPORT |
16535 | - |
- | - |
|
3 | RADIATOR SUPPORT CUSHION |
16523A | - |
- | - |
|
4 | RADIATOR ASSEMBLY |
16400 |
|
- | - |
|
5 | COOLER CONDENSER ASSEMBLY |
884A0 |
|
- | - |
|
6 | NO. 1 RADIATOR HOSE |
16571C | - |
- | - |
|
7 | INLET NO. 1 INVERTER COOLING HOSE |
G922AA | - |
- | - |
|
8 | NO. 1 WATER BY-PASS HOSE |
16261G | - |
- | - |
|
9 | INLET HYBRID RADIATOR HOSE |
G922H | - |
- | - |
|
10 | FAN WITH MOTOR ASSEMBLY |
- | - |
- | - |
|
● | Non-reusable part |
- | - |
PROCEDURE
1. INSTALL RADIATOR DRAIN COCK PLUG
|
|
NOTICE: The O-ring is non-reusable parts. |
2. INSTALL LOWER RADIATOR SUPPORT
3. INSTALL RADIATOR SUPPORT CUSHION
4. INSTALL RADIATOR ASSEMBLY
|
|
NOTICE: Do not apply excessive force to the cooler condenser assembly or pipe when installing the radiator assembly. |
5. INSTALL COOLER CONDENSER ASSEMBLY
|
|
NOTICE: Do not damage the cooler condenser assembly when installing the cooler condenser assembly. |
6. CONNECT NO. 1 RADIATOR HOSE
7. CONNECT INLET NO. 1 INVERTER COOLING HOSE
8. CONNECT NO. 1 WATER BY-PASS HOSE
9. CONNECT INLET HYBRID RADIATOR HOSE
10. INSTALL FAN WITH MOTOR ASSEMBLY
