Toyota Corolla Cross: Inspection

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Lighting (int) / Front Door Courtesy Switch / Inspection

INSPECTION

PROCEDURE

1. INSPECT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

O30-1 - Switch body

Not pushed (ON)

Below 1 Ω

O30-1 - Switch body

Pushed (OFF)

10 kΩ or higher

If the result is not as specified, replace the front door courtesy light switch assembly LH.

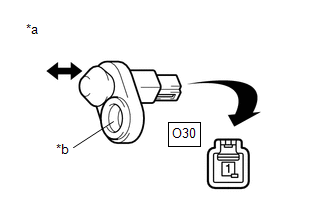

*a

Component without harness connected

(Front Door Courtesy Light Switch Assembly LH)

*b

Switch Body

2. INSPECT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

O32-1 - Switch body

Not pushed (ON)

Below 1 Ω

O32-1 - Switch body

Pushed (OFF)

10 kΩ or higher

If the result is not as specified, replace the front door courtesy light switch assembly RH.

*a

Component without harness connected

(Front Door Courtesy Light Switch Assembly RH)

*b

Switch Body
