Toyota Corolla Cross: Inspection

INSPECTION

PROCEDURE

1. INSPECT NO. 2 FUEL PRESSURE SENSOR

(a) Check the No. 2 fuel pressure sensor output voltage.

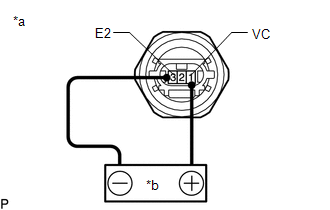

(1) Apply 5 V between terminals 1 (VC) and 3 (E2).

NOTICE:

  • Be careful when connecting the leads, as the No. 2 fuel pressure sensor may be damaged if the leads are connected to the wrong terminals.
  • Do not apply more than 6 V to terminals 1 (VC) or 3 (E2).

HINT:

If a stable power supply is not available, connect 4 nickel-metal hydride batteries (1.2 V each) or equivalent in series.

*a

Component without harness connected

(No. 2 Fuel Pressure Sensor)

*b

Voltage Applied between Terminals

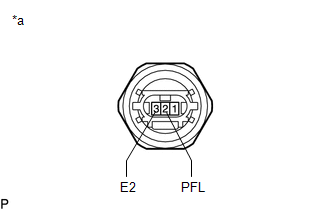

(2) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

2 (PFL) - 3 (E2)

Pressure not applied to No. 2 fuel pressure sensor

Approximately 0.56 to 0.94 V*

*: The output voltage changes depending on the voltage applied to the terminals.

If the result is not as specified, replace the No. 2 fuel pressure sensor.

*a

Component without harness connected

(No. 2 Fuel Pressure Sensor)
