Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

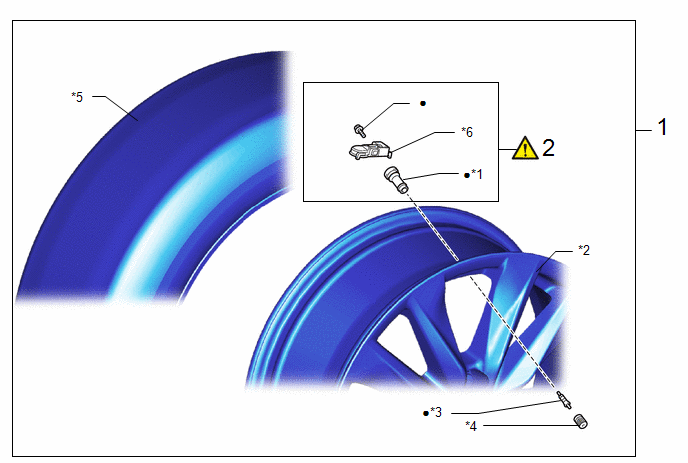

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

WHEEL ASSEMBLY

-

-

-

-

2

TIRE PRESSURE WARNING VALVE AND TRANSMITTER

42607

-

-

*1

TUBELESS TIRE VALVE

*2

DISC WHEEL

*3

VALVE CORE

*4

TIRE VALVE CAP

*5

TIRE

*6

TIRE PRESSURE MONITOR SENSOR

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during tire pressure warning valve and transmitter removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Tire pressure warning valve and transmitter

  • ID Registration
  • Initialization
  • Tire Position Identification

Tire Pressure Warning System

PROCEDURE

1. REMOVE WHEEL ASSEMBLY

Click here

2. REMOVE TIRE PRESSURE WARNING VALVE AND TRANSMITTER

*1

Tubeless Tire Valve

-

-

*a

Tire

*b

Shoe

Cutting Range

-

-

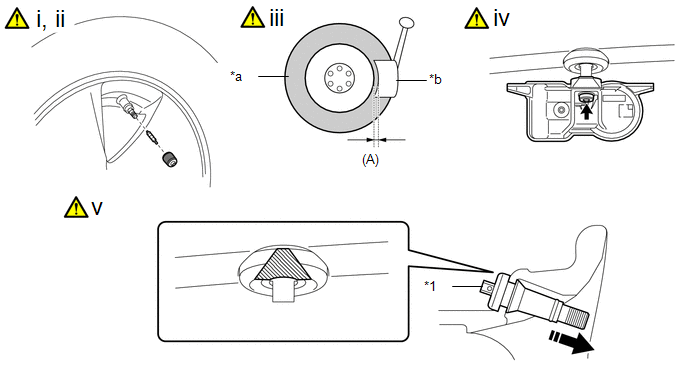

(1) Remove the tire valve cap.

NOTICE:

Keep the removed tire valve cap.

(2) Remove the valve core to release the air from the tire.

NOTICE:

Make sure that a sufficient amount of air has been released.

(3) Using a tire remover, remove the tire from the disc wheel.

Width (A):

10 to 20 mm

NOTICE:

  • Be careful not to damage the tire pressure warning valve and transmitter due to interference between the valve and the tire bead.
  • Set the tire remover shoe as shown in the illustration.

(4) Using a T10 "TORX" socket wrench, remove the bolt.

(5) Cut the tubeless tire valve as shown in the illustration, remove the bolt and tire pressure monitor sensor from the tubeless tire valve.
