Toyota Corolla Cross: Hybrid System Indicator Malfunction

DESCRIPTION

A hybrid system indicator has been included on this vehicle. In this circuit, the combination meter assembly receives the hybrid system indicator signal from the hybrid vehicle control ECU via CAN communication. The combination meter assembly controls the operation of the hybrid system indicator according to the hybrid system indicator signal received from the hybrid vehicle control ECU via CAN communication.

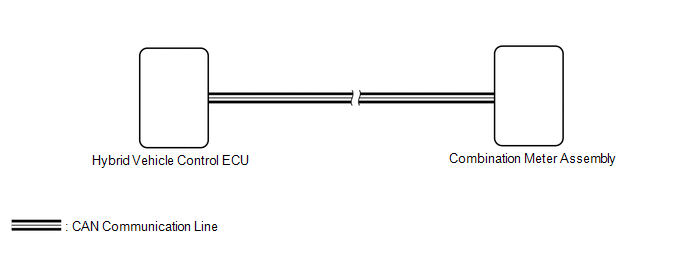

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.
  • When replacing the combination meter assembly, update the ECU security key.

    Click here

  • Before replacing the hybrid vehicle control ECU, refer to Registration.

    Click here

PROCEDURE

1.

CHECK CAN COMMUNICATION SYSTEM

(a) Check if CAN communication DTCs are output.

Click here

Result

Proceed to

DTCs are not output

A

DTCs are output

B

B

GO TO CAN COMMUNICATION SYSTEM

A

2.

CHECK FOR DTC (HYBRID CONTROL SYSTEM)

(a) Check if hybrid control system DTCs are output.

Powertrain > Hybrid Control > Trouble Codes

Result

Proceed to

DTCs are not output

A

DTCs are output

B

B

GO TO HYBRID CONTROL SYSTEM

A

3.

READ VALUE USING GTS

(a) Read the Data List according to the display on the GTS.

Body Electrical > Combination Meter > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

HV/EV System Indicator

Hybrid system indicator value

Min.: -101%, Max.: 511% or Unset

See [Normal Condition 1]

"Unset" is displayed when the vehicle is stopped and the ignition switch is ON (READY).

HINT:

[Normal Condition 1]: HV/EV System Indicator
  • Refer to the following table to find the approximate indicated value of the hybrid system indicator based on the value of the Data List item:

    Data List: HV/EV System Indicator (%)

    Hybrid System Indicator Indication

    Unset

    Not indicated

    -100

    Approximately 1 is indicated

    -50

    Approximately 2 is indicated

    0

    Approximately 3 is indicated

    50

    Approximately 4 is indicated

    100

    Approximately 5 is indicated

    200

    Approximately 6 is indicated

    300

    Approximately 7 is indicated

    400

    Approximately 8 is indicated

    500

    Approximately 9 is indicated

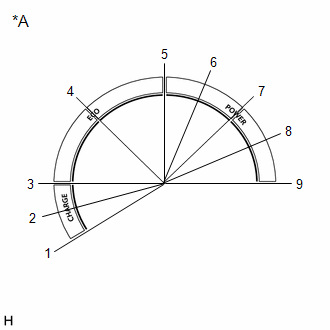

    *A

    for 7 Inch Type Multi-information Display

Body Electrical > Combination Meter > Data List

Tester Display

HV/EV System Indicator

Result

Proceed to

The value displayed in the Data List and on the hybrid system indicator approximately match

A

The value displayed in the Data List and on the hybrid system indicator do not match

B

A

REPLACE HYBRID VEHICLE CONTROL ECU

B

REPLACE COMBINATION METER ASSEMBLY
