Toyota Corolla Cross: Fuel Rail Pressure Sensor "A" Signal Stuck in Range (P01902A,P019064)

Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / M20a-fxs (engine Control) / Sfi System / Fuel Rail Pressure Sensor "A" Signal Stuck in Range (P01902A,P019064)

DESCRIPTION

Refer to DTC P019011.

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Note

P01902A

Fuel Rail Pressure Sensor "A" Signal Stuck in Range

When target high pressure side fuel pressure changes, the change in fuel pressure sensor value is abnormal (2 trip detection logic).

  • Fuel pressure
  • Fuel pressure sensor (for high pressure side)
  • Open or short in fuel pressure sensor (for high pressure side) circuit
  • ECM

Comes on

  • SAE Code: P0191
  • DTC for Mexico Models: Does not apply

P019064

Fuel Rail Pressure Sensor "A" Signal Plausibility Failure

Although engine has been stopped and left as is for a long time, high pressure side fuel pressure is higher or lower than threshold (2 trip detection logic).

  • Fuel pressure
  • Fuel pressure sensor (for high pressure side)
  • Open or short in fuel pressure sensor (for high pressure side) circuit
  • ECM

Comes on

  • SAE Code: P0191
  • DTC for Mexico Models: Does not apply

MONITOR DESCRIPTION

Fuel Pressure Sensor Stuck Monitor

If the fuel pressure sensor (for high pressure side) value does not follow the change in the target high pressure side fuel pressure, it is judged as a malfunction. If this malfunction is detected in 2 consecutive driving cycles, the ECM will illuminate the MIL and store DTC P01902A.

Fuel Pressure Sensor Correlation Monitor with Barometric Pressure

If the fuel pressure sensor (for high pressure side) value is less than or higher than the threshold value when a cold start is performed after the engine has been warmed up and then stopped, it is judged as a malfunction has occurred. If this malfunction is detected for 2 consecutive driving cycles, the ECM will illuminate the MIL and store DTC P019064.

MONITOR STRATEGY

Related DTCs

P0191: Fuel pressure sensor rationality (stuck monitor)

P0191: Fuel pressure sensor rationality (correlation monitor with barometric pressure)

Required Sensors/Components (Main)

Fuel pressure sensor (for high pressure side)

Required Sensors/Components (Related)

Atmospheric pressure sensor (ECM)

Frequency of Operation

Continuous

Duration

Within 30 seconds: Stuck monitor

Within 10 seconds: Correlation monitor with barometric pressure

MIL Operation

2 driving cycles

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

Stuck Monitor

All of the following conditions are met

-

Fuel pressure sensor (for high pressure side) circuit malfunction (P0192, P0193)

Not detected

High pressure fuel pump malfunction (P1235)

Not detected

Engine coolant temperature sensor malfunction (P0117, P0118)

Not detected

Barometric pressure sensor malfunction (P106C, P2228, P2229)

Not detected

Auxiliary battery voltage

11 V or higher

Fuel cut

Off

Injection mode

NOT PFI (Port fuel injection)

Correlation Monitor with Barometric Pressure

All of the following conditions are met

-

Fuel pressure sensor (for high pressure side) circuit malfunction (P0192, P0193)

Not detected

High pressure fuel pump malfunction (P1235)

Not detected

Engine coolant temperature sensor malfunction (P0117, P0118)

Not detected

Barometric pressure sensor malfunction (P106C, P2228, P2229)

Not detected

Soak timer malfunction (P2610)

Not detected

Auxiliary battery voltage

8 V or higher

Ignition switch

Off

Soak time

5, 7 or 9.5 hours

Atmospheric pressure

76 kPa(abs) [11 psi(abs)] or higher

TYPICAL MALFUNCTION THRESHOLDS

Stuck Monitor

Malfunction counter

5 times or more

Fuel pressure sensor (for high pressure side) output deviation

Less than 0.3 MPa (3.1 kgf/cm2, 43.5 psi)

Correlation Monitor with Barometric Pressure

Malfunction counter

5 seconds or more

Fuel pressure sensor (for high pressure side) output

Less than -1.881 MPa (-19.2 kgf/cm2, -273 psi), or higher than 2.543 MPa (25.9 kgf/cm2, 369 psi)

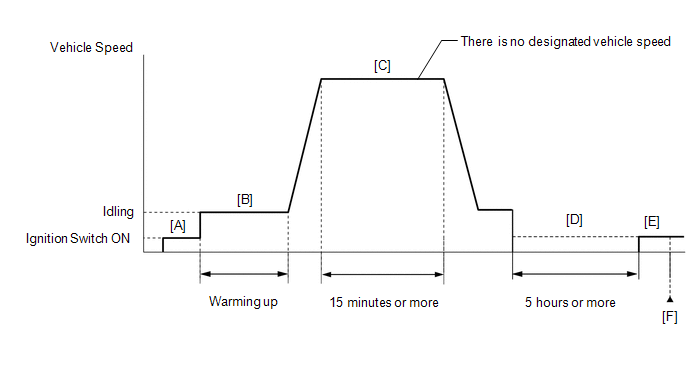

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the GTS to the DLC3.
  2. Turn the ignition switch to ON.
  3. Turn the GTS on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the ignition switch off and wait for at least 30 seconds.
  6. Turn the ignition switch to ON [A].
  7. Turn the GTS on.
  8. Put the engine in Inspection Mode (Maintenance Mode).

    Click here

  9. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].
  10. Drive the vehicle for 15 minutes or more [C].

    CAUTION:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

  11. Turn the ignition switch off.
  12. With the engine stopped, leave the vehicle as is for 5 hours or more [D].
  13. Turn the ignition switch to ON [E].
  14. Turn the GTS on.
  15. Enter the following menus: Powertrain / Engine / Trouble Codes [F].
  16. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  17. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  18. Input the DTC: P01902A or P019064.
  19. Check the DTC judgment result.

    GTS Display

    Description

    NORMAL

    • DTC judgment completed
    • System normal

    ABNORMAL

    • DTC judgment completed
    • System abnormal

    INCOMPLETE

    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system has a malfunction.
    • If the judgment result is INCOMPLETE, perform steps [B] through [F] again.
    • [A] to [F]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

WIRING DIAGRAM

Refer to DTC P019011.

Click here

CAUTION / NOTICE / HINT

NOTICE:

  • Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the freeze frame data and Vehicle Control History can be useful for troubleshooting.

    Click here

    (Select Powertrain in Health Check and then check the time stamp data.)

  • If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

    Click here

HINT:

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P01902A OR P019064)

(a) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTC P01902A or P019064 is output

A

DTC P01902A or P019064 and P008700, P008800, P017100 or P017200 are output

DTC P01902A or P019064 and other DTCs are output

B

HINT:

  • If DTC P01902A or P019064 and P008700, P008800, P017100 or P017200 are output simultaneously, troubleshoot for DTC P01902A or P019064 first.
  • If any DTCs other than P01902A or P019064 are output, troubleshoot those DTCs first.
B

GO TO DTC CHART

A

2.

CHECK FUEL LEAK

(a) Check around and beneath the vehicle for fuel leaks, fumes, etc.

OK:

No fuel leaks present.

NG

GO TO STEP 11

OK

3.

PERFORM ACTIVE TEST USING GTS (CONTROL THE TARGET FUEL PRESSURE OFFSET)

(a) Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.

(b) Enter the following menus.

Powertrain > Engine > Active Test

Active Test Display

Control the Target Fuel Pressure Offset

Data List Display

Coolant Temperature

High Fuel Pressure Sensor

(c) Check the value of the Data List item "High Fuel Pressure Sensor" when the target fuel pressure is increased and decreased using the Active Test.

Result

Proceed to

"High Fuel Pressure Sensor" value follows the change in target fuel pressure

A

"High Fuel Pressure Sensor" value does not follow the change in target fuel pressure

B

B

GO TO STEP 10

A

4.

CHECK HARNESS AND CONNECTOR (FUEL PRESSURE SENSOR (FOR HIGH PRESSURE SIDE) - ECM)

(a) Disconnect the ECM connector.

(b) Disconnect the fuel pressure sensor (for high pressure side) connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Z3-3 (PR) - C139-97 (PR)

Always

Below 1 Ω

Z3-2 (E2) - C139-96 (EPR)

Always

Below 1 Ω

Z3-3 (PR) or C139-97 (PR) - Body ground and other terminals

Always

10 kΩ or higher

NG

GO TO STEP 8

OK

5.

REPLACE FUEL PRESSURE SENSOR (FOR HIGH PRESSURE SIDE)

Click here

HINT:

Perform "Inspection After Repair" after replacing the fuel pressure sensor (for high pressure side).

Click here

NEXT

6.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

7.

CHECK WHETHER DTC OUTPUT RECURS (DTC P01902A OR P019064)

(a) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(b) Read the pending DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTCs are not output

A

DTC P01902A or P019064 is output

B

A

END

B

GO TO STEP 9

8.

REPAIR OR REPLACE HARNESS OR CONNECTOR

(a) Repair or replace the wire harness or connector.

NEXT

GO TO STEP 12

9.

REPLACE ECM

Click here

NEXT

GO TO STEP 12

10.

REPLACE FUEL PRESSURE SENSOR (FOR HIGH PRESSURE SIDE)

Click here

HINT:

Perform "Inspection After Repair" after replacing the fuel pressure sensor (for high pressure side).

Click here

NEXT

GO TO STEP 12

11.

REPAIR OR REPLACE FUEL LEAK POINT

(a) Repair or replace the fuel leak point.

NEXT

12.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

13.

CHECK WHETHER DTC OUTPUT RECURS (DTC P01902A OR P019064)

(a) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(b) Read the pending DTCs.

Powertrain > Engine > Trouble Codes

OK:

DTCs are not output

NEXT

END
