DESCRIPTION

Variable oil pump control uses the oil pressure control valve assembly, engine oil temperature sensor, oil pressure sensor and ECM to optimize the oil pressure and oil volume required by each component to reduce friction by monitoring the engine temperature and engine speed.

The ECM drives the oil pressure control valve assembly based on the oil pressure measured by the oil pressure sensor. The oil pressure is controlled by operating the oil pressure control valve assembly to regulate the amount of discharge oil.

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	MIL	Note
P052477	Engine Oil Pressure Too Low (Severe)	When the engine is running, the oil pressure value output from the oil pressure sensor is less than the target value (1 trip detection logic).	Oil pressure control valve assembly Oil pump assembly Oil pressure and temperature sensor (oil pressure sensor) The engine oil level is low The engine oil has deteriorated ECM	Comes on	SAE Code: P0524 DTC for Mexico Models: Applies
P15F009	Engine Oil Pressure Too Low (Moderate)	When the engine is running, the oil pressure value output from the oil pressure sensor is less than the target value (1 trip detection logic).	Oil pressure control valve assembly Oil pump assembly Oil pressure and temperature sensor (oil pressure sensor) The engine oil level is low The engine oil has deteriorated ECM	Does not come on	SAE Code: P15F0 DTC for Mexico Models: Applies
P15F077	Engine Oil Pressure Too Low (Minor)	When the engine is running, the oil pressure value output from the oil pressure sensor is less than the target value (1 trip detection logic).	Oil pressure control valve assembly Oil pump assembly Oil pressure and temperature sensor (oil pressure sensor) The engine oil level is low The engine oil has deteriorated ECM	Does not come on	SAE Code: P15F0 DTC for Mexico Models: Applies
P15F109	Variable Oil Pump Component Failure	When the piston oil jets are spraying oil (engine speed is 3000 rpm or more), the oil pressure is less than specified (1 trip detection logic).	Oil pressure control valve assembly Oil pump assembly Oil pressure and temperature sensor (oil pressure sensor) The engine oil level is low The engine oil has deteriorated ECM	Does not come on	SAE Code: P15F1 DTC for Mexico Models: Applies
P15F177	Variable Oil Pump Commanded Position Not Reachable	When the engine is running, the target value and the value output by the oil pressure sensor differ by more than the threshold (1 trip detection logic).	Oil pressure control valve assembly Oil pump assembly Oil pressure and temperature sensor (oil pressure sensor) The engine oil level is low The engine oil has deteriorated ECM	Does not come on	SAE Code: P15F1 DTC for Mexico Models: Applies

Related Data List/Freeze Frame Data

DTC No.	Data List/Freeze Frame Data
P052477	Engine Speed Engine Oil Temperature Sensor Coolant Temperature Engine Oil Pressure Engine Oil Pressure Control Valve Target Engine Oil Pressure
P15F009
P15F077
P15F109
P15F177

MONITOR DESCRIPTION

P052477, P15F009, P15F077 and P15F177:

The ECM monitors the oil pressure based on the signal output from the oil pressure sensor. If it is judged that the actual oil pressure generated by the oil pump assembly is less than the target oil pressure, oil pressure control using the oil pressure control valve assembly is suspended. After a certain period of time has elapsed, if it is judged that the actual oil pressure is low in comparison to the target oil pressure, it is determined that the oil pressure is low and a DTC is stored.

P15F109:

The ECM monitors the oil pressure based on the signal output from the oil pressure sensor. If the oil pressure is less than specified when the piston oil jets are spraying oil (engine speed is 3000 rpm or more), a DTC is stored.

MONITOR STRATEGY

Related DTCs	P0524: Oil pressure control system (oil pressure low)
Required Sensors/Components (Main)	Oil pressure sensor
Required Sensors/Components (Related)	-
Frequency of Operation	Once per driving cycle
Duration	Less than 30 seconds
MIL Operation	immediate
Sequence of Operation	None

TYPICAL ENABLING CONDITIONS

P0524:

Monitor runs whenever the following DTCs are not stored	None
Both of the following conditions are met	-
Engine speed	1500 rpm or higher
Engine coolant temperature	0°C (32°F) or higher

TYPICAL MALFUNCTION THRESHOLDS

P0524:

Engine oil pressure

Less than threshold value

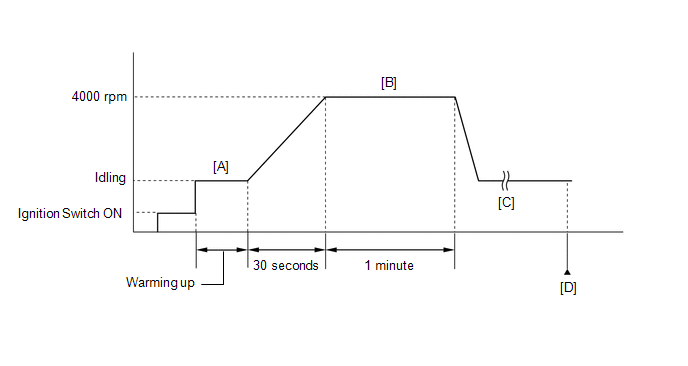

CONFIRMATION DRIVING PATTERN

HINT:

• After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

  Click here

• When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

  Click here

1. Connect the GTS to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the GTS on.
4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
5. Turn the ignition switch off and wait for at least 30 seconds.
6. Turn the ignition switch to ON.
7. Turn the GTS on.
8. Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher with all the accessories switched off [A].
9. When the vehicle is stationery, gradually depress the accelerator pedal to increase the engine speed to 4000 rpm over a 30 second period, run the engine speed at 4000 rpm for 1 minute, then release the accelerator pedal to return to the idling speed [B].
10. Repeat step [B] 3 times or more [C].
11. Enter the following menus: Powertrain / Engine / Trouble Codes [D].
12. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
13. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
14. Input the DTC: P052477, P15F009, P15F077, P15F109 or P15F177.
15. Check the DTC judgment result.

    GTS Display	Description
    NORMAL	DTC judgment completed System normal
    ABNORMAL	DTC judgment completed System abnormal
    INCOMPLETE	DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system is malfunctioning.
    • If the judgment result is INCOMPLETE, perform steps [B] through [D] again.
    • [A] to [D]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

WIRING DIAGRAM

Refer to DTC P06DA13.

Click here

CAUTION / NOTICE / HINT

HINT:

• When DTC P052477 is stored, it is determined that the engine oil pressure is low (severe) and the maximum engine speed is limited.
• When DTC P15F009 is stored, it is determined that the engine oil pressure is low (moderate) and the maximum engine speed is limited.
• When DTC P15F077 is stored, it is determined that the engine oil pressure is low (minor) and the maximum engine speed is limited.
• If the engine oil level is sufficient but a low engine oil level DTC is output, confirm with the customer whether engine oil was added after the vehicle had been driven with a low engine oil level.
• A DTC may be stored if the engine oil in the oil passages was contaminated with foreign matter, etc., in the past, as the ECM performs compulsory control of the oil pressure control valve assembly to remove foreign matter from the oil pressure control valve assembly.
• If an incorrect engine oil viscosity is used, a DTC related to low oil pressure, etc., may be stored.
• Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.	CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P052477, P15F009, P15F077, P15F109 AND/OR P15F177)

(a) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result	Proceed to
DTC P052477, P15F009, P15F077, P15F109 and/or P15F177 is output	A
DTC P052477, P15F009, P15F077, P15F109 and/or P15F177 and other DTCs are output	B

HINT:

If any DTCs other than P052477, P15F009, P15F077, P15F109 and/or P15F177 are output, troubleshoot those DTCs first.

B

GO TO DTC CHART

A

2.	CHECK ENGINE OIL LEVEL

(a) Check the engine oil level.

Click here

(b) Check the state of the oil level warning.

Result	Proceed to
Engine oil level is within the specified range and oil level warning is not displayed	A
Engine oil level is low and oil level warning is displayed	B

HINT:

If the oil level warning is not displayed even though the engine oil level is below the Low mark, or the oil level warning is displayed even though the engine oil level is within the specified range, inspect the oil level sensor and related parts.

B

GO TO STEP 5

A

3.	CHECK ENGINE OIL QUALITY

(a) Check the engine oil quality.

Click here

(b) Check that the engine oil is not contaminated with water, deteriorated, discolored or excessively thin.

OK:

The engine oil is not contaminated with water, deteriorated, discolored or excessively thin.

OK

GO TO STEP 7

NG

4.	REPLACE ENGINE OIL

Click here

HINT:

If the oil filter has exceeded the replacement period, replace the oil filter at the same time.

NEXT

GO TO STEP 7

5.	CHECK FOR ENGINE OIL LEAK

OK:

There are no engine oil leaks.

HINT:

If there are engine oil leaks, perform the following steps after repairing or replacing the malfunctioning parts.

NEXT

6.	ADD ENGINE OIL

NOTICE:

Do not add engine oil to above the full level mark.

NEXT

7.

CLEAR DTC

(a) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

8.	CHECK WHETHER DTC OUTPUT RECURS (DTC P052477, P15F009, P15F077, P15F109 AND/OR P15F177)

(a) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(b) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result	Proceed to
DTC P052477, P15F009, P15F077, P15F109 and/or P15F177 is output	A
DTCs are not output	B

A

GO TO STEP 10

B

9.	READ VALUE USING GTS (ENGINE OIL PRESSURE)

(a) Enter the following menus.

Powertrain > Engine > Data List

Tester Display
Engine Speed
Engine Oil Temperature Sensor
Engine Oil Pressure

(b) Start the engine and warm it up until the engine oil temperature is 75 to 85°C (167 to 185°F).

(c) According to the display on the GTS, read the Data List.

Standard

Engine Speed	Engine Oil Temperature Sensor	Engine Oil Pressure
1000 rpm	75 to 85°C (167 to 185°F)	80 kPa(gauge) [12 psi(gauge)] or higher
2000 rpm		80 kPa(gauge) [12 psi(gauge)] or higher
3000 rpm		200 kPa(gauge) [29 psi(gauge)] or higher

OK

END

NG

10.	PERFORM ACTIVE TEST USING GTS (ACTIVATE THE ENGINE OIL PRESSURE CONTROL VALVE)

(a) Remove the rear engine under cover RH.

Click here

(b) Enter the following menus.

Powertrain > Engine > Active Test

Tester Display
Activate the Engine Oil Pressure Control Valve

(c) Set the Active Test item "Activate the Engine Oil Pressure Control Valve" to 900.00 mA and confirm that the oil pressure control valve assembly makes an operation sound when the oil pressure control valve assembly connector is disconnected and reconnected.

OK:

An operation sound can be heard

HINT:

• Be sure to clear the DTCs after performing the inspection as DTCs may be stored when the oil pressure control valve assembly connector is disconnected.
• As the maximum operating current of the oil pressure control valve is 1000 mA, it is necessary to operate the oil pressure control valve within this range when setting the Active Test item "Activate the Engine Oil Pressure Control Valve" (If the Active Test request value exceeds 1000 mA, the Active Test will be suspended).
• If the Active Test value exceeds 1000 mA, reselect the value as the Active Test will be suspended.

NG

GO TO STEP 13

OK

11.	READ VALUE USING GTS (ENGINE OIL PRESSURE)

(a) Disconnect the oil pressure control valve assembly connector.

(b) Enter the following menus.

Powertrain > Engine > Data List

Tester Display
Engine Speed
Engine Oil Temperature Sensor
Engine Oil Pressure

(c) Start the engine and warm it up until the engine oil temperature is 75 to 85°C (167 to 185°F).

(d) According to the display on the GTS, read the Data List.

Standard

Engine Speed	Engine Oil Temperature Sensor	Engine Oil Pressure
1000 rpm	75 to 85°C (167 to 185°F)	100 kPa(gauge) [15 psi(gauge)] or higher
2000 rpm		200 kPa(gauge) [29 psi(gauge)] or higher
3000 rpm		300 kPa(gauge) [44 psi(gauge)] or higher

HINT:

• By disconnecting the oil pressure control valve assembly connector, the non-regulated oil pressure can be measured.
• Be sure to clear the DTCs after performing the inspection as DTCs may be stored when the oil pressure control valve assembly connector is disconnected.

OK

REPLACE OIL PRESSURE CONTROL VALVE ASSEMBLY

NG

12.	CHECK ENGINE OIL PRESSURE

(a) Install the oil pressure gauge with adapter.

Click here

(b) Disconnect the oil pressure control valve assembly connector.

(c) Start the engine.

(d) Enter the following menus.

Powertrain > Engine > Data List

Tester Display
Engine Speed
Coolant Temperature

HINT:

When the engine oil pressure and temperature sensor is removed, the engine oil temperature cannot be checked, so refer to "Coolant Temperature".

(e) Maintain "Coolant Temperature" at 90 to 95°C (194 to 203°F) for 3 minutes, and then read the oil pressure gauge value at 1000 rpm, 2000 rpm and 3000 rpm.

HINT:

• Race the engine as necessary to maintain "Coolant Temperature" at 90 to 95°C (194 to 203°F).
• If maintained for 3 minutes or more, the engine oil temperature may exceed 85°C (185°F).

Standard

Engine Speed	Coolant Temperature	Engine oil pressure gauge value
1000 rpm	Maintained at 90 to 95°C (194 to 203°F) for 3 minutes (Reference) Engine oil temperature: 75 to 85°C (167 to 185°F)	100 kPa (1.0 kgf/cm2, 15 psi) or higher
2000 rpm		200 kPa (2.0 kgf/cm2, 29 psi) or higher
3000 rpm		300 kPa (3.1 kgf/cm2, 44 psi) or higher

HINT:

Be sure to clear the DTCs after reinstalling the oil pressure and temperature sensor or reconnecting the oil pressure and temperature sensor or oil pressure control valve assembly connector, as DTCs may be stored.

OK

REPLACE OIL PRESSURE AND TEMPERATURE SENSOR

NG

REPLACE OIL PUMP ASSEMBLY

13.	INSPECT OIL PRESSURE CONTROL VALVE ASSEMBLY

Click here

NG

REPLACE OIL PRESSURE CONTROL VALVE ASSEMBLY

OK

14.	CHECK HARNESS AND CONNECTOR (OIL PRESSURE CONTROL VALVE ASSEMBLY - ECM)

(a) Disconnect the oil pressure control valve assembly connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
C43-1 - C76-21 (VOP+)	Always	Below 1 Ω
C43-2 - C76-20 (VOP-)	Always	Below 1 Ω
C43-1 or C76-21 (VOP+) - Body ground and other terminals	Always	10 kΩ or higher
C43-2 or C76-20 (VOP-) - Body ground and other terminals	Always	10 kΩ or higher

OK

REPLACE ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
