Toyota Corolla Cross: Disposal

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Door / Hatch / Back Door Support / Disposal

DISPOSAL

PROCEDURE

1. DISPOSE OF BACK DOOR STAY ASSEMBLY

NOTICE:

Make sure the piston rods are in the fully extended stake before performing work.

(a) Secure the back door stay assembly horizontally in a vise with the piston rod pulled out.

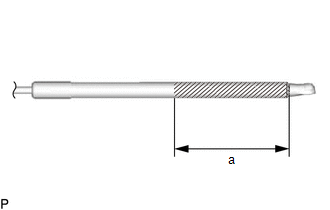

(b) Wearing safety glasses, gradually cut a part within the area (a) shown in the illustration using a metal saw to release the gas.

Specification:

Area

Measurement

a

130 mm ( 5.12 in.)

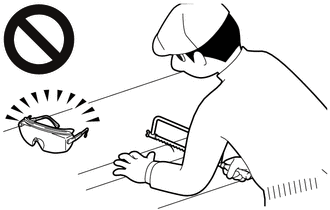

CAUTION:

Always use proper safety equipment and be careful when drilling because shards of metal may fly about.

HINT:

The gas is colorless, odorless and non-poisonous.
