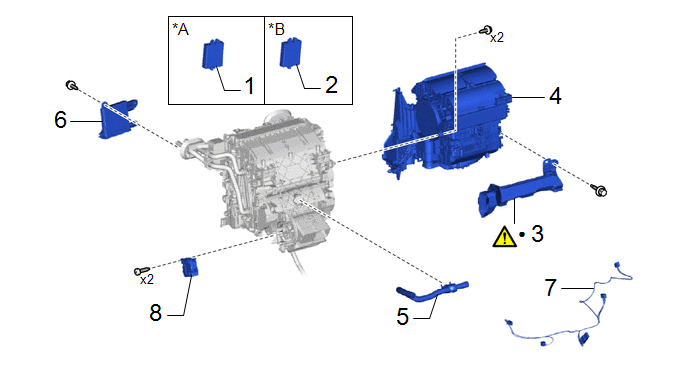

Toyota Corolla Cross: Disassembly

1

TRANSPONDER KEY ECU ASSEMBLY

89780

-

-

-

2

IMMOBILIZER CODE ECU

89784

-

-

-

3

NO. 2 AIR DUCT

87211A

-

-

4

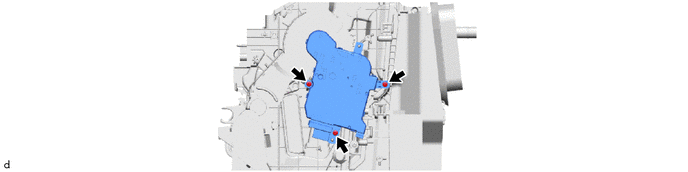

BLOWER ASSEMBLY

87130D

-

-

-

5

ASPIRATOR

88897P

-

-

-

6

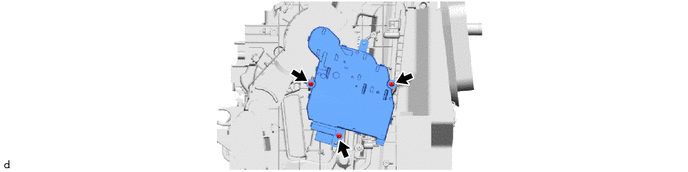

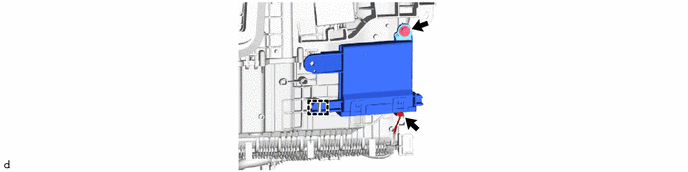

AIR CONDITIONING AMPLIFIER ASSEMBLY

88650N

-

-

-

7

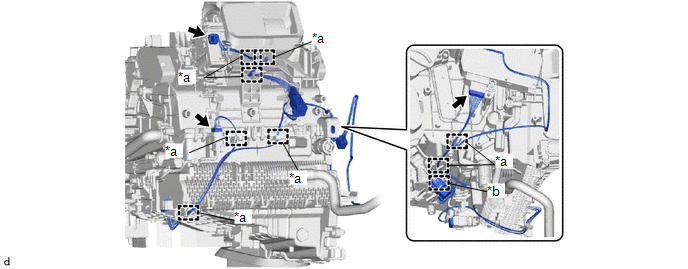

AIR CONDITIONING HARNESS ASSEMBLY

82210K

-

-

-

8

NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY

87050D

-

-

-

*A

w/ Transponder ECU

*B

w/ ID Code Box

●

Non-reusable part

-

-

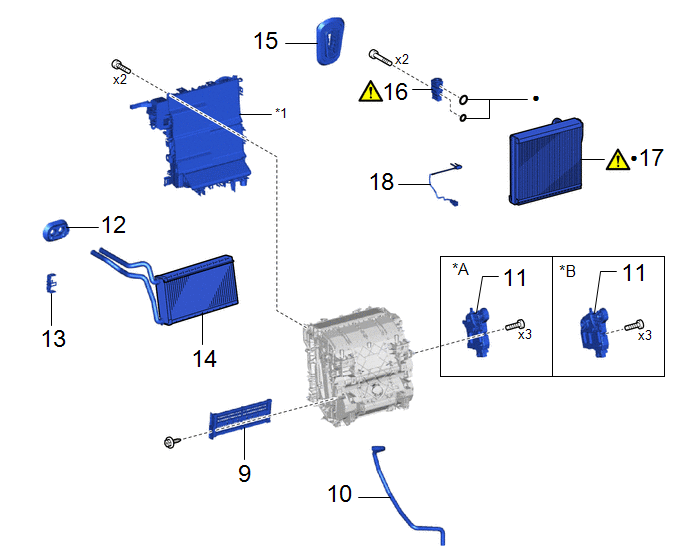

9

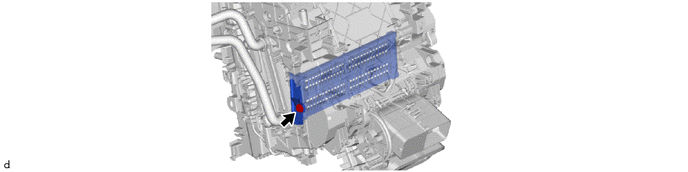

HEATER COVER

87114B

-

-

-

10

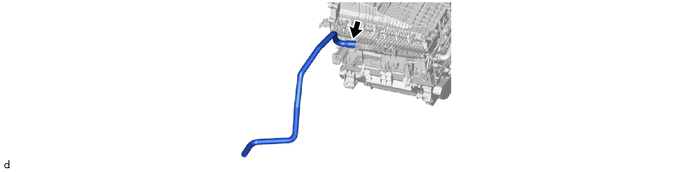

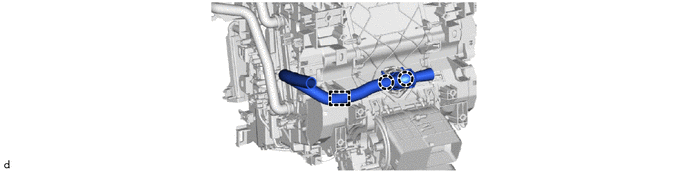

DRAIN COOLER HOSE

88539J

-

-

-

11

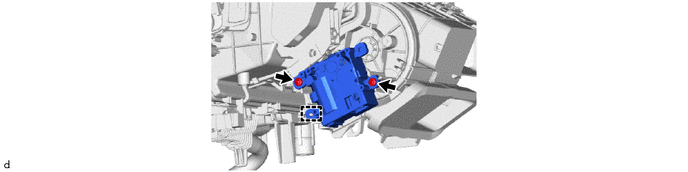

NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY

87050C

-

-

-

12

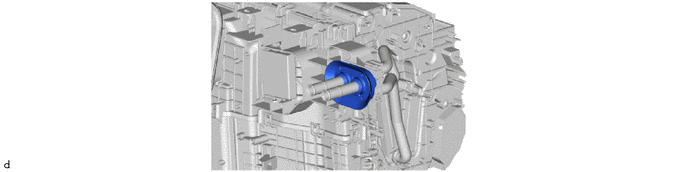

HEATER PIPE GROMMET

88897M

-

-

-

13

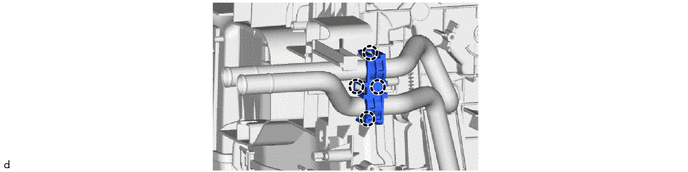

HEATER CLAMP

87124B

-

-

-

14

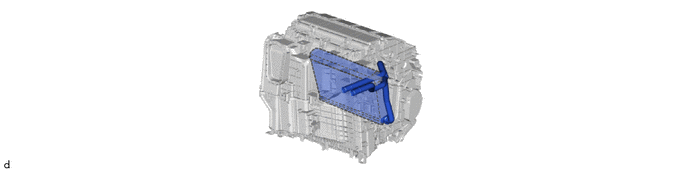

HEATER RADIATOR UNIT SUB-ASSEMBLY

87107A

-

-

-

15

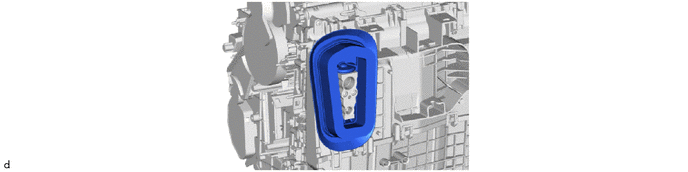

COOLER PIPE GROMMET

88897K

-

-

-

16

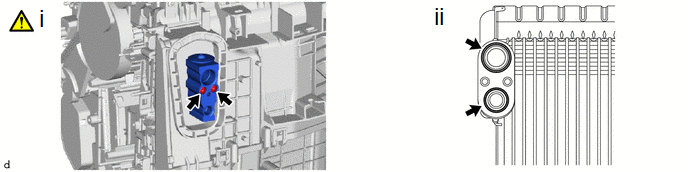

COOLER EXPANSION VALVE

88515

-

-

17

NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY

88501

-

-

18

NO. 1 COOLER THERMISTOR

88625

-

-

-

*A

for Single Type

*B

for Dual Type

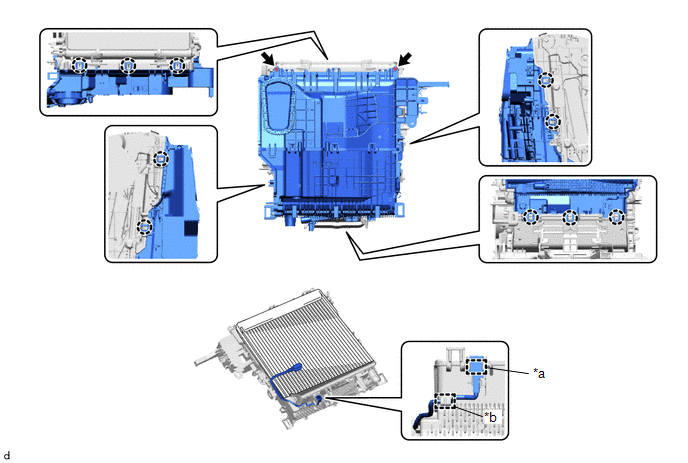

*1

UPPER HEATER CASE

-

-

●

Non-reusable part

-

-

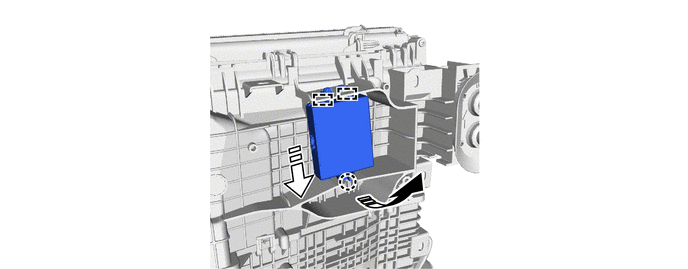

Remove in this Direction (1)

Remove in this Direction (2)

Remove in this Direction (1)

Remove in this Direction (2)

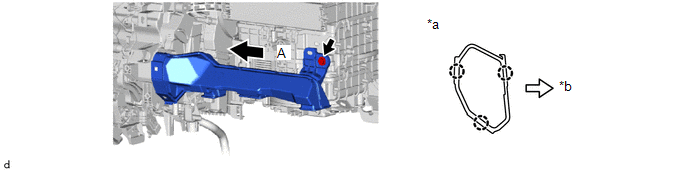

NOTICE:

Be careful not to deform or damage the lower heater case of the air conditioner unit assembly when removing the No. 2 air duct.

*a

View A

*b

Front

*a

Guide

*b

Clamp

NOTICE:

When the No. 1 cooler evaporator sub-assembly is removed, make sure to install a new one. The No. 1 cooler evaporator sub-assembly cannot be reused.

*a

Clamp

*b

Guide
