Toyota Corolla Cross: Disassembly

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Lighting (ext) / Rear Combination Light Assembly / Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

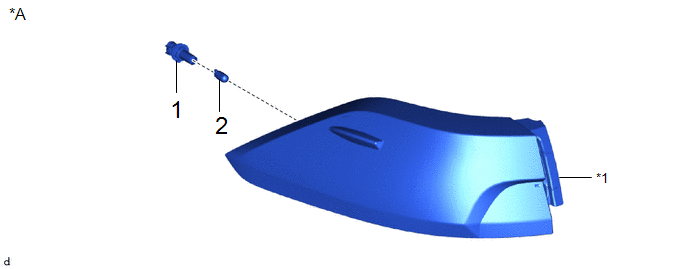

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

REAR SIDE MARKER LIGHT SOCKET

-

-

-

-

2

REAR SIDE MARKER LIGHT BULB

81550S

-

-

-

*A

for Bulb Type Clearance Light

-

-

*1

REAR COMBINATION LIGHT LENS AND BODY

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

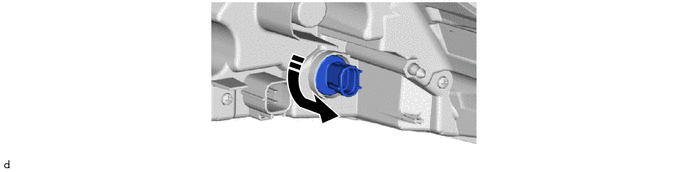

1. REMOVE REAR SIDE MARKER LIGHT SOCKET (for Bulb Type Clearance Light)

Remove in this Direction

-

-

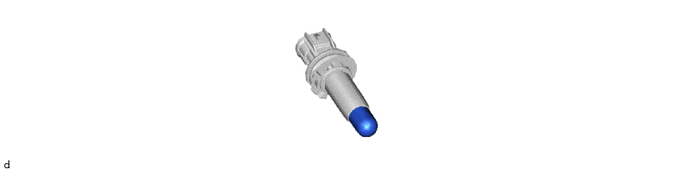

2. REMOVE REAR SIDE MARKER LIGHT BULB (for Bulb Type Clearance Light)
