DISASSEMBLY

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during cylinder block removal/installation are shown below.

CAUTION / NOTICE / HINT

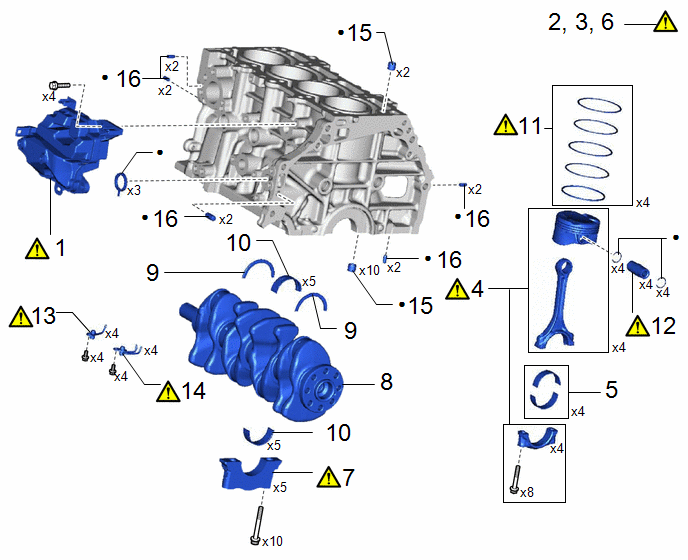

Procedure		Part Name Code
1	NO. 1 VENTILATION CASE	12211		-	-
2	INSPECT CONNECTING ROD THRUST CLEARANCE	-		-	-
3	INSPECT CONNECTING ROD OIL CLEARANCE	-		-	-
4	PISTON WITH CONNECTING ROD	-		-	-
5	CONNECTING ROD BEARING	-	-	-	-
6	INSPECT CRANKSHAFT THRUST CLEARANCE	-		-	-
7	CRANKSHAFT BEARING CAP	-		-	-
8	CRANKSHAFT	13411	-	-	-
9	CRANKSHAFT THRUST WASHER	11791	-	-	-
10	CRANKSHAFT BEARING	-	-	-	-
11	PISTON RING SET	13011		-	-
12	PISTON PIN	13101A		-	-
13	NO. 1 OIL NOZZLE SUB-ASSEMBLY	15708		-	-
14	NO. 2 OIL NOZZLE SUB-ASSEMBLY	15709		-	-
15	RING PIN	11115A	-	-	-
16	STRAIGHT PIN	11434Q	-	-	-

PROCEDURE

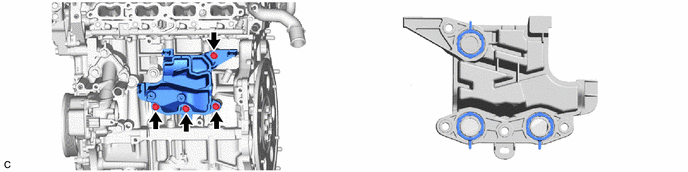

1. REMOVE NO. 1 VENTILATION CASE

CAUTION: Do not disassembly except if the No. 1 ventilation case to be damaged.

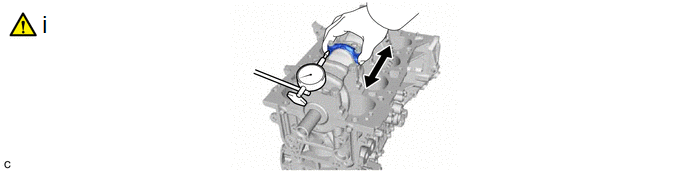

2. INSPECT CONNECTING ROD THRUST CLEARANCE

(1) Using a dial indicator, measure the thrust clearance while moving the connecting rod sub-assembly back and forth.

Standard Thrust Clearance:

0.160 to 0.512 mm (0.00630 to 0.0202 in.)

Maximum Thrust Clearance:

0.512 mm (0.0202 in.)

HINT:

If the thrust clearance is more than the maximum, replace the connecting rod. If necessary, replace the crankshaft.

3. INSPECT CONNECTING ROD OIL CLEARANCE

(1) Note the alignment marks on the connecting rod and connecting rod cap so that they can be reinstalled to their original locations.

(2) Using an E12 "TORX" socket wrench, remove the 2 connecting rod bolts and connecting rod cap.

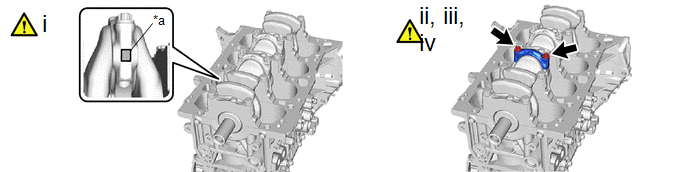

(3) Clean the crank pin and connecting rod bearing.

NOTICE:

Check the crank pin and connecting rod bearing for pitting and scratches.

HINT:

If the crank pin or connecting rod bearing is damaged, replace the connecting rod bearings. If necessary, replace the crankshaft.

(4) Check the crank pin and connecting rod bearing for pitting and scratches.

HINT:

If the crank pin or connecting rod bearing is damaged, replace the connecting rod bearings. If necessary, replace the crankshaft.

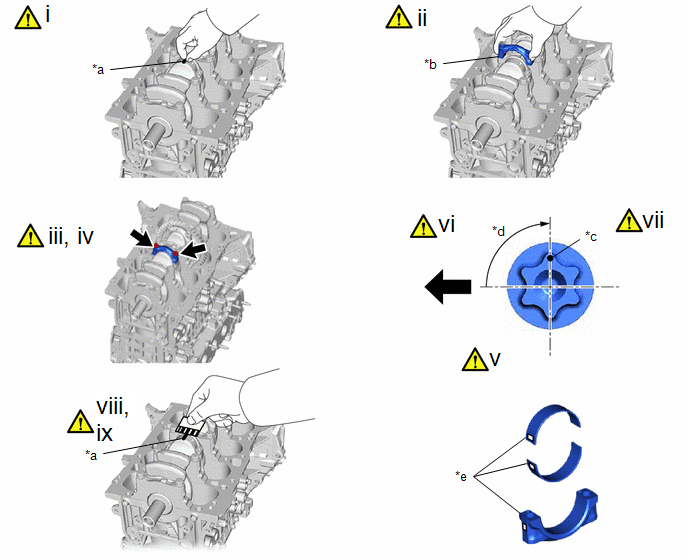

*a	Plastigage	*b	Front Mark
*c	Paint Mark	*d	90°
*e	1, 2 or 3 Mark	-	-
	Front of Engine	-	-

(1) Lay a strip of Plastigage on the crank pin.

(2) Check that the front mark of the connecting rod cap is facing the correct direction, and install the connecting rod cap to the connecting rod.

(3) Apply a light coat of engine oil to the threads and under the heads of the 2 connecting rod bolts.

(4) Using an E12 "TORX" socket wrench, install and alternately tighten the 2 connecting rod bolts in several steps.

Torque:

38 N·m {387 kgf·cm, 28 ft·lbf}

(5) Mark the front of each connecting rod bolt with paint.

(6) Tighten the connecting rod bolts 90° as shown in the illustration.

NOTICE:

Do not turn the crankshaft during the measurement.

(7) Remove the 2 connecting rod bolts and connecting rod cap.

HINT:

Keep the connecting rod bearing and connecting rod cap together.

(8) Measure the Plastigage at its widest point.

Standard Oil Clearance:

0.032 to 0.065 mm (0.00126 to 0.00256 in.)

Maximum Oil Clearance:

0.065 mm (0.00256 in.)

HINT:

• If the oil clearance is more than the maximum, replace the connecting rod bearings. If necessary, replace the crankshaft.
• If replacing a connecting rod bearing, select a new one with the same number as marked on the connecting rod cap. There are 3 sizes of standard connecting rod bearings, marked "1", "2" or "3" accordingly.

Standard Connecting Rod Big End Inside Diameter:

Standard Connecting Rod Bearing Center Wall Thickness:

Standard Crank Pin Diameter:

47.992 to 48.000 mm (1.88945 to 1.88976 in.)

NOTICE:

Remove the Plastigage completely after the measurement.

(9) Perform the inspection above for each cylinder.

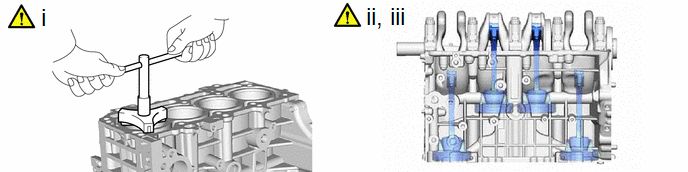

4. REMOVE PISTON WITH CONNECTING ROD

(1) Using a ridge reamer, remove all the carbon from the top of each cylinder.

(2) Remove the 8 connecting rod bolts, 4 connecting rod caps and 4 connecting rod bearings.

(3) Push the 4 pistons, 4 connecting rods and 4 connecting rod bearings out through the top of the cylinder block sub-assembly.

HINT:

• Keep the connecting rod bearings, connecting rods and connecting rod caps together.
• Arrange the removed parts in such a way that they can be reinstalled to their original locations.

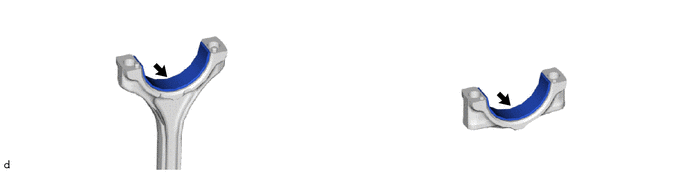

5. REMOVE CONNECTING ROD BEARING

6. INSPECT CRANKSHAFT THRUST CLEARANCE

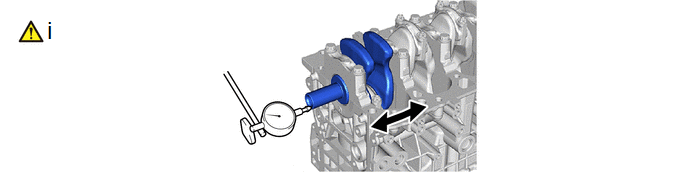

(1) Using a dial indicator, measure the crankshaft thrust clearance while prying the crankshaft back and forth with a screwdriver.

Standard Thrust Clearance:

0.02 to 0.22 mm (0.000787 to 0.00866 in.)

Maximum Thrust Clearance:

0.22 mm (0.00866 in.)

HINT:

If the thrust clearance is more than the maximum, replace the crankshaft thrust washers as a set. If necessary, replace the crankshaft.

Standard Thrust Washer Thickness:

2.415 to 2.470 mm (0.0951 to 0.0972 in.)

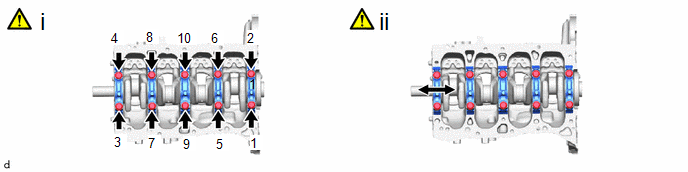

7. REMOVE CRANKSHAFT BEARING CAP

(1) Uniformly loosen and remove the 10 crankshaft bearing cap set bolts in several steps in the order shown in the illustration.

(2) Using the 2 removed crankshaft bearing cap set bolts, remove the 5 crankshaft bearing caps from the cylinder block sub-assembly by wiggling each crankshaft bearing cap back and forth.

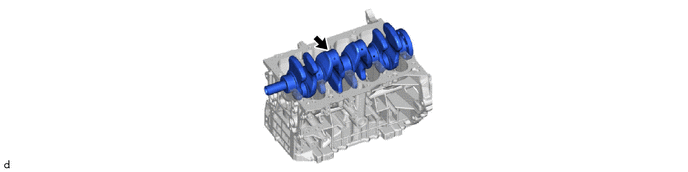

8. REMOVE CRANKSHAFT

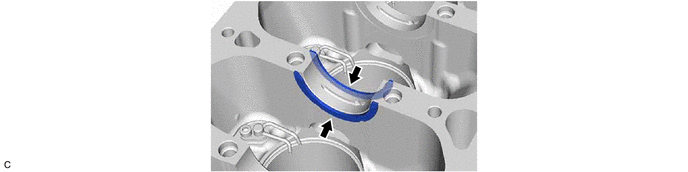

9. REMOVE CRANKSHAFT THRUST WASHER

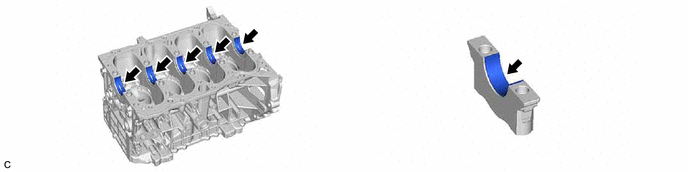

10. REMOVE CRANKSHAFT BEARING

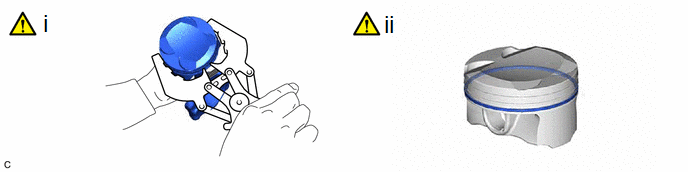

11. REMOVE PISTON RING SET

(1) Using a piston ring expander, remove the No. 1 compression ring and No. 2 compression ring from the piston.

(2) Remove the oil ring expander, upper side rail and lower side rail from the piston by hand.

HINT:

Arrange the removed parts in such a way that they can be reinstalled to their original locations.

12. REMOVE PISTON PIN

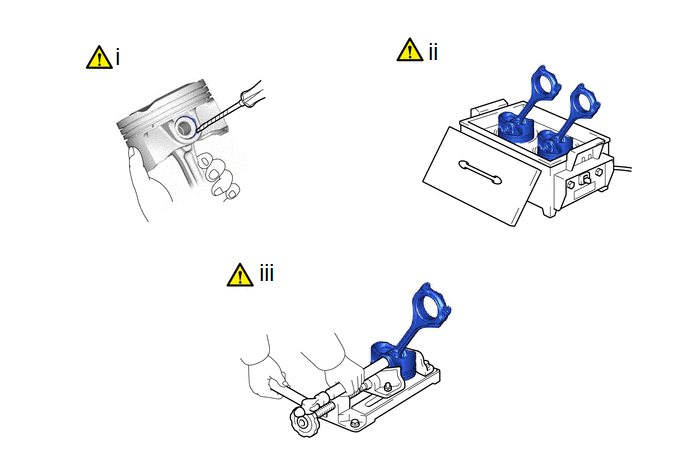

(1) Using a screwdriver, pry out the 2 piston pin hole snap rings from the piston.

HINT:

Tape the screwdriver tip before use.

(2) Gradually heat each piston to between 80 and 90°C (176 and 194°F).

CAUTION:

Be sure to wear protective gloves.

(3) Using a brass bar and a hammer, lightly tap out the piston pin and remove the connecting rod.

HINT:

• The piston and piston pin are a matched set.
• Arrange the removed parts in such a way that they can be reinstalled to their original locations.

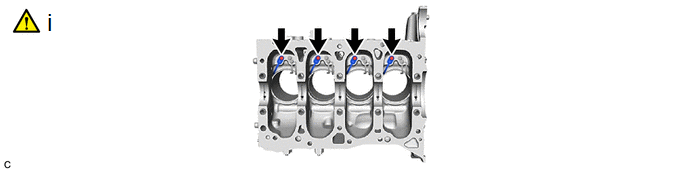

13. REMOVE NO. 1 OIL NOZZLE SUB-ASSEMBLY

(1) Using a 5 mm hexagon wrench, remove the 4 bolts and 4 No. 1 oil nozzle sub-assemblies from the cylinder block sub-assembly.

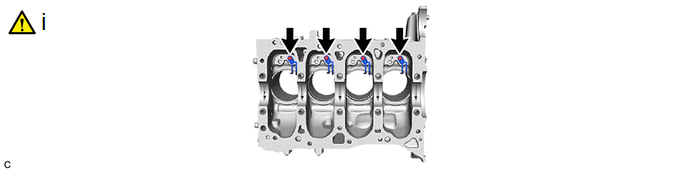

14. REMOVE NO. 2 OIL NOZZLE SUB-ASSEMBLY

(1) Using a 5 mm hexagon wrench, remove the 4 bolts and 4 No. 2 oil nozzle sub-assemblies from the cylinder block sub-assembly.

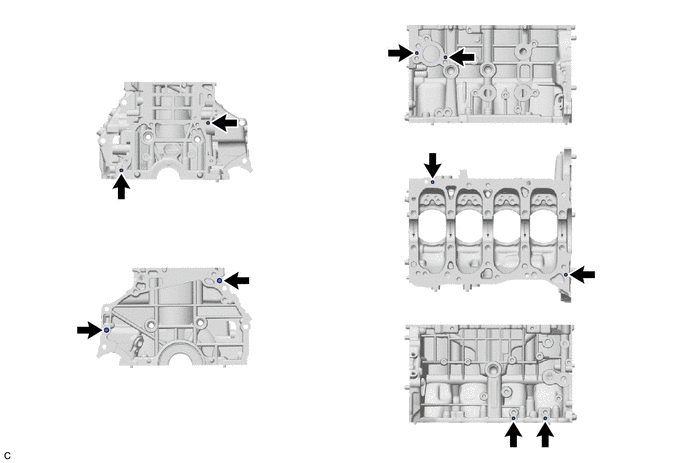

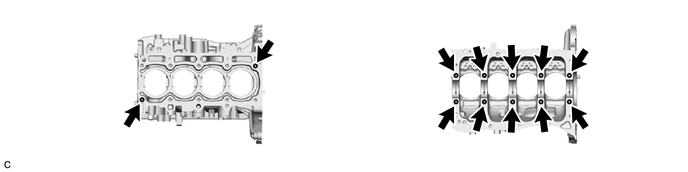

15. REMOVE RING PIN

16. REMOVE STRAIGHT PIN
