Toyota Corolla Cross: Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

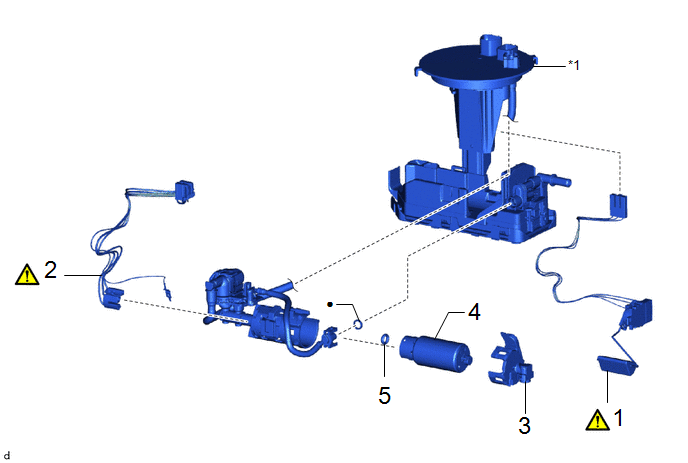

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

FUEL SENDER GAUGE ASSEMBLY

83320

-

-

2

WIRE HARNESS

77785

-

-

3

NO. 2 FUEL SUCTION SUPPORT

77175

-

-

-

4

FUEL PUMP

23221

-

-

-

5

FUEL PUMP SPACER

23225A

-

-

-

*1

FUEL SUCTION PLATE SUB-ASSEMBLY

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

NOTICE:

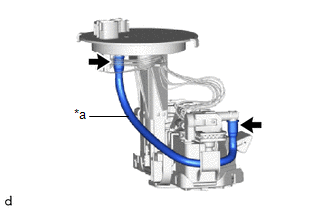

Do not disconnect the tube shown in the illustration when disassembling the fuel suction tube with pump and gauge assembly. Doing so will cause reassembly of the fuel suction tube with pump and gauge assembly to be impossible as the tube is pressed into the fuel suction plate sub-assembly.

*a

Tube

PROCEDURE

1. REMOVE FUEL SENDER GAUGE ASSEMBLY

Click here

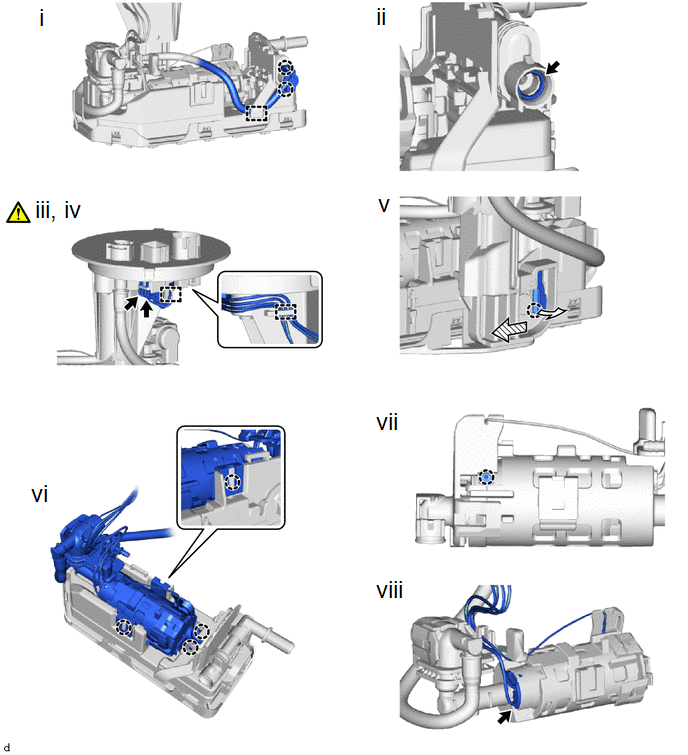

2. REMOVE WIRE HARNESS

Fuel Pump Harness Connector

Pull

Slide

-

-

(1) Detach the 2 claws and clamps and disconnect the tube from the fuel sub-tank subassembly.

(2) Remove the O-ring from the fuel sub-tank subassembly.

(3) Disengage the clamp to disconnect the fuel pump harness from the fuel suction plate subassembly.

NOTICE:

  • Do not damage the wire harness.
  • When disengaging each wire harness from the clamp, disengage one wire at a time.

(4) Disconnect the 2 fuel pump harness connectors.

(5) Disengage the claw and slide the fuel suction plate sub-assembly and then separate it from thefuel sub-tank sub-assembly.

(6) Disengage the 4 claws and remove the fuel suction plate sub-assembly from the fuel sub-tank sub-assembly.

(7) Disengage the claw and disconnect the fuel pump harness.

(8) Disconnect the fuel pump harness connector.

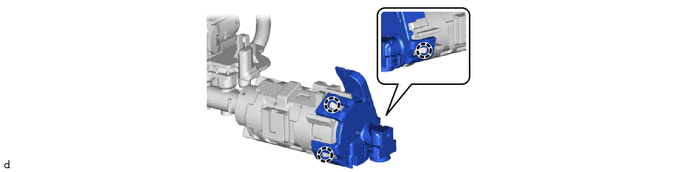

3. REMOVE NO. 2 FUEL SUCTION SUPPORT

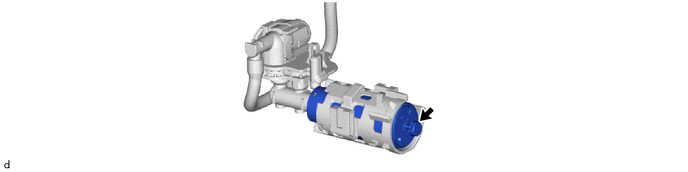

4. REMOVE FUEL PUMP

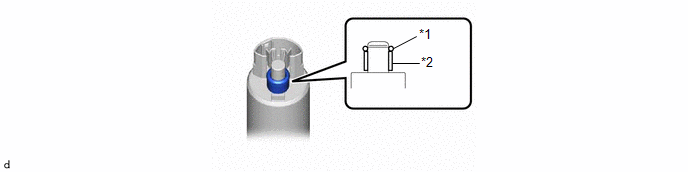

5. REMOVE FUEL PUMP SPACER

*1

O-ring

*2

Fuel Pump Spacer
