Toyota Corolla Cross (2022-2025) Service Manual / Drivetrain / Axle And Differential / Rear Differential Carrier Oil Seal / Components

COMPONENTS

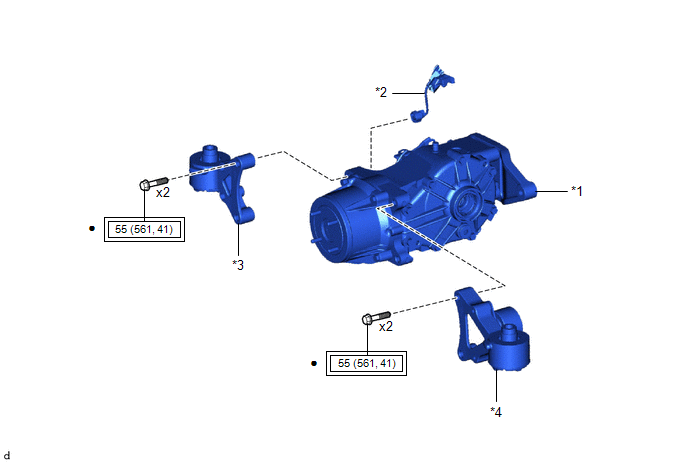

ILLUSTRATION

*1

REAR DIFFERENTIAL CARRIER ASSEMBLY

*2

NO. 7 FLOOR WIRE

*3

REAR NO. 1 DIFFERENTIAL SUPPORT

*4

REAR NO. 2 DIFFERENTIAL SUPPORT

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

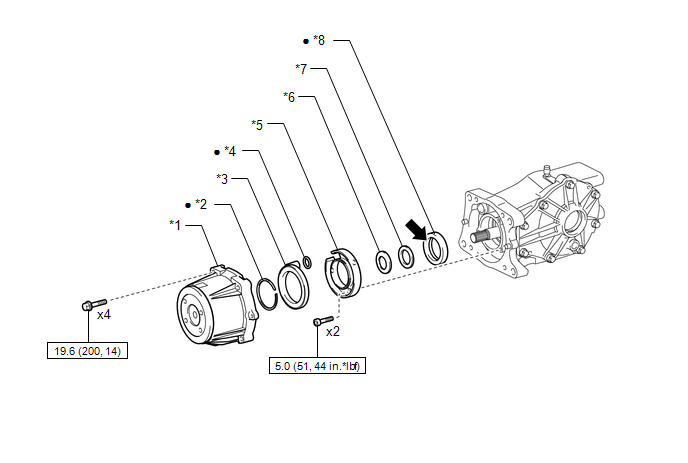

ILLUSTRATION

*1

TRANSMISSION COUPLING ASSEMBLY

*2

SNAP RING

*3

4WD LINEAR SOLENOID

*4

O-RING

*5

YOKE

*6

TRANSMISSION COUPLING CONICAL SPRING WASHER

*7

TRANSMISSION COUPLING SHIM

*8

DIAPHRAGM OIL SEAL

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

MP grease

-

-
