Toyota Corolla Cross: Check Bus 3 Line
DESCRIPTION
|
Symptom |
Trouble Area |
|---|---|
|
There are ECUs or sensors that display a communication stop on the bus diagnostic screen. Or, there are ECUs or sensors that store a communication stop history on the "Detail" screen. |
|

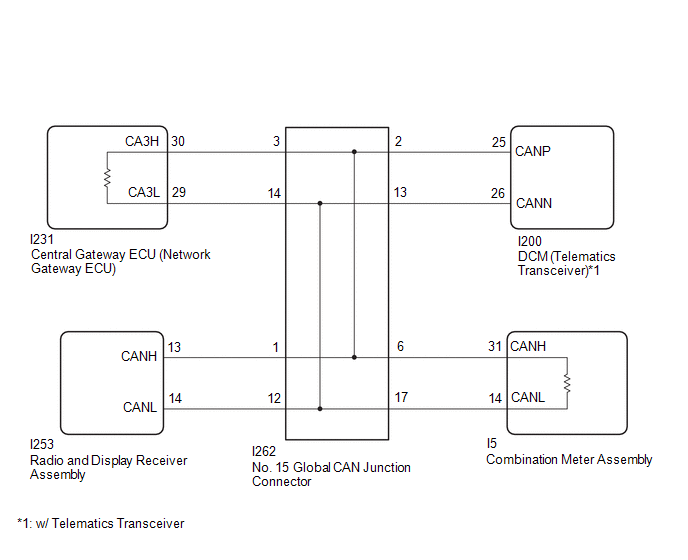

WIRING DIAGRAM
CAUTION / NOTICE / HINT
CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
NOTICE:
- Because the order of diagnosis is important to allow correct diagnosis,
make sure to begin troubleshooting using How to Proceed with Troubleshooting
when CAN communication system related DTCs are output.
Click here
.gif)
- Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.
- After the ignition switch is turned off, there may be a waiting time before
disconnecting the negative (-) auxiliary battery terminal.
Click here
- When disconnecting and reconnecting the auxiliary battery.
HINT:
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
Click here
- Some parts must be initialized and set when replacing or removing and installing
parts.
Click here
- After performing repairs, perform the DTC check procedure and confirm that
the DTCs are not output again.
DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.
- After the repair, perform the CAN bus check and check that all the ECUs
and sensors connected to the CAN communication system are displayed as normal.
Click here
- Before replacing the DCM (telematics transceiver), refer to Registration.
Click here
HINT:
- Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.
- When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.
PROCEDURE
|
1. |
CHECK FOR OPEN IN CAN MAIN BUS LINES |
(a) Disconnect the cable from the negative (-) auxiliary battery terminal.
|
(b) Measure the resistance according to the value(s) in the table below. Standard Resistance:
|
|
| NG | .gif) |
GO TO STEP 32 |
|
.gif)
|
2. |
CHECK FOR SHORT IN CAN BUS LINES |
|
(a) Measure the resistance according to the value(s) in the table below. Standard Resistance:
|
|
| NG | |
GO TO STEP 23 |
|
|
3. |
CHECK FOR SHORT TO +B IN CAN BUS LINE |

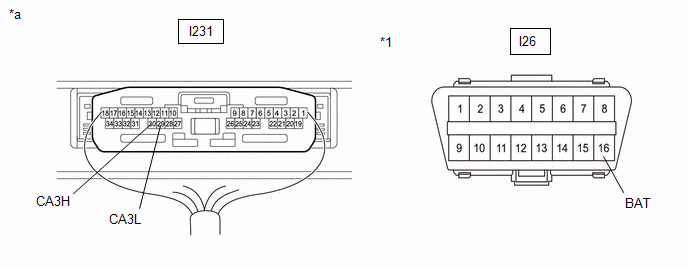

(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |

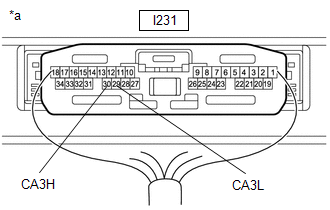

Component with harness connected (Central Gateway ECU (Network Gateway ECU)) |
- |
- |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I231-30 (CA3H) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
I231-29 (CA3L) - I26-16 (BAT) |
| NG | |
GO TO STEP 14 |
|
|
4. |
CHECK FOR SHORT TO GND IN CAN BUS LINE |

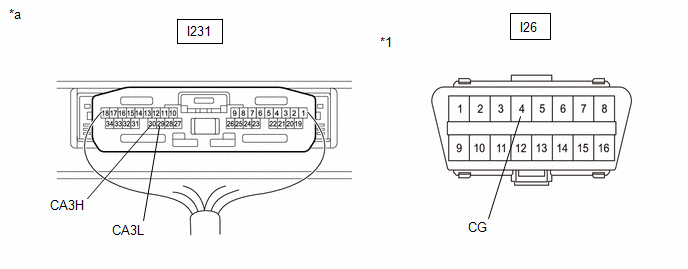

(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Component with harness connected (Central Gateway ECU (Network Gateway ECU)) |
- |
- |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I231-30 (CA3H) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
I231-29 (CA3L) - I26-4 (CG) |
| OK | |
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
|
|
5. |

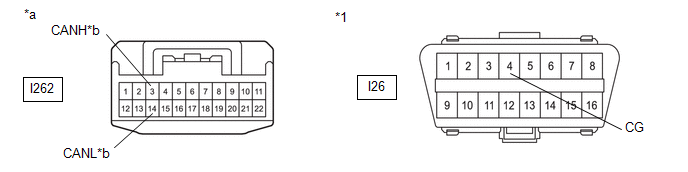

CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
(a) Disconnect the No. 15 global CAN junction connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Central Gateway ECU (Network Gateway ECU) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-3 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
I262-14 (CANL) - I26-4 (CG) |
| NG | |
GO TO STEP 10 |
|
|
6. |

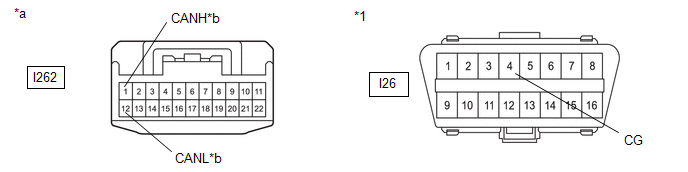

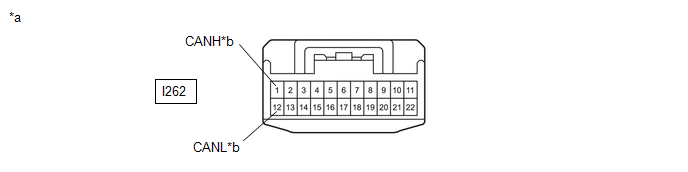

CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY) |

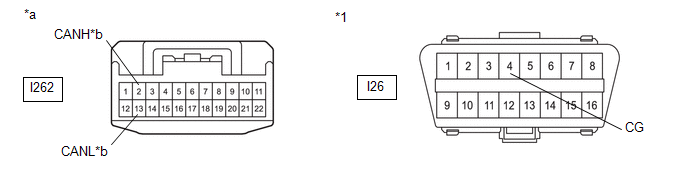

(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Radio and Display Receiver Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-1 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
I262-12 (CANL) - I26-4 (CG) |
| NG | |
GO TO STEP 11 |
|
|
7. |
CHECK VEHICLE TYPE |
(a) Check for vehicle type.
|
Result |
Proceed to |
|---|---|
|
w/ Telematics Transceiver |
A |
|
w/o Telematics Transceiver |
B |
| B | |
GO TO STEP 9 |
|
|
8. |
CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER)) |
(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to DCM (Telematics Transceiver) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-2 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
I262-13 (CANL) - I26-4 (CG) |
| NG | |
GO TO STEP 12 |
|
|
9. |

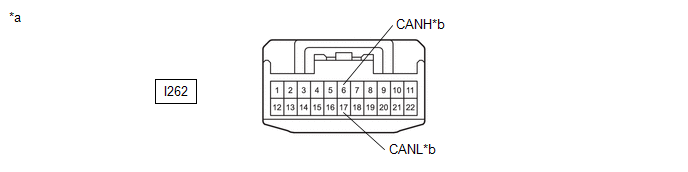

CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY) |

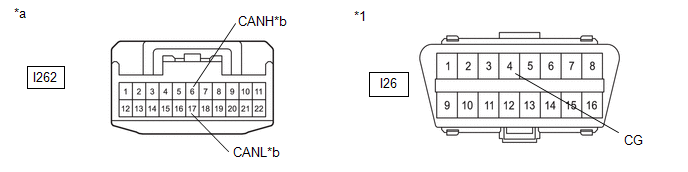

(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Combination Meter Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-6 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
I262-17 (CANL) - I26-4 (CG) |
| OK | |
REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR |
| NG | |
GO TO STEP 13 |
|
10. |
CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |

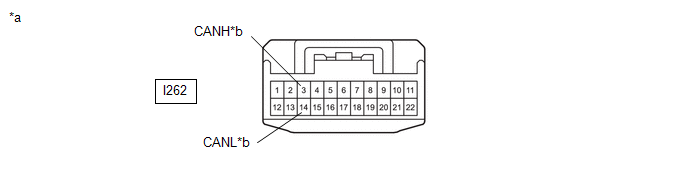

(a) Disconnect the I231 central gateway ECU (network gateway ECU) connector
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Central Gateway ECU (Network Gateway ECU) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-3 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
I262-14 (CANL) - I26-4 (CG) |
| OK | |
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
|
11. |
CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY) |

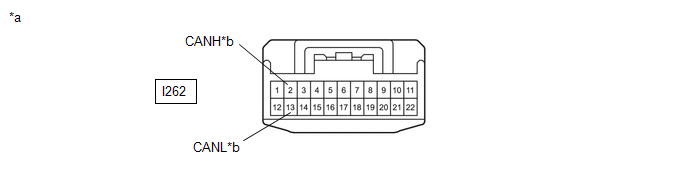

(a) Disconnect the I253 radio and display receiver assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Radio and Display Receiver Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-1 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
I262-12 (CANL) - I26-4 (CG) |
| OK | |
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY |
| NG | |
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY) |
|
12. |
CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER)) |
(a) Disconnect the I200 DCM (telematics transceiver) connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to DCM (Telematics Transceiver) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-2 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
I262-13 (CANL) - I26-4 (CG) |
| OK | |
REPLACE DCM (TELEMATICS TRANSCEIVER) |
| NG | |
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER)) |
|
13. |
CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY) |

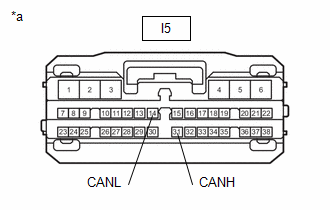

(a) Disconnect the I5 combination meter assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Combination Meter Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-6 (CANH) - I26-4 (CG) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
|
I262-17 (CANL) - I26-4 (CG) |
| OK | |
REPLACE COMBINATION METER ASSEMBLY |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY) |
|
14. |
CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
(a) Disconnect the No. 15 global CAN junction connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Central Gateway ECU (Network Gateway ECU) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-3 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
I262-14 (CANL) - I26-16 (BAT) |
| NG | |
GO TO STEP 19 |
|
|
15. |
CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY) |
(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Radio and Display Receiver Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-1 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
I262-12 (CANL) - I26-16 (BAT) |
| NG | |
GO TO STEP 20 |
|
|
16. |
CHECK VEHICLE TYPE |
(a) Check for vehicle type.
|
Result |
Proceed to |
|---|---|
|
w/ Telematics Transceiver |
A |
|
w/o Telematics Transceiver |
B |
| B | |
GO TO STEP 18 |
|
|
17. |

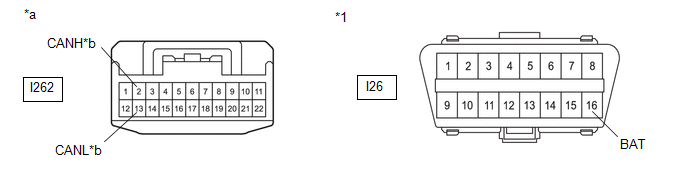

CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER)) |
(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to DCM (Telematics Transceiver) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-2 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
I262-13 (CANL) - I26-16 (BAT) |
| NG | |
GO TO STEP 21 |
|
|
18. |
CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY) |

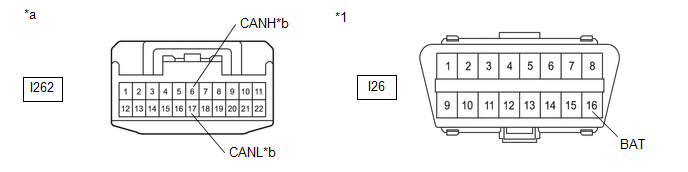

(a) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Combination Meter Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-6 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
I262-17 (CANL) - I26-16 (BAT) |
| OK | |
REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR |
| NG | |
GO TO STEP 22 |
|
19. |
CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |

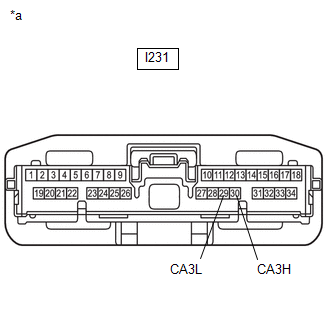

(a) Disconnect the I231 central gateway ECU (network gateway ECU) connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Central Gateway ECU (Network Gateway ECU) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-3 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
I262-14 (CANL) - I26-16 (BAT) |
| OK | |
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
|
20. |
CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY) |
(a) Disconnect the I253 radio and display receiver assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Radio and Display Receiver Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-1 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
I262-12 (CANL) - I26-16 (BAT) |
| OK | |
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY |
| NG | |
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY) |
|
21. |
CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER)) |
(a) Disconnect the I200 DCM (telematics transceiver) connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to DCM (Telematics Transceiver) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-2 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
I262-13 (CANL) - I26-16 (BAT) |
| OK | |
REPLACE DCM (TELEMATICS TRANSCEIVER) |
| NG | |
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER)) |
|
22. |
CHECK FOR SHORT TO B+ IN CAN BUS LINE (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY) |
(a) Disconnect the I5 combination meter assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*1 |
DLC3 |
- |
- |
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Combination Meter Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-6 (CANH) - I26-16 (BAT) |
Cable disconnected from negative (-) auxiliary battery terminal |
6 kΩ or higher |
|
I262-17 (CANL) - I26-16 (BAT) |
| OK | |
REPLACE COMBINATION METER ASSEMBLY |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY) |
|
23. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
(a) Disconnect the No. 15 global CAN junction connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Central Gateway ECU (Network Gateway ECU) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-3 (CANH) - I262-14 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
108 to 132 Ω |
| NG | |
GO TO STEP 28 |
|
|
24. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY) |
(a) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Radio and Display Receiver Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-1 (CANH) - I262-12 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
| NG | |
GO TO STEP 29 |
|
|
25. |
CHECK VEHICLE TYPE |
(a) Check for vehicle type.
|
Result |
Proceed to |
|---|---|
|
w/ Telematics Transceiver |
A |
|
w/o Telematics Transceiver |
B |
| B | |
GO TO STEP 27 |
|
|
26. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER)) |
(a) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to DCM (Telematics Transceiver) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-2 (CANH) - I262-13 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
200 Ω or higher |
| NG | |
GO TO STEP 30 |
|
|
27. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY) |
(a) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Combination Meter Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-6 (CANH) - I262-17 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
108 to 132 Ω |
| OK | |
REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR |
| NG | |
GO TO STEP 31 |
|
28. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
(a) Disconnect the I231 central gateway ECU (network gateway ECU) connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Central Gateway ECU (Network Gateway ECU) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-3 (CANH) - I262-14 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
1 MΩ or higher |
| OK | |
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
|
29. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY) |
(a) Disconnect the I253 radio and display receiver assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Radio and Display Receiver Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-1 (CANH) - I262-12 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
1 MΩ or higher |
| OK | |
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY |
| NG | |
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY) |
|
30. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER)) |
(a) Disconnect the I200 DCM (telematics transceiver) connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to DCM (Telematics Transceiver) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-2 (CANH) - I262-13 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
1 MΩ or higher |
| OK | |
REPLACE DCM (TELEMATICS TRANSCEIVER) |
| NG | |
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER)) |
|
31. |
CHECK FOR SHORT IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY) |
(a) Disconnect the I5 combination meter assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Combination Meter Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-6 (CANH) - I262-17 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
1 MΩ or higher |
| OK | |
REPLACE COMBINATION METER ASSEMBLY |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY) |
|
32. |
CHECK FOR OPEN IN CAN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
(a) Disconnect the central gateway ECU (network gateway ECU) connector.
|
(b) Measure the resistance according to the value(s) in the table below. Standard Resistance:
|
|
| OK | |
REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
|
|
33. |
CHECK FOR OPEN IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
(a) Reconnect the I231 central gateway ECU (network gateway ECU) connector.
(b) Disconnect the No. 15 global CAN junction connector.
(c) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Central Gateway ECU (Network Gateway ECU) |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-3 (CANH) - I262-14 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
108 to 132 Ω |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)) |
|
|
34. |
CHECK FOR OPEN IN CAN BUS LINES (NO. 15 GLOBAL CAN JUNCTION CONNECTOR - COMBINATION METER ASSEMBLY) |
(a) Measure the resistance according to the value(s) in the table below.
|
*a |
Front view of wire harness connector (to No. 15 Global CAN Junction Connector) |
*b |
to Combination Meter Assembly |
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
I262-6 (CANH) - I262-17 (CANL) |
Cable disconnected from negative (-) auxiliary battery terminal |
108 to 132 Ω |
| OK | |
REPLACE NO. 15 GLOBAL CAN JUNCTION CONNECTOR |
|
|
35. |
CHECK FOR OPEN IN CAN BUS LINES (COMBINATION METER ASSEMBLY) |
(a) Reconnect the I262 No. 15 global CAN junction connector.
(b) Disconnect the combination meter assembly connector.
|
(c) Measure the resistance according to the value(s) in the table below. Standard Resistance:
|
|
| OK | |
REPLACE COMBINATION METER ASSEMBLY |
| NG | |
REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (COMBINATION METER ASSEMBLY - NO. 15 GLOBAL CAN JUNCTION CONNECTOR) |
READ NEXT:
Check Bus 4 Line
DESCRIPTION
Symptom
Trouble Area
There are ECUs or sensors that display a communication stop on the bus
diagnostic screen. Or, there are ECUs or sensors tha
Check Bus 5 Line
DESCRIPTION
Symptom
Trouble Area
There are ECUs or sensors that display a communication stop on the bus
diagnostic screen. Or, there are ECUs or sensors tha
Check Bus 6 Line
DESCRIPTION
Symptom
Trouble Area
There are ECUs or sensors that display a communication stop on the bus
diagnostic screen. Or, there are ECUs or sensors tha
SEE MORE:
Headlight LH Circuit (B243900,B243A00)
DESCRIPTION The light control LED ECU supplies internally boosted voltage to the light control LED ECU so that the current supplied to the LED is always maintained at a constant value.
These DTCs are also output when the main body ECU (multiplex network body ECU) detects malfunctions while monitori
Ignition Circuit
DESCRIPTION A direct ignition system is used on this vehicle. The direct ignition system is a 1 cylinder ignition system which ignites one cylinder with one ignition coil. In the 1 cylinder ignition system, one spark plug is connected to the end of the secondary winding. High voltage is generated in
