Toyota Corolla Cross: All Doors LOCK/UNLOCK Functions do not Operate Via Door Key Cylinder

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Door Lock / Power Door Lock Control System / All Doors LOCK/UNLOCK Functions do not Operate Via Door Key Cylinder

DESCRIPTION

The main body ECU (multiplex network body ECU) receives door key cylinder lock or unlock switch signals from the front door lock with motor assembly (for driver door). The main body ECU (multiplex network body ECU) activates the door lock motor on each door according to these signals.

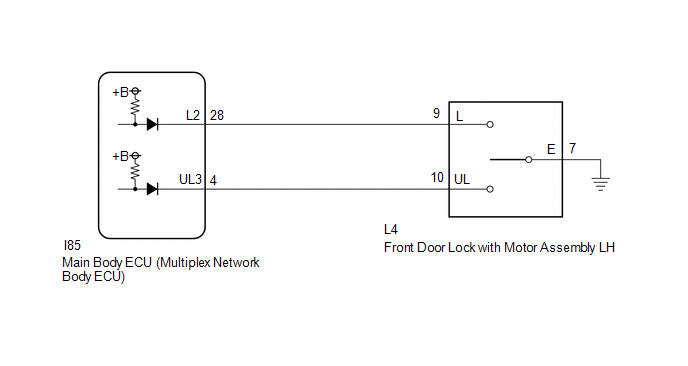

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

If the main body ECU (multiplex network body ECU) is replaced, refer to the Registration.*

  • for HEV Model: Click here
  • for Gasoline Model: Click here
    • *: w/ Start Key System

PROCEDURE

1.

READ VALUE USING GTS (DOOR LOCK SWITCH STATUS BY A MECHANICAL KEY)

(a) Read the Data List according to the display on the GTS.

Body Electrical > Main Body > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

Door Lock Switch Status by a Mechanical Key (D/P Door)

Driver door key-linked switch lock signal

OFF or ON

OFF: Driver door key cylinder not turned to lock position

ON: Driver door key cylinder turned to lock position

-

Door Unlock Switch Status by a Mechanical Key (D Door)

Driver door key-linked switch unlock signal

OFF or ON

OFF: Driver door key cylinder not turned to unlock position

ON: Driver door key cylinder turned to unlock position

-

Body Electrical > Main Body > Data List

Tester Display

Door Lock Switch Status by a Mechanical Key (D/P Door)

Door Unlock Switch Status by a Mechanical Key (D Door)

OK:

On the GTS screen, ON or OFF is displayed for each item according to the table above.

OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

NG

2.

INSPECT FRONT DOOR LOCK WITH MOTOR ASSEMBLY (for Driver Door)

Click here

NG

REPLACE FRONT DOOR LOCK WITH MOTOR ASSEMBLY (for Driver Door)

OK

3.

CHECK HARNESS AND CONNECTOR (FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH - MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) AND BODY GROUND)

(a) Disconnect the L4 front door lock with motor assembly LH connector.

(b) Disconnect the I85 main body ECU (multiplex network body ECU) connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

L4-9 (L) - I85-28 (L2)

Always

Below 1 Ω

L4-10 (UL) - I85-4 (UL3)

Always

Below 1 Ω

L4-7 (E) - Body ground

Always

Below 1 Ω

L4-9 (L) - Body ground

Always

10 kΩ or higher

I85-28 (L2) - Body ground

Always

10 kΩ or higher

L4-10 (UL) - Body ground

Always

10 kΩ or higher

I85-4 (UL3) - Body ground

Always

10 kΩ or higher

OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

    READ NEXT:

     All Doors LOCK/UNLOCK Functions do not Operate Via Master Switch

    DESCRIPTION The main body ECU (multiplex network body ECU) receives switch signals from the multiplex network master switch assembly via LIN communication system. The main body ECU (multiplex network

     All Doors LOCK/UNLOCK Functions do not Operate Via Door Control Switch

    DESCRIPTION The main body ECU (multiplex network body ECU) receives switch signals from the door control switch assembly. The main body ECU (multiplex network body ECU) activates the door lock motor o

     Only Back Door cannot be Opened

    DESCRIPTION The main body ECU (multiplex network body ECU) receives signals from the back door opener switch assembly. Then, the main body ECU (multiplex network body ECU) activates the back door lock
