Toyota Corolla Cross: Diagnosis System

DIAGNOSIS SYSTEM

CHECK WARNING LIGHT

NOTICE:

  • When there is a problem with the tire pressure warning system, the tire pressure warning light blinks at 0.5 second intervals, and illuminates after 1 minute.
  • When the malfunction has been corrected, the tire pressure warning light goes off.
  • When the tire pressure warning light illuminates, immediately check the tire pressure of the tires and adjust them to the specified value.
  • After the ignition switch is turned to ON, the tire pressure warning light illuminates for 3 seconds and then goes off. If the warning light does not illuminate for 3 seconds, proceed to the troubleshooting for the tire pressure warning light circuit.

    Click here

(a) Turn the ignition switch to ON.

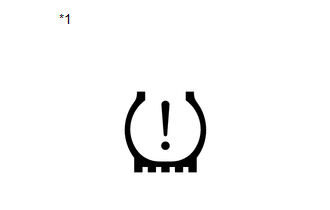

*1

Tire Pressure Warning Light

(b) Check that the tire pressure warning light illuminates for 3 seconds.

WHAT TO CONSIDER WHEN TIRE PRESSURE WARNING LIGHT ILLUMINATES

(a) When the tire pressure warning light does not go off, or when it illuminates during driving, check the tire pressure. If the tire pressure warning light illuminates within several hours after adjusting the tire pressure, a tire may have a slow air leak.

(b) The system is disabled under the following conditions (when the condition returns to normal, the system will work properly).

(1) When all of the tire and wheel assemblies that have tire pressure warning valve and transmitters registered with the tire pressure warning ECU and receiver have not been installed.

(2) When all of the transmitter ID codes are not registered with the tire pressure warning ECU and receiver.

(3) When the tire pressure warning valve and transmitter battery is depleted (Battery life is 10 years).

(c) The system may be disabled under the following conditions (when the condition returns to normal, the system will work properly).

(1) When electric devices or facilities using similar radio frequencies are nearby.

(2) When a wireless device or other equipment operating at a similar frequency is in use in the vehicle.

(3) When a window tint that affects radio wave signals is installed.

(4) When there is a lot of snow or ice on the vehicle, in particular, around the wheels or wheel housing.

(5) When non-genuine wheels are used.

(6) When tire chains are used.

(7) When aftermarket tire repair sealant is used.

CAUTION:

After use of tire repair sealant, replacement of the tire pressure warning valve and transmitter is required to ensure normal system operation. (Normal system operation cannot be ensured by only repairing or replacing the tire.)

TIRE PRESSURE WARNING LIGHT AND INDICATOR CHART

HINT:

The table below indicates the state of the tire pressure warning light after the ignition switch is turned to ON.



Immediately After Turning the Ignition Switch to ON

Always

Warning Light Output Pattern

Multi-information Display Condition

Illuminates for 3 sec.

Illuminates for 4 sec.

Goes off

Illuminates

Blinks

Display

Normal

-

-

-

-

Low tire pressure

-

-

-

*1

System failure

-

-

-

*2

Malfunction Visit Your Dealer

Tire pressure initialization

-

-

-

*3

Setting Pressure Wait a Moment

Tire position identification in progress

-

-

-

Setting Tire Position while driving

ECU connector poorly connected

-

-

-

-

*4

Malfunction Visit Your Dealer

ID certification, automatic ID registration

-

-

-

*2

Setting Wheel Position While Driving

  • *1: "Adjust Pressure" or "Immediately Check tire when Safe" is displayed.

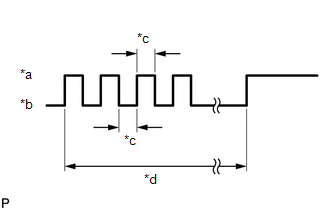

  • *2: Blinks at 0.5 second intervals, and stays illuminated after 1 minute.

    *a

    ON

    *b

    OFF

    *c

    0.5 sec.

    *d

    1 minute

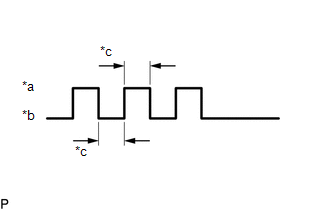

  • *3: Blinks 3 times at 1 second intervals.

    *a

    ON

    *b

    OFF

    *c

    1 sec.

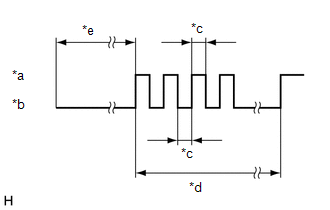

  • *4: Goes off for 10 seconds to check the connection of the ECU connector, and then blinks at 0.5 second intervals, and stays illuminated after 1 minute.

    *a

    ON

    *b

    OFF

    *c

    0.5 sec.

    *d

    1 minute

    *e

    10 sec.

NORMAL MODE DTC

(a) DTCs are stored in the tire pressure warning ECU and receiver and output by using the GTS.
