Toyota Corolla Cross: Only Back Door cannot be Opened
DESCRIPTION
The main body ECU (multiplex network body ECU) receives signals from the back door opener switch assembly. Then, the main body ECU (multiplex network body ECU) activates the back door lock motor.

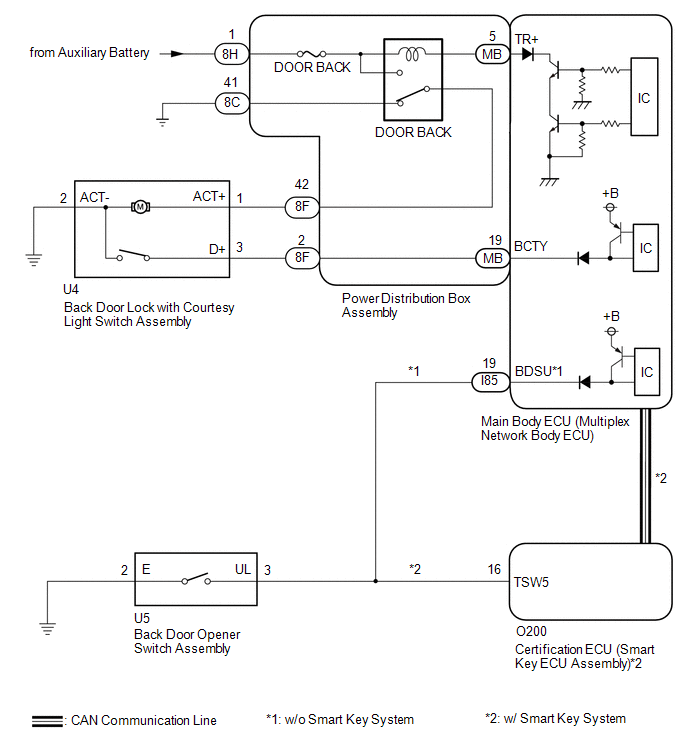

WIRING DIAGRAM
CAUTION / NOTICE / HINT
NOTICE:
- When using the GTS with the vehicle ignition switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.
- Inspect the fuses for circuits related to this system before performing the following procedure.
- If the main body ECU (multiplex network body ECU) is replaced, refer to the Registration.*
- for HEV Model: Click here
.gif)
- for Gasoline Model: Click here
- *: w/ Start Key System
- for HEV Model: Click here
- The power door lock control system uses the CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the power door lock control system after confirming that the communication systems are functioning properly.
Click here
PROCEDURE
|
1. | PERFORM ACTIVE TEST USING GTS (TRUNK LID / BACK DOOR OPEN) |
(a) Perform the Active Test according to the display on the GTS.
Body Electrical > Main Body > Active Test|
Tester Display | Measurement Item |
Control Range | Diagnostic Note |
|---|---|---|---|
|
Trunk Lid / Back Door Open |
Back door lock motor |
OFF/ON | - |
|
Tester Display |
|---|
| Trunk Lid / Back Door Open |
OK:
The back door lock assembly with courtesy light switch unlatches when ON is selected.
|
Result | Proceed to |
|---|---|
|
OK (for HEV Model with Smart Key System) |
A |
| OK (for Gasoline Model with Smart Key System) |
B |
| OK (w/o Smart Key System) |
C |
| NG |
D |
| A |
.gif) | GO TO SMART KEY SYSTEM |
| B |
| GO TO SMART KEY SYSTEM |
| D |
| GO TO STEP 4 |
|
.gif)
| 2. |
INSPECT BACK DOOR OPENER SWITCH ASSEMBLY |
Click here
| NG | | REPLACE BACK DOOR OPENER SWITCH ASSEMBLY |
|
| 3. |
CHECK HARNESS AND CONNECTOR (BACK DOOR OPENER SWITCH ASSEMBLY - MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) AND BODY GROUND) |
(a) Disconnect the U5 back door opener switch assembly connector.
(b) Disconnect the I85 main body ECU (multiplex network body ECU) connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection | Condition |
Specified Condition |
|---|---|---|
|
U5-3 (UL) - I85-19 (BDSU) |
Always | Below 1 Ω |
|
U5-2 (E) - Body ground |
Always | Below 1 Ω |
|
U5-3 (UL) - Body ground |
Always | 10 kΩ or higher |
|
I85-19 (BDSU) - Body ground |
Always | 10 kΩ or higher |
| OK | | REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| NG | | REPAIR OR REPLACE HARNESS OR CONNECTOR |
| 4. |
INSPECT BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY |
Click here
| NG | | REPLACE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH |
|
| 5. |
CHECK HARNESS AND CONNECTOR (BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY - POWER DISTRIBUTION BOX ASSEMBLY AND BODY GROUND) |
(a) Disconnect the U4 back door lock with courtesy light switch assembly connector.
(b) Disconnect the 8F power distribution box assembly connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection | Condition |
Specified Condition |
|---|---|---|
|
U4-1 (ACT+) - 8F-42 | Always |
Below 1 Ω |
|
U4-3 (D+) - 8F-2 | Always |
Below 1 Ω |
|
U4-2 (ACT-) - Body ground |
Always | Below 1 Ω |
|
U4-1 (ACT+) - Body ground |
Always | 10 kΩ or higher |
|
8F-42 - Body ground | Always |
10 kΩ or higher |
|
U4-3 (D+) - Body ground |
Always | 10 kΩ or higher |
|
8F-2 - Body ground | Always |
10 kΩ or higher |
| NG | | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
| 6. |
INSPECT POWER DISTRIBUTION BOX ASSEMBLY |
(a) Remove the power distribution box assembly.
Click here
(b) Remove the main body ECU (multiplex network body ECU) from the power distribution box assembly.
(c) Measure the resistance according to the value(s) in the table below.
|

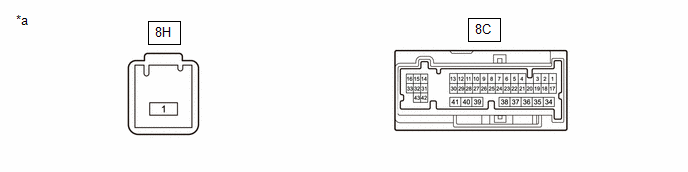

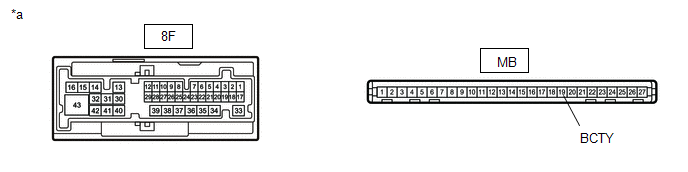

*a | Component without harness connected (Power Distribution Box Assembly) |
- | - |
Standard Resistance:
|
Tester Connection | Condition |
Specified Condition |
|---|---|---|
|
MB-19 (BCTY) - 8F-2 | Always |
Below 1 Ω |
| NG | | REPLACE POWER DISTRIBUTION BOX ASSEMBLY |
|
| 7. |
CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - BATTERY AND BODY GROUND) |
(a) Disconnect the power distribution box assembly connectors.
|
*a | Component without harness connected (Power Distribution Box Assembly) |
- | - |
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection | Switch Condition |
Specified Condition |
|---|---|---|
|
8H-1 - Body ground | Ignition switch off |
11 to 14 V |
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection | Condition |
Specified Condition |
|---|---|---|
|
8C-41 - Body ground | Always |
Below 1 Ω |
| NG | | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
| 8. |
CHECK POWER DISTRIBUTION BOX ASSEMBLY (DOOR BACK RELAY) |
(a) Remove the power distribution box assembly.
Click here
(b) Remove the main body ECU (multiplex network body ECU) from the power distribution box assembly.
(c) Measure the resistance according to the value(s) in the table below.
|

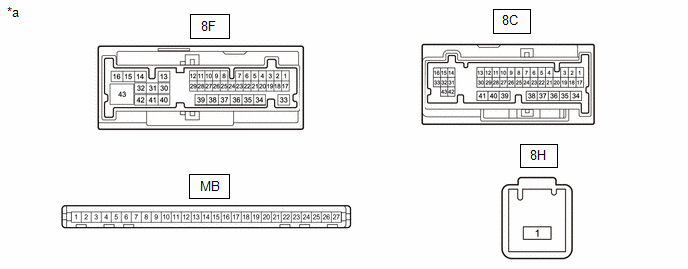

*a | Front view of wire harness connector (to Power Distribution Box Assembly) |
- | - |
Standard Resistance:
|
Tester Connection | Condition |
Specified Condition |
|---|---|---|
|
8C-41 - 8F-42 | Auxiliary battery voltage applied between 8H-1 and MB-5 (TR+) |
10 kΩ or higher |
|
8C-41 - 8F-42 | Auxiliary battery voltage not applied between 8H-1 and MB-5 (TR+) |
Below 1 Ω |
(d) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection | Condition |
Specified Condition |
|---|---|---|
|
8F-42 - Auxiliary battery negative (-) terminal |
Auxiliary battery voltage applied between 8H-1 and MB-5 (TR+) |
11 to 14 V |
| OK | | REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| NG | | REPLACE POWER DISTRIBUTION BOX ASSEMBLY |
