Toyota Corolla Cross: ACC Circuit Short to Ground (B227411)

DESCRIPTION

This DTC is stored when a malfunction in the ACC output circuit is detected. The ACC output circuit is the circuit between terminal ACCD of the certification ECU (smart key ECU assembly) and the ACC relay.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

Note

B227411

ACC Circuit Short to Ground

The ACC relay circuit of the certification ECU (smart key ECU assembly) is malfunctioning. (1-trip detection logic*)

HINT:

When the voltage at terminal ACCD is not at the standard, the system is determined to be malfunctioning.

  • Power distribution box assembly
  • Certification ECU (smart key ECU assembly)
  • Wire harness or connector
DTC Output Confirmation Operation:
  • Wait 10 seconds after turning the ignition switch to ACC or ON, and then wait another 10 seconds after turning the ignition switch off.
  • *: Only detected while a malfunction is present.
Vehicle Condition and Fail-safe Function when Malfunction Detected

Vehicle Condition when Malfunction Detected

Fail-safe Function when Malfunction Detected

If there is a malfunction due to the ACC relay being stuck off, the ACC relay does not turn on even though the ignition switch is ACC.

HINT:

The ignition switch can be turned to ON and the hybrid control system can be started.

-

Related Data List and Active Test Items

DTC No.

Data List and Active Test

B227411

Power Source Control
  • ACC Relay Monitor

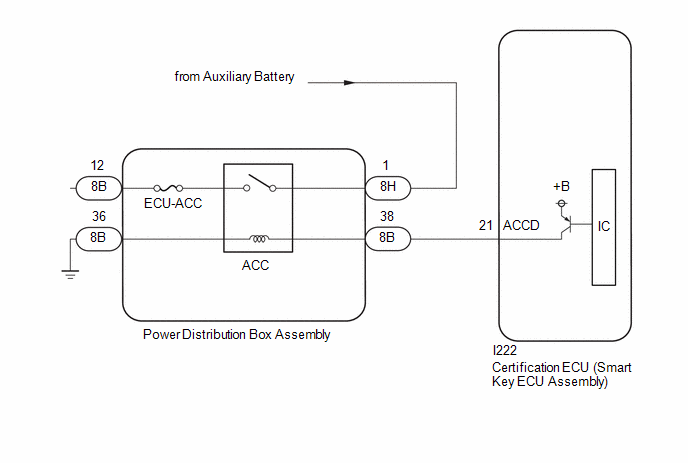

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • When using the GTS with the ignition switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins.

    Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Start Key(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

  • The smart key system (for Start Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart key system (for Start Function) after confirming that the communication systems are functioning properly.

    Click here

  • Inspect the fuses for circuits related to this system before performing the following procedure.
  • Before replacing the certification ECU (smart key ECU assembly), refer to Registration.

    Click here

  • After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - POWER DISTRIBUTION BOX ASSEMBLY - BODY GROUND)

(a) Disconnect the I222 certification ECU (smart key ECU assembly) connector.

(b) Disconnect the 8A power distribution box assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I222-21 (ACCD) - 8B-38

Always

Below 1 Ω

8B-36 - Body ground

Always

Below 1 Ω

I222-21 (ACCD) or 8B-38 - Other terminals and body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

2.

CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(a) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

I222-21 (ACCD) - Body ground

Ignition switch off

1 V or less

I222-21 (ACCD) - Body ground

Ignition switch ACC

8.5 V or higher

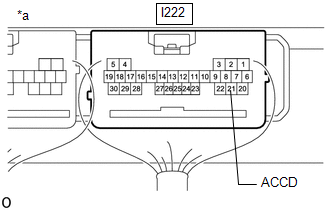

*a

Component with harness connected

(Certification ECU (Smart Key ECU Assembly))

OK

REPLACE POWER DISTRIBUTION BOX ASSEMBLY

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
