Toyota Corolla Cross: VC Output Circuit
DESCRIPTION

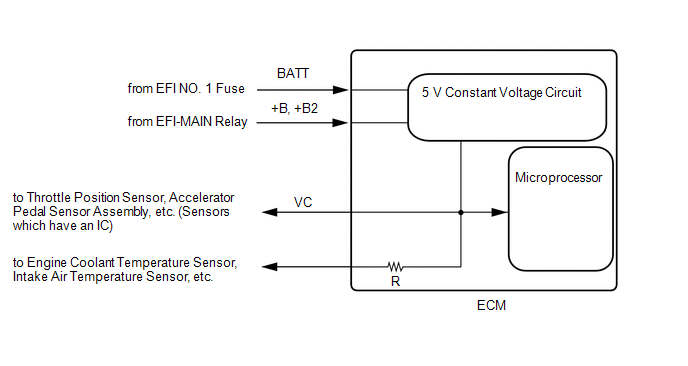

The ECM constantly generates a 5 V power source voltage from the auxiliary battery voltage supplied to the +B, +B2 (BATT) terminals to operate the microprocessor. The ECM also provides this power to the sensors through the VC output circuit.
When the VC circuit has a short circuit, the microprocessor in the ECM and sensors that are supplied power through the VC circuit are deactivated because power is not supplied from the VC circuit. When the system is in this condition, it will not start.
WIRING DIAGRAM
- For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Click here

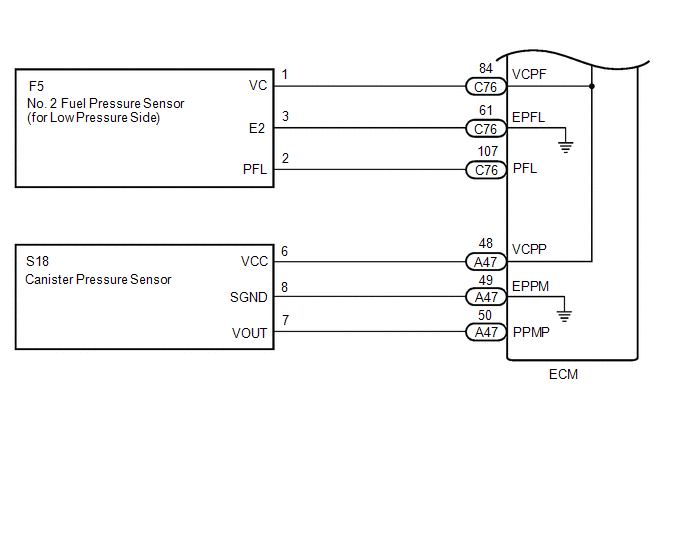

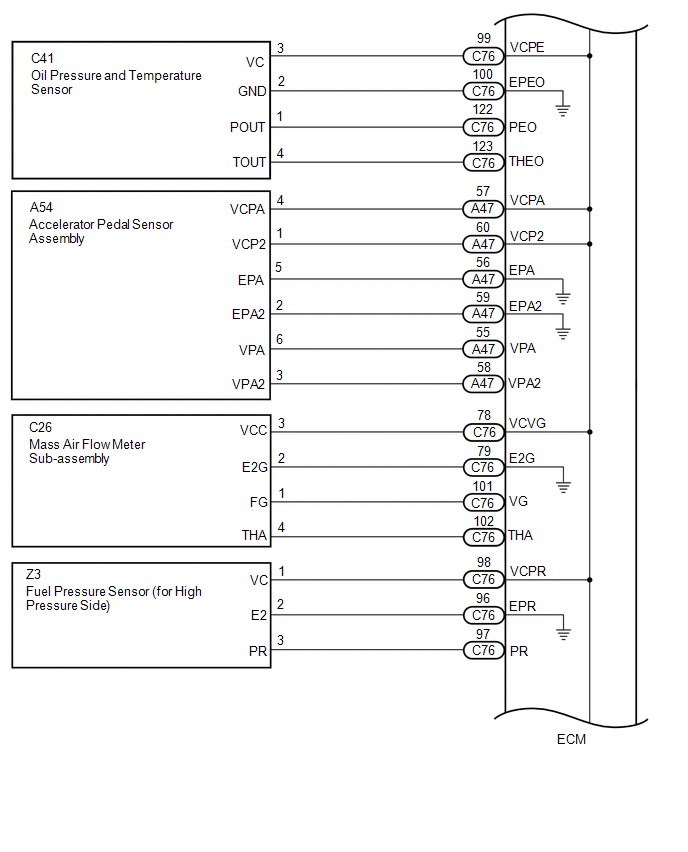

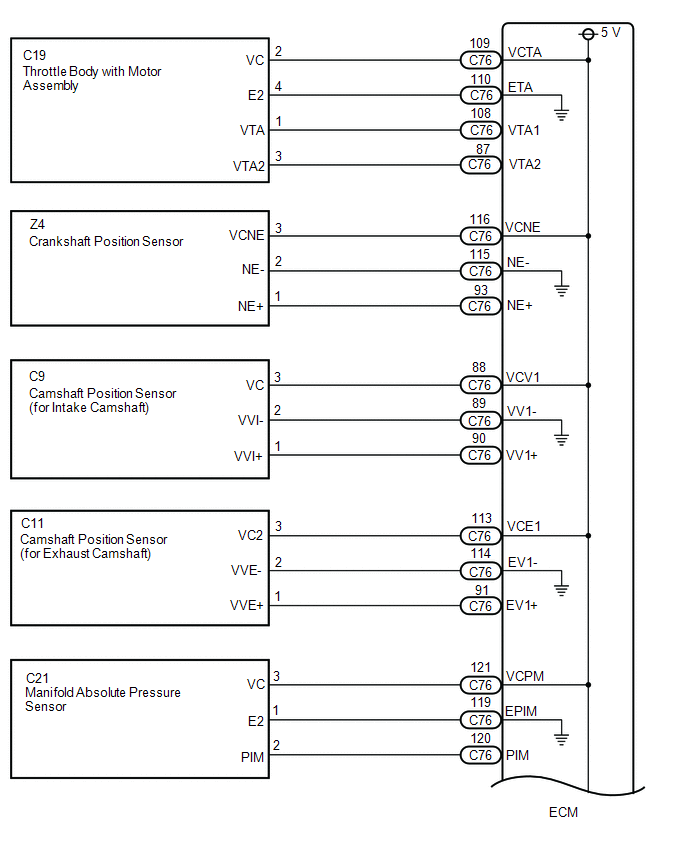

.gif)
- VC Output Circuit
CAUTION / NOTICE / HINT
NOTICE:
Check the fuses for circuits related to this system before performing the following inspection procedure.
PROCEDURE
| 1. |
CHECK CONNECTION BETWEEN GTS AND ECM |
(a) Check the communication between the GTS and ECM.
HINT:
It can be checked using the "Engine" item of the Data List.
|
Result | Proceed to |
|---|---|
|
Communication is not possible |
A |
| Communication is possible |
B |
| B |
.gif) | PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE |
|
.gif)
| 2. |
CHECK EFI NO. 2 FUSE VOLTAGE |
|

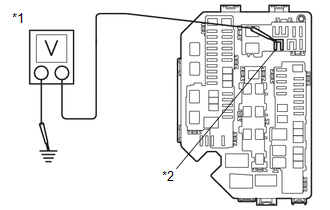

*1 | Engine Room Relay Block and Junction Block Assembly |
|
*2 | EFI NO. 2 Fuse |
(a) Turn the ignition switch to ON.
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection | Condition |
Specified Condition |
|---|---|---|
|
1 (EFI NO. 2 fuse) - Body ground |
Ignition switch ON | 11 to 14 V |
HINT:
- Check the fuse with it installed to the No. 1 engine room relay block assembly.
- If the result is not as specified, since current is not flowing to the +B and +B2 terminals of the ECM, the system may not be started.
| NG | | GO TO ECM POWER SOURCE CIRCUIT |
|
| 3. |
CHECK CONNECTION BETWEEN GTS AND ECM (THROTTLE POSITION SENSOR) |
(a) Disconnect the throttle body with motor assembly connector.
(b) Check the communication between the GTS and ECM.
HINT:
It can be checked using the "Engine" item of the Data List.
|
Result | Proceed to |
|---|---|
|
Communication is not possible |
A |
| Communication is possible |
B |
HINT:
Perform "Inspection After Repair" after replacing the throttle body with motor assembly.
Click here
| B |
| REPLACE THROTTLE BODY WITH MOTOR ASSEMBLY |
|
| 4. |
CHECK CONNECTION BETWEEN GTS AND ECM (ACCELERATOR PEDAL POSITION SENSOR) |
(a) Disconnect the accelerator pedal sensor assembly connector.
(b) Check the communication between the GTS and ECM.
HINT:
It can be checked using the "Engine" item of the Data List.
|
Result | Proceed to |
|---|---|
|
Communication is not possible |
A |
| Communication is possible |
B |
| B |
| REPLACE ACCELERATOR PEDAL SENSOR ASSEMBLY |
|
| 5. |
CHECK CONNECTION BETWEEN GTS AND ECM (CRANKSHAFT POSITION SENSOR) |
(a) Disconnect the crankshaft position sensor connector.
(b) Check the communication between the GTS and ECM.
HINT:
It can be checked using the "Engine" item of the Data List.
|
Result | Proceed to |
|---|---|
|
Communication is not possible |
A |
| Communication is possible |
B |
| B |
| REPLACE CRANKSHAFT POSITION SENSOR
|
|
| 6. |
CHECK CONNECTION BETWEEN GTS AND ECM (CAMSHAFT POSITION SENSOR (FOR INTAKE CAMSHAFT)) |
(a) Disconnect the camshaft position sensor (for intake camshaft) connector.
(b) Check the communication between the GTS and ECM.
HINT:
It can be checked using the "Engine" item of the Data List.
|
Result | Proceed to |
|---|---|
|
Communication is not possible |
A |
| Communication is possible |
B |
| B |
| REPLACE CAMSHAFT POSITION SENSOR (FOR INTAKE CAMSHAFT) |
|
| 7. |
CHECK CONNECTION BETWEEN GTS AND ECM (MANIFOLD ABSOLUTE PRESSURE SENSOR) |
(a) Disconnect the manifold absolute pressure sensor connector.
(b) Check the communication between the GTS and ECM.
HINT:
It can be checked using the "Engine" item of the Data List.
|
Result | Proceed to |
|---|---|
|
Communication is not possible |
A |
| Communication is possible |
B |
| B |
| REPLACE MANIFOLD ABSOLUTE PRESSURE SENSOR |
|
| 8. |
CHECK CONNECTION BETWEEN GTS AND ECM (CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT)) |
(a) Disconnect the camshaft position sensor (for exhaust camshaft) connector.
(b) Check the communication between the GTS and ECM.
HINT:
It can be checked using the "Engine" item of the Data List.
|
Result | Proceed to |
|---|---|
|
Communication is not possible |
A |
| Communication is possible |
B |
| B |
| REPLACE CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT) |
|
| 9. |
CHECK CONNECTION BETWEEN GTS AND ECM (OIL PRESSURE AND TEMPERATURE SENSOR) |
(a) Disconnect the oil pressure and temperature sensor connector.
(b) Check the communication between the GTS and ECM.
HINT:
It can be checked using the "Engine" item of the Data List.
|
Result | Proceed to |
|---|---|
|
Communication is not possible |
A |
| Communication is possible |
B |
| B |
| REPLACE OIL PRESSURE AND TEMPERATURE SENSOR |
|
| 10. |
CHECK CONNECTION BETWEEN GTS AND ECM (FUEL PRESSURE SENSOR (FOR HIGH PRESSURE SIDE)) |
(a) Disconnect the fuel pressure sensor (for high pressure side) connector.
(b) Check the communication between the GTS and ECM.
HINT:
It can be checked using the "Engine" item of the Data List.
|
Result | Proceed to |
|---|---|
|
Communication is not possible |
A |
| Communication is possible |
B |
HINT:
Perform "Inspection After Repair" after replacing the fuel pressure sensor (for high pressure side).
Click here
| B |
| REPLACE FUEL PRESSURE SENSOR (FOR HIGH PRESSURE SIDE)
|
|
| 11. |
CHECK CONNECTION BETWEEN GTS AND ECM (NO. 2 FUEL PRESSURE SENSOR (FOR LOW PRESSURE SIDE)) |
(a) Disconnect the No. 2 fuel pressure sensor (for low pressure side) connector.
(b) Check the communication between the GTS and ECM.
HINT:
It can be checked using the "Engine" item of the Data List.
|
Result | Proceed to |
|---|---|
|
Communication is not possible |
A |
| Communication is possible |
B |
HINT:
Perform "Inspection After Repair" after replacing the No. 2 fuel pressure sensor (for low pressure side).
Click here
| B |
| REPLACE NO. 2 FUEL PRESSURE SENSOR (FOR LOW PRESSURE SIDE)
|
|
| 12. |
CHECK CONNECTION BETWEEN GTS AND ECM (MASS AIR FLOW METER SUB-ASSEMBLY) |
(a) Disconnect the mass air flow meter sub-assembly connector.
(b) Check the communication between the GTS and ECM.
HINT:
It can be checked using the "Engine" item of the Data List.
|
Result | Proceed to |
|---|---|
|
Communication is not possible |
A |
| Communication is possible |
B |
HINT:
Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.
Click here
| B |
| REPLACE MASS AIR FLOW METER SUB-ASSEMBLY |
|
| 13. |
CHECK CONNECTION BETWEEN GTS AND ECM (CANISTER PUMP MODULE) |
(a) Disconnect the canister pump module connector.
(b) Check the communication between the GTS and ECM.
HINT:
It can be checked using the "Engine" item of the Data List.
|
Result | Proceed to |
|---|---|
|
Communication is not possible |
A |
| Communication is possible |
B |
| B |
| REPLACE CANISTER PUMP MODULE for 2WD: Click here for AWD: Click here
|
|
| 14. |
CHECK HARNESS AND CONNECTOR |
(a) Disconnect the throttle body with motor assembly connector.
(b) Disconnect the crankshaft position sensor connector.
(c) Disconnect the camshaft position sensor (for intake camshaft) connector.
(d) Disconnect the camshaft position sensor (for exhaust camshaft) connector.
(e) Disconnect the manifold absolute pressure sensor connector.
(f) Disconnect the oil pressure and temperature sensor connector.
(g) Disconnect the accelerator pedal sensor assembly connector.
(h) Disconnect the mass air flow meter sub-assembly connector.
(i) Disconnect the fuel pressure sensor (for high pressure side) connector.
(j) Disconnect the No. 2 fuel pressure sensor (for low pressure side) connector.
(k) Disconnect the canister pump module connector.
(l) Disconnect the ECM connectors.
(m) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection | Condition |
Specified Condition |
|---|---|---|
|
C76-109 (VCTA) - Body ground |
Always | 10 kΩ or higher |
|
C76-116 (VCNE) - Body ground |
Always | 10 kΩ or higher |
|
C76-88 (VCV1) - Body ground |
Always | 10 kΩ or higher |
|
C76-113 (VCE1) - Body ground |
Always | 10 kΩ or higher |
|
C76-121 (VCPM) - Body ground |
Always | 10 kΩ or higher |
|
C76-99 (VCPE) - Body ground |
Always | 10 kΩ or higher |
|
A47-57 (VCPA) - Body ground |
Always | 10 kΩ or higher |
|
A47-60 (VCP2) - Body ground |
Always | 10 kΩ or higher |
|
C76-78 (VCVG) - Body ground |
Always | 10 kΩ or higher |
|
C76-98 (VCPR) - Body ground |
Always | 10 kΩ or higher |
|
C76-84 (VCPF) - Body ground |
Always | 10 kΩ or higher |
|
A47-48 (VCPP) - Body ground |
Always | 10 kΩ or higher |
|
A47-9 (+B) - 1 (EFI NO. 2 fuse) |
Always | Below 1 Ω |
|
A47-35 (+B2) - 1 (EFI NO. 2 fuse) |
Always | Below 1 Ω |
| OK | | REPLACE ECM
|
| NG | | REPAIR OR REPLACE HARNESS OR CONNECTOR |
