Toyota Corolla Cross: Torque Converter Clutch Pressure Control Solenoid Control Circuit Short to Ground or Open (P275614)

Toyota Corolla Cross (2022-2024) Service Manual / Drivetrain / K120 (cvt) / Continuously Variable Transaxle System / Torque Converter Clutch Pressure Control Solenoid Control Circuit Short to Ground or Open (P275614)

DESCRIPTION

Refer to DTC P275612.

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P275614

Torque Converter Clutch Pressure Control Solenoid Control Circuit Short to Ground or Open

An open or short to ground is detected in the shift solenoid valve SLU circuit for 1 second or more (1-trip detection logic).
  • Transmission valve body assembly (Shift solenoid valve SLU)
  • Transmission wire
  • Harness and connector
  • TCM

Comes on

DTC stored

SAE Code:

P2764

MONITOR DESCRIPTION

This DTC indicates an open or short to ground in the shift solenoid valve SLU circuit. If there is an open or short to ground in the shift solenoid valve SLU circuit, the TCM detects the malfunction, illuminates the MIL and stores this DTC.

MONITOR STRATEGY

Related DTCs

P2764: Torque converter clutch pressure control solenoid (Shift solenoid valve SLU)/Range check (Low current)

Required sensors/Components

Shift solenoid valve SLU

Frequency of operation

Continuous

Duration

1 sec.

MIL operation

Immediate

Sequence of operation

None

TYPICAL ENABLING CONDITIONS

The monitor will run whenever the following DTCs are not stored

None

Solenoid current cut status

Not cut

Ignition switch

ON

Starter

OFF

Auxiliary battery voltage

10.5 V or more

Target current (0.1 sec. or more)

0.2 A or more

TYPICAL MALFUNCTION THRESHOLDS

Solenoid current

Less than 0.08 A

COMPONENT OPERATING RANGE

Solenoid current

0.08 A or more

CONFIRMATION DRIVING PATTERN

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT:

  • After repairs have been completed, clear the DTCs and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
  • When clearing the permanent DTCs, refer to the Clear Permanent DTC procedure.

    Click here

  1. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  2. Turn the ignition switch off and wait for 2 minutes or more.
  3. Turn the ignition switch to ON and turn the GTS on.
  4. Start the engine.
  5. Drive the vehicle and confirm the lock-up on and off conditions according to Road Test. [*1]

    Click here

    HINT:

    [*1]: Normal judgment procedure.

    The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

  6. Stop the vehicle.
  7. Enter the following menus: Powertrain / Transmission / Utility / All Readiness.
  8. Input the DTC: P275614.
  9. Check the DTC judgment result.

    GTS Display

    Description

    NORMAL
    • DTC judgment completed
    • System normal

    ABNORMAL
    • DTC judgment completed
    • System abnormal

    INCOMPLETE
    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    N/A
    • Unable to perform DTC judgment
    • Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE or N/A, perform the normal judgment procedure again.

WIRING DIAGRAM

Refer to DTC P275612.

Click here

CAUTION / NOTICE / HINT

NOTICE:

  • Perform the universal trip to clear permanent DTCs.

    Click here

  • Perform registration and/or initialization when parts related to the continuously variable transaxle system are replaced.

    Click here

  • Check that no DTCs are stored after performing initialization.

    Click here

PROCEDURE

1.

INSPECT TRANSMISSION WIRE (SHIFT SOLENOID VALVE SLU)

(a) Disconnect the transmission wire connector.

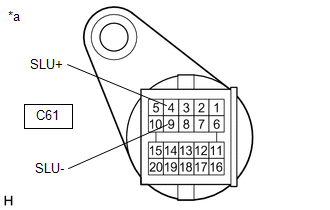

*a

Component without harness connected

(Transmission Wire)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

4 (SLU+) - 9 (SLU-)

20°C (68°F)

5.0 to 5.6 Ω

4 (SLU+) - Body ground and other terminals

Always

10 kΩ or higher

9 (SLU-) - Body ground and other terminals

Always

10 kΩ or higher

(c) Connect the transmission wire connector.

NG

GO TO STEP 4

OK

2.

CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - TCM)

(a) Disconnect the C80 TCM connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C80-6 (SLU+) - C80-5 (SLU-)

20°C (68°F)

5.0 to 5.6 Ω

C80-6 (SLU+) - Body ground and other terminals

Always

10 kΩ or higher

C80-5 (SLU-) - Body ground and other terminals

Always

10 kΩ or higher

(c) Connect the C80 TCM connector.

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (TRANSMISSION WIRE - TCM)
OK

3.

REPLACE TCM

Click here

NEXT

PERFORM REGISTRATION AND INITIALIZATION

for Registration: Click here

for Initialization: Click here

4.

INSPECT TRANSMISSION WIRE

(a) Disconnect the C61 transmission wire connector.

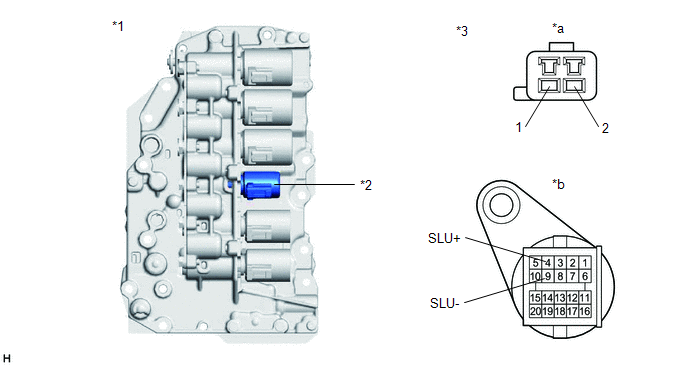

*1

Transmission Valve Body Assembly

*2

Shift Solenoid Valve SLU

*3

Transmission Wire

-

-

*a

Shift Solenoid Valve Side

*b

Wire Harness Connector Side

(b) Disconnect the transmission wire connector from the shift solenoid valve SLU.

Click here

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 (shift solenoid valve side) - 4 (SLU+) (wire harness connector side)

Always

Below 1 Ω

2 (shift solenoid valve side) - 9 (SLU-) (wire harness connector side)

Always

Below 1 Ω

1 (shift solenoid valve side) or 4 (SLU+) (wire harness connector side) - All other terminals

Always

10 kΩ or higher

2 (shift solenoid valve side) or 9 (SLU-) (wire harness connector side) - All other terminals

Always

10 kΩ or higher
NG

REPLACE TRANSMISSION WIRE

OK

5.

REPLACE TRANSMISSION VALVE BODY ASSEMBLY

Click here

NEXT

PERFORM REGISTRATION AND INITIALIZATION

for Registration: Click here

for Initialization: Click here
