Toyota Corolla Cross: Stop And Start System Cancel Switch Assembly

Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / Stop And Start / Stop And Start System Cancel Switch Assembly

Inspection

INSPECTION

PROCEDURE

1. INSPECT ECO RUN CANCEL SWITCH ASSEMBLY (COMBINATION SWITCH ASSEMBLY)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Switch Condition

Specified Condition

I61-8 (ERC) - I61-5 (E)

Eco run cancel switch assembly (combination switch assembly) being pushed and held

Below 50 Ω

Eco run cancel switch assembly (combination switch assembly) not pushed

10 kΩ or higher

If the result is not as specified, replace the eco run cancel switch assembly (combination switch assembly).

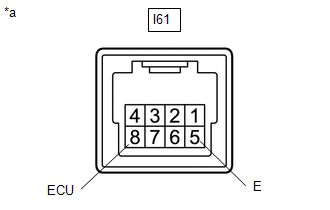

*a

Component without harness connected

(Eco Run Cancel Switch Assembly (Combination Switch Assembly))
