Toyota Corolla Cross: Terminals Of Ecu
TERMINALS OF ECU

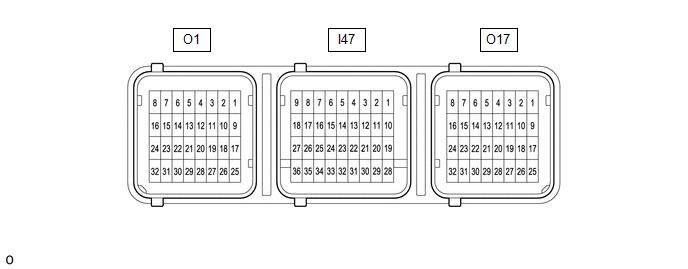

AIRBAG ECU ASSEMBLY
|
Terminal No. | Terminal Symbol |
Destination |
|---|---|---|
| O1-3 |
PLR- | Rear pretensioner squib LH (Rear seat outer belt assembly LH) |
|
O1-4 | PLR+ | |
|
O1-5 | PL+ |
Driver side pretensioner squib (Front seat outer belt assembly LH) |
|
O1-6 | PL- | |
|
O1-7 | ICL- |
Curtain shield squib LH (Curtain shield airbag assembly LH) |
|
O1-8 | ICL+ | |
|
O1-13 | SRL+ |
Rear side squib LH (Rear seat airbag assembly LH) |
|
O1-14 | SRL- | |
|
O1-15 | SFL- |
Front side squib LH (Front seat airbag assembly LH) |
|
O1-16 | SFL+ | |
|
O1-28 | BCL+ |
No. 1 side airbag sensor LH |
|
O1-29 | BCL- | |
|
O1-31 | BBL- |
Side airbag pressure sensor LH |
|
O1-32 | BBL+ | |
|
I47-1 | P2+ |
Front passenger side 2nd squib (Instrument panel passenger without door airbag assembly) |
|
I47-2 | P2- | |
|
I47-3 | P- |
Front passenger side squib (Instrument panel passenger without door airbag assembly) |
|
I47-4 | P+ | |
|
I47-6 | D+ |
Driver side squib (Horn button assembly) |
|
I47-7 | D- | |
|
I47-8 | D2- |
Driver side 2nd squib (Horn button assembly) |
|
I47-9 | D2+ | |
|
I47-12 | DK- |
Driver side knee airbag squib (Lower No. 1 instrument panel airbag assembly) |
|
I47-13 | DK+ | |
|
I47-23*1 | GSW3 |
DCM (Telematics transceiver) |
|
I47-24*2 | GSW2 |
Hybrid vehicle control ECU |
|
I47-25 | GSW |
Main body ECU (Multiplex network body ECU) |
|
I47-26 | CAFH |
CAN communication line |
|
I47-27 | CAFL | |
|
I47-28 | -SR |
Front airbag sensor RH |
|
I47-29 | +SR | |
|
I47-30 | +SL |
Front airbag sensor LH |
|
I47-31 | -SL | |
|
I47-32 | E2 |
Ground |
| I47-33 |
E1 | |
| I47-34 |
P-AB | Passenger airbag OFF indicator (Map light assembly) |
|
I47-35 | PAON |
Passenger airbag ON indicator (Map light assembly) |
|
I47-36 | IGR |
A/BAG-IGR fuse |
|
O17-1 | ICR+ |
Curtain shield squib RH (Curtain shield airbag assembly RH) |
|
O17-2 | ICR- | |
|
O17-3 | PR- |
Front passenger side pretensioner squib (Front seat outer belt assembly RH) |
|
O17-4 | PR+ | |
|
O17-5 | PRR+ |
Rear pretensioner squib RH (Rear seat outer belt assembly RH) |
|
O17-6 | PRR- | |
|
O17-9 | SFR+ |
Front side squib RH (Front seat airbag assembly RH) |
|
O17-10 | SFR- | |
|
O17-11 | SRR- |
Rear side squib RH (Rear seat airbag assembly RH) |
|
O17-12 | SRR+ | |
|
O17-18 | GNDR |
Passenger seat buckle switch (Front seat inner belt assembly RH) |
|
O17-25 | BBR- |
Side airbag pressure sensor RH |
|
O17-26 | BBR+ | |
|
O17-27 | RBE+ |
Passenger seat buckle switch (Front seat inner belt assembly RH) |
|
O17-28 | BCR+ |
No. 1 side airbag sensor RH |
|
O17-29 | BCR- |
- *1: w/ Telematics Transceiver
- *2: for HEV Model
