TERMINALS OF ECU

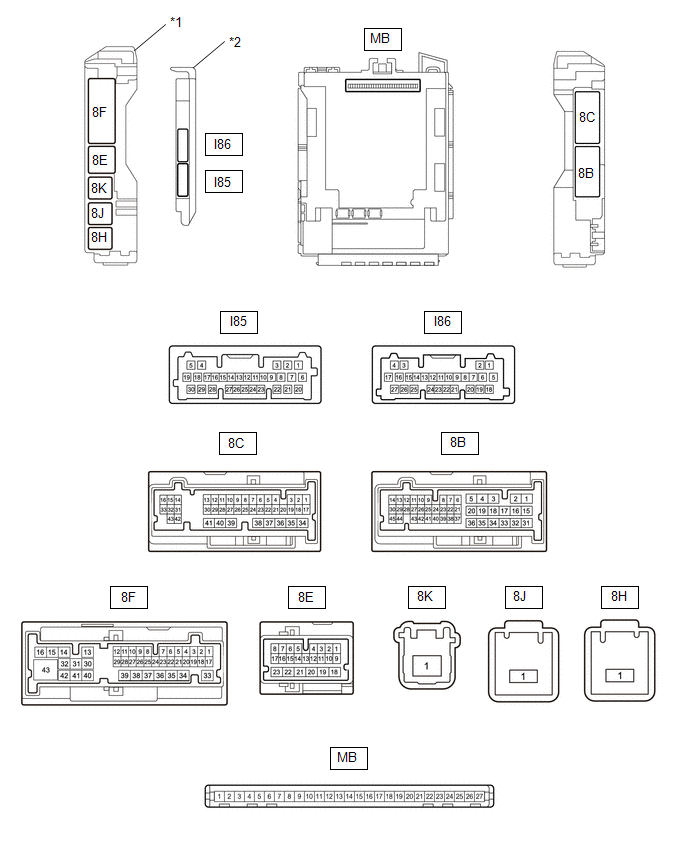

CHECK POWER DISTRIBUTION BOX ASSEMBLY AND MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
|
*1 |
Power Distribution Box Assembly |
*2 |
Main Body ECU (Multiplex Network Body ECU) |
(a) Remove main body ECU (multiplex network body ECU).
Click here .gif)
(b) Connect the power distribution box assembly connectors.
(c) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connectors disconnected.
|
Terminal No. (Symbol) |
Terminal Description |
Switch Condition |
Specified Condition |
|---|---|---|---|
|
MB-13 (GND1) - Body ground |
Ground |
Always |
Below 1 Ω |
|
MB-14 (GND2) - Body ground |
Ground |
Always |
Below 1 Ω |
|
MB-26 (BECU) - Body ground |
Auxiliary battery power supply |
Ignition switch off |
11 to 14 V |
|
MB-27 (IGR) - Body ground |
IG power supply |
Ignition switch ON |
11 to 14 V |
|
Ignition switch off |
Below 1 V |
(d) Install main body ECU (multiplex network body ECU) connector.
Click here
(e) Check for pulses according to the value(s) in the table below.
|
Terminal No. (Symbol) |
Terminal Description |
Switch Condition |
Specified Condition |
|---|---|---|---|
|
8F-17 - Body ground |
LIN communication line |
Ignition switch ON |
Pulse generation |
|
8B-37 - Body ground*1 |
- *1: w/ Sliding Roof System
CHECK FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY (DRIVER DOOR)
(a) Disconnect the L2 front power window regulator motor assembly (driver door) connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
|
Terminal No. (Symbol) |
Terminal Description |
Switch Condition |
Specified Condition |
|---|---|---|---|
|
L2-2 (B) - Body ground |
Auxiliary battery power supply |
Ignition switch off |
11 to 14 V |
|
L2-1 (GND) - Body ground |
Ground |
Always |
Below 1 Ω |
(c) Reconnect the L2 front power window regulator motor assembly (driver door) connector.
(d) Check for pulses according to the value(s) in the table below.
|
Terminal No. (Symbol) |
Terminal Description |
Switch Condition |
Specified Condition |
|---|---|---|---|
|
L2-9 (LIN) - Body ground |
LIN communication line |
Ignition switch ON |
Pulse generation |

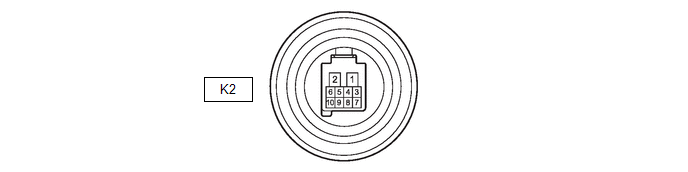

CHECK FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY (FRONT PASSENGER DOOR)
(a) Disconnect the K2 front power window regulator motor assembly (front passenger door) connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
|
Terminal No. (Symbol) |
Terminal Description |
Switch Condition |
Specified Condition |
|---|---|---|---|
|
K2-2 (B) - Body ground |
Auxiliary battery power supply |
Ignition switch off |
11 to 14 V |
|
K2-1 (GND) - Body ground |
Ground |
Always |
Below 1 Ω |
(c) Reconnect the K2 front power window regulator motor assembly (front passenger door) connector.
(d) Check for pulses according to the value(s) in the table below.
|
Terminal No. (Symbol) |
Terminal Description |
Switch Condition |
Specified Condition |
|---|---|---|---|
|
K2-9 (LIN) - Body ground |
LIN communication line |
Ignition switch ON |
Pulse generation |

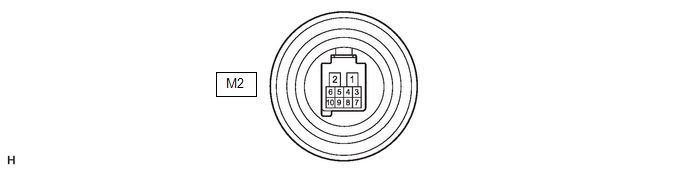

CHECK REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR RH DOOR)
(a) Disconnect the M2 rear power window regulator motor assembly (rear RH door) connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
|
Terminal No. (Symbol) |
Terminal Description |
Switch Condition |
Specified Condition |
|---|---|---|---|
|
M2-2 (B) - Body ground |
Auxiliary battery power supply |
Ignition switch off |
11 to 14 V |
|
M2-1 (GND) - Body ground |
Ground |
Always |
Below 1 Ω |
(c) Reconnect the M2 rear power window regulator motor assembly (rear RH door) connector.
(d) Check for pulses according to the value(s) in the table below.
|
Terminal No. (Symbol) |
Terminal Description |
Switch Condition |
Specified Condition |
|---|---|---|---|
|
M2-9 (LIN) - Body ground |
LIN communication line |
Ignition switch ON |
Pulse generation |

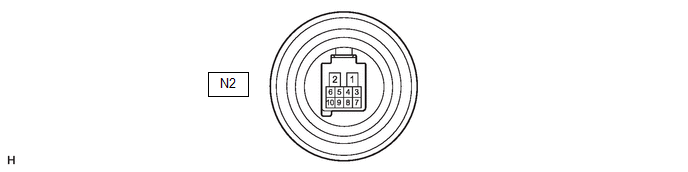

CHECK REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR LH DOOR)
(a) Disconnect the N2 rear power window regulator motor assembly (rear LH door) connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
|
Terminal No. (Symbol) |
Terminal Description |
Switch Condition |
Specified Condition |
|---|---|---|---|
|
N2-2 (B) - Body ground |
Auxiliary battery power supply |
Ignition switch off |
11 to 14 V |
|
N2-1 (GND) - Body ground |
Ground |
Always |
Below 1 Ω |
(c) Reconnect the N2 rear power window regulator motor assembly (rear LH door) connector.
(d) Check for pulses according to the value(s) in the table below.
|
Terminal No. (Symbol) |
Terminal Description |
Switch Condition |
Specified Condition |
|---|---|---|---|
|
N2-9 (LIN) - Body ground |
LIN communication line |
Ignition switch ON |
Pulse generation |

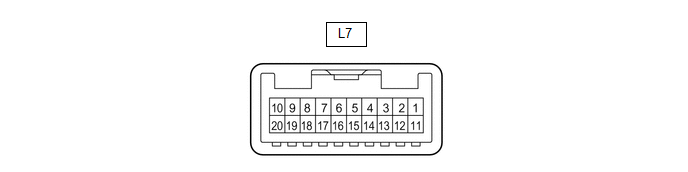

CHECK MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
(a) Disconnect the L7 multiplex network master switch assembly connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
|
Terminal No. (Symbol) |
Terminal Description |
Switch Condition |
Specified Condition |
|---|---|---|---|
|
L7-11 (B) - Body ground |
Auxiliary battery power supply |
Ignition switch off |
11 to 14 V |
|
L7-12 (GND) - Body ground |
Ground |
Always |
Below 1 Ω |
(c) Reconnect the L7 multiplex network master switch assembly connector.
(d) Check for pulses according to the value(s) in the table below.
|
Terminal No. (Symbol) |
Terminal Description |
Switch Condition |
Specified Condition |
|---|---|---|---|
|
L7-17 (LIN1) - Body ground |
LIN communication line |
Ignition switch ON |
Pulse generation |
|
L7-16 (LIN2) - Body ground |

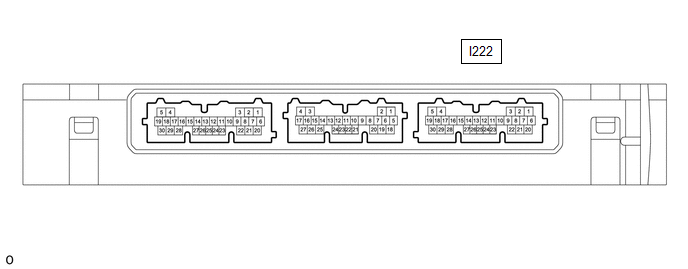

CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (w/ Smart Key System)
(a) Disconnect the I222 certification ECU (smart key ECU assembly) connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
|
Terminal No. (Symbol) |
Terminal Description |
Switch Condition |
Specified Condition |
|---|---|---|---|
|
I222-6 (+B) - Body ground |
Auxiliary battery power supply |
Ignition switch off |
11 to 14 V |
|
I222-29 (E) - Body ground |
Ground |
Always |
Below 1 Ω |
(c) Reconnect the I222 certification ECU (smart key ECU assembly) connector.
(d) Check for pulses according to the value(s) in the table below.
|
Terminal No. (Symbol) |
Terminal Description |
Switch Condition |
Specified Condition |
|---|---|---|---|
|
I222-8 (LIN) - Body ground |
LIN communication line |
Ignition switch ON |
Pulse generation |

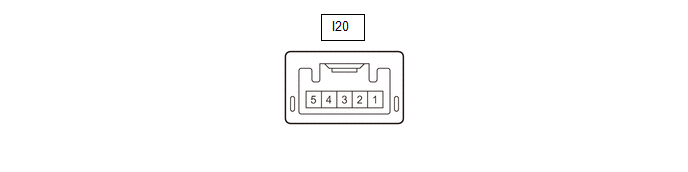

CHECK ID CODE BOX (IMMOBILISER CODE ECU) (w/ Smart Key System)
(a) Disconnect the I20 ID code box (immobiliser code ECU) connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
|
Terminal No. (Symbol) |
Terminal Description |
Switch Condition |
Specified Condition |
|---|---|---|---|
|
I20-1 (+B) - Body ground |
Auxiliary battery power supply |
Ignition switch off |
11 to 14 V |
|
I20-5 (GND) - Body ground |
Ground |
Always |
Below 1 Ω |
(c) Reconnect the I20 ID code box (immobiliser code ECU) connector.
(d) Check for pulses according to the value(s) in the table below.
|
Terminal No. (Symbol) |
Terminal Description |
Switch Condition |
Specified Condition |
|---|---|---|---|
|
I20-2 (LIN1) - Body ground |
LIN communication line |
Ignition switch ON |
Pulse generation |

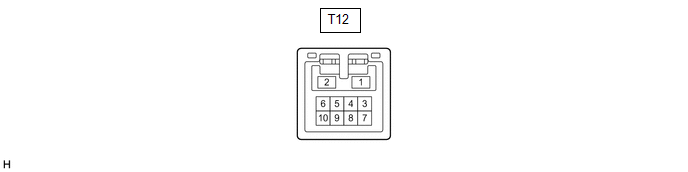

CHECK SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY) (w/ Sliding Roof System)
(a) Disconnect the T12 sliding roof ECU (sliding roof drive gear sub-assembly) connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
|
Terminal No. (Symbol) |
Terminal Description |
Switch Condition |
Specified Condition |
|---|---|---|---|
|
T12-1 (B) - Body ground |
Auxiliary battery power supply |
Ignition switch off |
11 to 14 V |
|
T12-2 (E) - Body ground |
Ground |
Always |
Below 1 Ω |
(c) Reconnect the T12 sliding roof ECU (sliding roof drive gear sub-assembly) connector.
(d) Check for pulses according to the value(s) in the table below.
|
Terminal No. (Symbol) |
Terminal Description |
Switch Condition |
Specified Condition |
|---|---|---|---|
|
T12-7 (MPX1) - Body ground |
LIN communication line |
Ignition switch ON |
Pulse generation |
