Toyota Corolla Cross: Telephone Sub Antenna Circuit Short to Ground (B153711,B153713)
DESCRIPTION
These DTCs are stored when a malfunction occurs in the navigation antenna assembly circuit.
|
DTC No. |
Detection Item |
DTC Detection Condition |
Trouble Area |
|---|---|---|---|
|
B153711 |
Telephone Sub Antenna Circuit Short to Ground |
Navigation antenna assembly impedance (Ω) is lower than the malfunction threshold for 10 seconds or more when the ignition switch is ON (Short circuit) |
|
|
B153713 |
Telephone Sub Antenna Circuit Open |
Navigation antenna assembly impedance (Ω) is higher than the malfunction threshold for 10 seconds or more when the ignition switch is ON (Open circuit) |
|

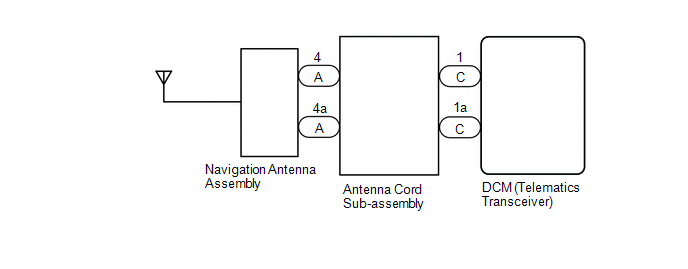

WIRING DIAGRAM
CAUTION / NOTICE / HINT
NOTICE:
- Depending on the parts that are replaced during vehicle inspection or
maintenance, performing initialization, registration or calibration may
be needed. Refer to Precaution for Telematics System.
Click here
.gif)
- When replacing the DCM (telematics transceiver), make sure to replace it with a new one.
PROCEDURE
|
1. |
CLEAR DTC |
(a) Clear the DTCs.
Body Electrical > Telematics > Clear DTCs
|
.gif)
|
2. |
CHECK DTC |
(a) Turn the ignition switch to ON and wait for 10 seconds or more.
(b) Check for DTCs and check that no DTCs are output.
Body Electrical > Telematics > Trouble Codes|
Result |
Proceed to |
|---|---|
|
DTCs are not output |
A |
|
DTC B153711 or B153713 is output |
B |
| A | .gif)
|
USE SIMULATION METHOD TO CHECK |
|
|
3. |
INSPECT NAVIGATION ANTENNA ASSEMBLY |
(a) Remove the navigation antenna assembly.
Click here
(b) Inspect the navigation antenna assembly.
Click here
| NG |
|
REPLACE NAVIGATION ANTENNA ASSEMBLY
|
|
|
4. |
INSPECT ANTENNA CORD SUB-ASSEMBLY |
|
(a) Disconnect the antenna cord sub-assembly from the navigation antenna assembly. |
|
(b) Disconnect the antenna cord sub-assembly from the DCM (telematics transceiver).

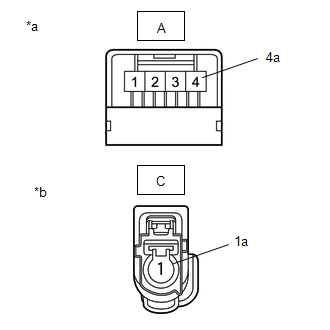

(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A-4 - C-1 |
Always |
Below 1 Ω |
|
A-4a - C-1a |
Always |
Below 1 Ω |
|
A-4 - Body ground |
Always |
10 kΩ or higher |
| NG |
|
REPLACE ANTENNA CORD SUB-ASSEMBLY
|
|
|
5. |
REPLACE DCM(TELEMATICS TRANSCEIVER) |
(a) Replace the DCM (Telematics Transceiver) with a new one.
HINT:
Click here
| NEXT |
|
PERFORM DCM ACTIVATION |
