Toyota Corolla Cross: System Malfunction Message is Displayed on the Multi-information Display

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Theft Deterrent / Keyless Entry / Smart Key System (for Start Function, Gasoline Model) / System Malfunction Message is Displayed on the Multi-information Display

SYSTEM DESCRIPTION

If an abnormal vehicle speed information is detected by the certification ECU (smart key ECUassembly), a system malfunction message is displayed on the multi-information display.

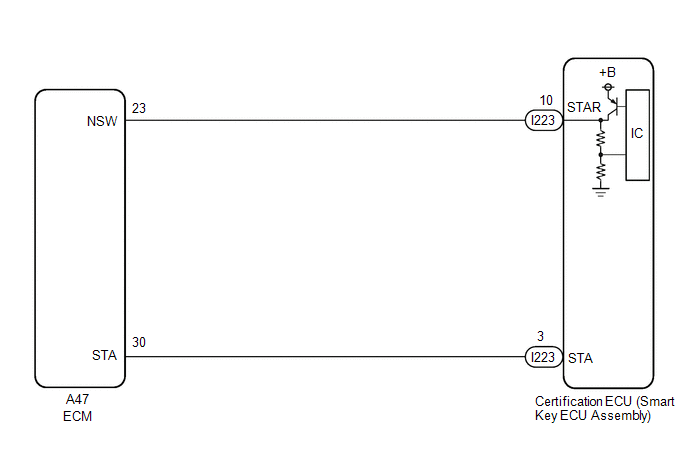

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • When using the GTS with the ignition switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select the vehicle type under manual mode and enter the following menus: Body Electrical / Smart Key. While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.
  • The smart key system (for Start Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart key system (for Start Function) after confirming that the communication systems are functioning properly.

    Click here

  • Before replacing the certification ECU (smart key ECU assembly) or steering lock ECU (steering lock actuator or upper bracket assembly), refer to Registration.

    Click here

PROCEDURE

1.

CHECK FOR DTC

(a) Check for DTCs.

Body Electrical > Smart Key > Trouble Codes Body Electrical > Power Source Control > Trouble Codes

Result

Proceed to

DTCs are not output

A

DTC is output.

B
B

GO TO SMART KEY SYSTEM (for Entry Function) (DIAGNOSTIC TROUBLE CODE CHART)

A

2.

READ VALUE USING GTS (VEHICLE RUNNING CONDITION (LINE))

(a) Read the Data List according to the display on the GTS.

Body Electrical > Power Source Control > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

Vehicle Running Condition (Line)

Vehicle being driven or stopped

Stop or Driving

Stop: Vehicle stopped

Driving: Vehicle being driven at 5 km/h (3 mph) or more

-
Body Electrical > Power Source Control > Data List

Tester Display

Vehicle Running Condition (Line)

OK:

The GTS display changes correctly in response to the vehicle condition.

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

GO TO ELECTRONICALLY CONTROLLED BRAKE SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING)
