Toyota Corolla Cross: RL-Door P/W Motor Component Internal Failure (B232096)

DESCRIPTION

The main body ECU (multiplex network body ECU) communicates with the power window regulator motor assembly (for rear LH door) via LIN communication.

This DTC is stored when a power window regulator motor assembly (for rear LH door) is malfunctioning, or the ECU built into the power window regulator motor assembly (for rear LH door) determines that the fully closed power window position has deviated approximately 20 mm (0.787 in.) or more from the normal position.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B232096

RL-Door P/W Motor Component Internal Failure

  • Either condition is met:
    1. Power window regulator motor assembly (for rear LH door) is malfunctioning
    2. ECU in power window regulator motor assembly (for rear LH door) determines that fully closed power window position has deviated approx. 20 mm (0.787 in.) or more from normal position
  • Incorrect installation of power window components
  • Overheated power window regulator motor assembly (for rear LH door)
  • Power window regulator motor assembly (for rear LH door)
  • Harness or connector

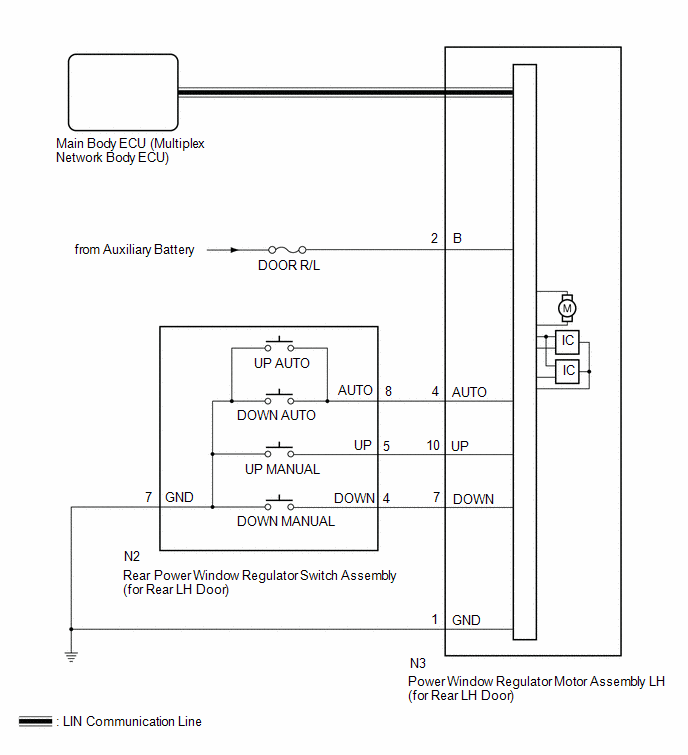

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • Inspect the fuses for circuits related to this system before performing the following procedure.
  • If a power window regulator motor assembly (for rear LH door) has been replaced with a new one, initialize the power window control system.

    Click here

  • If a power window regulator motor assembly (for rear LH door) and door window regulator sub-assembly have been removed and installed, or if a power window regulator motor assembly (for rear LH door) was reused when a door glass or door glass run was replaced, initialize the power window control system.

    Click here

  • The power window control system uses the LIN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the power window control system after confirming that the communication system is functioning properly.

    Click here

PROCEDURE

1.

CLEAR DTC

(a) Clear the DTCs.

Body Electrical > Main Body > Clear DTCs
NEXT

2.

CHECK FOR DTC

(a) Check for DTCs.

Body Electrical > Main Body > Trouble Codes
Result

Proceed to

DTCs are not output

A

B232096 is output

B

A

USE SIMULATION METHOD TO CHECK

B

3.

CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear LH Door) - AUXILIARY BATTERY AND BODY GROUND)

(a) Disconnect the power window regulator motor assembly (for rear LH door) connector.

*a

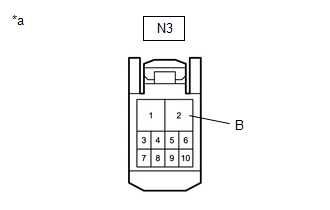

Front view of wire harness connector

(to Power Window Regulator Motor Assembly (for Rear LH Door))

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

N3-2 (B) - Body ground

Ignition switch off

11 to 14 V

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

N3-1 (GND) - Body ground

Always

Below 1 Ω

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

4.

PERFORM ACTIVE TEST USING GTS

(a) Perform the Active Test according to the display on the GTS.

Body Electrical > Main Body > Active Test

Tester Display

Measurement Item

Control Range

Diagnostic Note

RL Door Power Window UP

Rear LH door power window up activate

OFF/ON

-

RL Door Power Window DOWN

Rear LH door power window down activate

OFF/ON

-

Body Electrical > Main Body > Active Test

Tester Display

RL Door Power Window UP

Body Electrical > Main Body > Active Test

Tester Display

RL Door Power Window DOWN

HINT:

Up and down movement does not occur if the arrow is not pressed and held.

OK:

Rear LH door power window operates normally.

NG

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear LH Door)

OK

5.

PERFORM INITIALIZATION

(a) Initialize the power window regulator motor assembly (for rear LH door).

Click here

NEXT

6.

CHECK POWER WINDOW CONTROL SYSTEM

(a) Check that the rear LH door power window operates normally by opening and closing it.

Click here

OK:

Rear LH door power window operates normally.

NG

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear LH Door)

OK

7.

CHECK WHETHER PARTS HAVE BEEN INSTALLED CORRECTLY

(a) Check that the rear LH door power window components are installed correctly.

OK:

Rear LH door power window components are installed correctly.

OK

END (OVERHEATED POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear LH Door) WAS DEFECTIVE)

NG

INSTALL PARTS CORRECTLY
