Toyota Corolla Cross: Right Side Restraints Sensor 5 Signal Plausibility Failure (B009E64)
DESCRIPTION
|
DTC No. | Detection Item |
DTC Detection Condition | Trouble Area |
Warning Indicate | Test Mode / Check Mode |
|---|---|---|---|---|---|
|
B009E64 | Right Side Restraints Sensor 5 Signal Plausibility Failure |
Either condition is met:
|
| Comes on |
Not applicable |

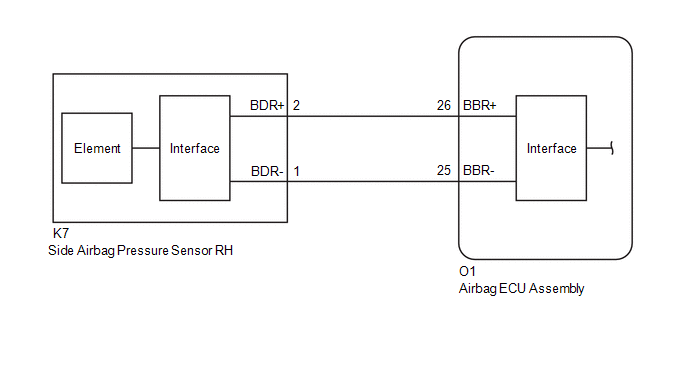

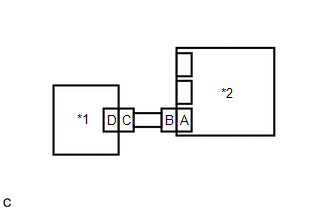

WIRING DIAGRAM
CAUTION / NOTICE / HINT
NOTICE:
- After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.
Click here
.gif)
HINT:
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
Click here
- After replacing the airbag ECU assembly, refer to initialization.
Click here
PROCEDURE
|
1. | CHECK SIDE AIRBAG PRESSURE SENSOR RH |
| (a) Turn the ignition switch off. |
|
(b) Disconnect the cable from the negative (-) battery terminal.
CAUTION:
Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
(c) Interchange the side airbag pressure sensor RH with LH and connect the connectors.
(d) Connect the cable to the negative (-) battery terminal.
(e) Turn the ignition switch to ON, and wait for at least 60 seconds.
(f) Clear the DTCs stored in memory.
Body Electrical > SRS Airbag > Clear DTCs
|
.gif)
| 2. |
CHECK SIDE AIRBAG PRESSURE SENSOR RH |
(a) Turn the ignition switch off.
(b) Turn the ignition switch to ON, and wait for at least 60 seconds.
(c) Check for DTCs.
Body Electrical > SRS Airbag > Trouble Codes| Result |
Proceed to |
|---|---|
| B009E64 is output |
A |
| B009B64 is output |
B |
| B009B64 and B009E64 are not output |
C |
HINT:
Codes other than DTCs B009E64 and B009B64 may be output at this time, but they are not related to this check.
(d) Turn the ignition switch off.
(e) Disconnect the cable from the negative (-) battery terminal.
CAUTION:
Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
(f) Return the side airbag pressure sensor RH and LH to their original positions and connect the connectors.
| A |
.gif) | REPLACE AIRBAG ECU ASSEMBLY |
| B |
| REPLACE SIDE AIRBAG PRESSURE SENSOR RH |
| C |
| USE SIMULATION METHOD TO CHECK |
